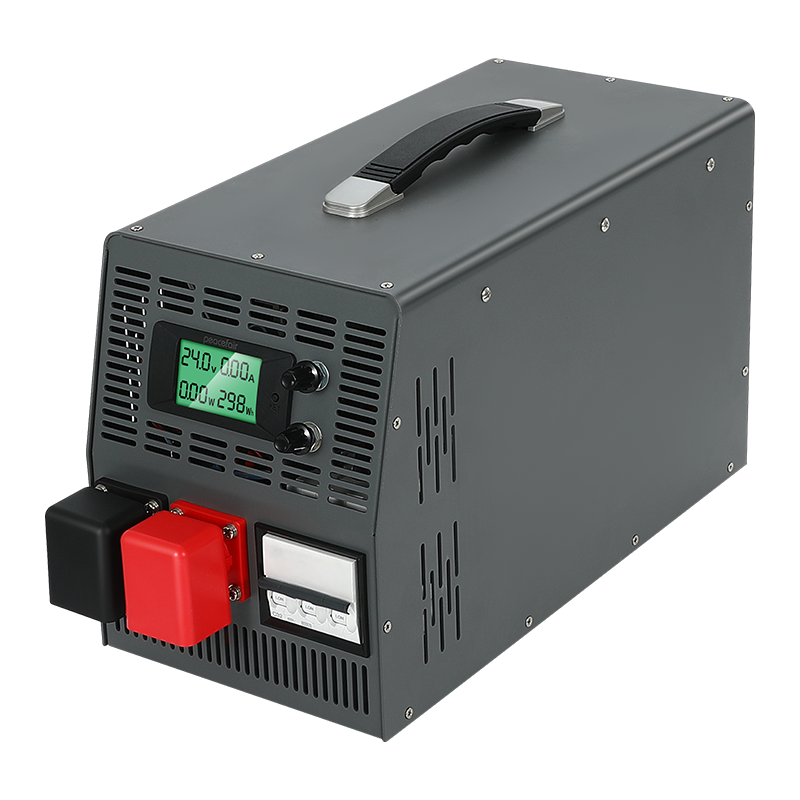

WEHO SP-6000 Series: 6000W High-Power Smart Modbus DC Power Supply for Industrial Automation
The WEHO SP-6000 is a high-performance, single-output switching power supply engineered to deliver an immense 6000W of reliable DC power. Designed with an adaptive input range, it operates at full 100% capacity on 195-265VAC and supports 50% output on 95-190VAC. This series provides a versatile array of DC outputs from 24V up to 220V, boasting an outstanding peak energy efficiency of 93%. What truly sets this model apart is its native support for the RS485 Modbus communication protocol, allowing for seamless digital monitoring and central control. Furthermore, it offers extensive linear adjustability for both voltage and current outputs. The entire system is housed in a robust 432 x 179 x 242 mm industrial casing, weighing 9 kg, and supports highly customizable add-ons including an isolated 12V/0.5A auxiliary power supply and dry-contact alarm signals.
- توضیحات
خلاصه
Single output: Power 6000W
Input voltage: 95-190VAC(output current 50%)195-265VAC(output current 100%)
مشخصات عمومی
| مدل | SP-6000-24 | SP-6000-30 | SP-6000-36 | SP-6000-48 | SP-6000-60 | SP-6000-110 | SP-6000-220 |
| ولتاژ DC | 24 ولت | 30 ولت | 36 ولت | 48 ولت | 60 ولت | 110 ولت | 220 ولت |
| جریان نامی | 225A | 180A | 150A | 112.5A | 90A | 49.1A | 24.5A |
| محدوده فعلی | 0-225A | 0-180A | 0-150A | 0-112.5A | 0-90A | 0-49.1A | 0-24.5A |
| قدرت نامی | 6000W | ||||||
| ریپل | 500 میلی ولت | 500 میلی ولت | 500 میلی ولت | 600 میلی ولت | 600 میلی ولت | 1000 میلی ولت | 1500mV |
| Constant current optimum range | 12-24 ولت | 15-30 ولت | 18-36 ولت | 24-48V | 30-60V | 55-110 ولت | 110-220 ولت |
| Rated voltage accuracy | ± 1.0% | ||||||
| مقررات خط | ± 1.0% | ||||||
| مقررات بار | ± 1.0% | ||||||
| Startup&Rise Time | 1500mS,700mS/230VAC (Fully loaded) | ||||||
| محدوده ولتاژ | 95-190VAC(Output Current 50%),195-265VAC(Output Curent 100%) | ||||||
| محدوده فرکانس | 45Hz-65Hz | ||||||
| ضریب قدرت | PF≥0.99/230VAC (Fully loaded) | ||||||
| Efficiency(MAX) | 90% | 90% | 91.5% | 92% | 92% | 92.5% | 93% |
| جریان AC | <56A | ||||||
| جریان نشتی | <3.0mA/240VAC | ||||||
| اتصال کوتاه | When the constant current is entered and the voltage is lower than 10%of the rated voltage,the output is shut down andlocked after 1 second,and recovers after restarting. | ||||||
| Over current | The user can set the over-current value to delay the oufput for 5 seconds and then shut down the output,and then resume after restarting. | ||||||
| Overpressure | Users can set the overvoltage value to shut down the output voltage,and restore after restart. | ||||||
| بیش از حد دما | Shut down the output,automatically recover or restart after the temperature drops. | ||||||
| Output voltage adjustment | 0-26.4 ولت | 0-33 ولت | 0-39.6V | 0-52.8 ولت | 0-66 ولت | 0-121 ولت | 0-242 ولت |
| Output constant current adjustment | 0-225A | 0-180A | 0-150A | 0-112.5A | 0-90A | 0-49.1A | 0-24.5A |
| 485 Communications | MODBUS Communication Protocol | ||||||
| lsolated auxiliary | 12V0.5A (Need customization) | ||||||
| Output remote switch | Default power on,high level power off (5V-12V)(Need customization) | ||||||
| Alarm signal output | Power Good Signal (Dry Contact≤36V,0.1A) (Need customization) | ||||||
| دمای عملیاتی | -20-+60 درجه سانتیگراد | ||||||
| رطوبت عملیاتی | -20-90%RH No condensation | ||||||
| دما و رطوبت ذخیره سازی | -40-+85℃,10-95%RHNo condensation | ||||||
| مقاومت در برابر لرزش | 10-500Hz,2G10 Min/cycle,X、Y、Z60 Min | ||||||
| مقاومت عایق | Input to Output:100Mhms/500VDC/25° C/70%RH | ||||||
| مقاومت در برابر فشار | I/P-O/P:2KVAC IP-FG:2KVACO/P-FG:0.5KVAC | ||||||
| Size | 432×179×242mm | ||||||
| وزن خالص | 9kg | ||||||
ابعاد کلی (میلی متر)
Product Advantages & Application Fields
Strategic Advantages
Smart Digital Integration: The built-in RS485 Modbus interface enables effortless integration into centralized PLC and SCADA systems, allowing engineers to perform real-time diagnostics and automated power scaling across the factory floor.
Advanced Fault Management: Features highly intelligent, customizable protection logic. The over-current defense can be programmed to delay for 5 seconds before shutdown, effectively absorbing massive startup surges from heavy motors without causing unnecessary system resets.
Full-Spectrum Adjustability: Offers exceptional tuning precision from zero to maximum capacity for both voltage and constant current, making it a highly adaptable primary power source rather than just a static converter.
Primary Application Fields
Renewable Energy & EV Infrastructure: The massive 6000W output and constant current stability make it ideal for high-capacity electric vehicle charging stations and battery formation testing.
Heavy Manufacturing Networks: Provides the unyielding, high-amperage backbone required for automated robotic assembly lines, heavy-duty CNC machining centers, and industrial material handling systems.
