Wide Input 12V/24V to 5V 30A 150W DC to DC Converter

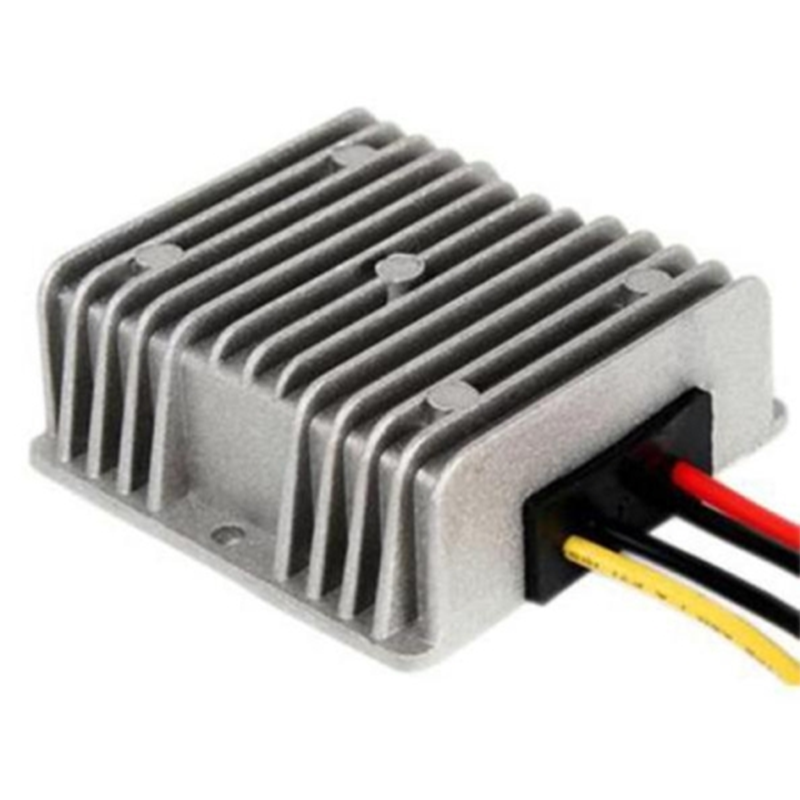

The WEHO WH-C12240530 is a high-performance power module that transforms a 9V-32VDC wide-range input into a steady 5VDC output. Delivering 150W of power at 30A, it maintains an impressive 94% efficiency and a low no-load consumption of less than 0.3W. The unit is built with a rugged 74x74x32mm aluminum casing that is fully waterproof, relying on natural cooling for silent and reliable operation. It includes comprehensive safety protocols, such as over-current protection that triggers at 120% load and short-circuit protection limited to 18A. Engineered for durability, it boasts a lifespan of over 100,000 hours, making it a “set and forget” solution for high-drain 5V applications in mixed-voltage systems.

E-mail: [email protected]

Nos professionnels vous répondront dans les plus brefs délais.

Demander un devis

Description

Résumé
Rated output: power 150W
Tension d'entrée : 12/24 V CC
Wire Length: 160mm±10mm

General specification

Modèle	WH-B122403
Puissance de sortie nominale (W)	72W
Rated input voltage	12-24 VCC
Rated output voltage	5 V CC
Plage de tension d'entrée	9V-32VCC
No-load power consumption	< 0.3W
Efficacité	94%
Output voltage	5 V CC
Output current	30A
Tolérance de tension	1%
Load regulation	3%
Wave(mvp-p)	100mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ
Protection contre les surintensités	In the case of rated output, if the current exceeds 120% of the rated current, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears.
Protection de court-circuit	Equivalent to a maximum current of 18A and an output voltage of 0V
Input—output	Non isolé
Étanche	Entièrement scellé et étanche
Dimension	74×74×32mm
N.W.	300g
Cooling method	Méthode naturelle
Rated temperature rise	45 ℃
Fiabilité	>100 000 heures
Wire indicator	Input positive (red), input output negative (black), output positive (yellow), lead length=160mm ± 10mm
