12V to 19V 10A 190W DC to DC Converter

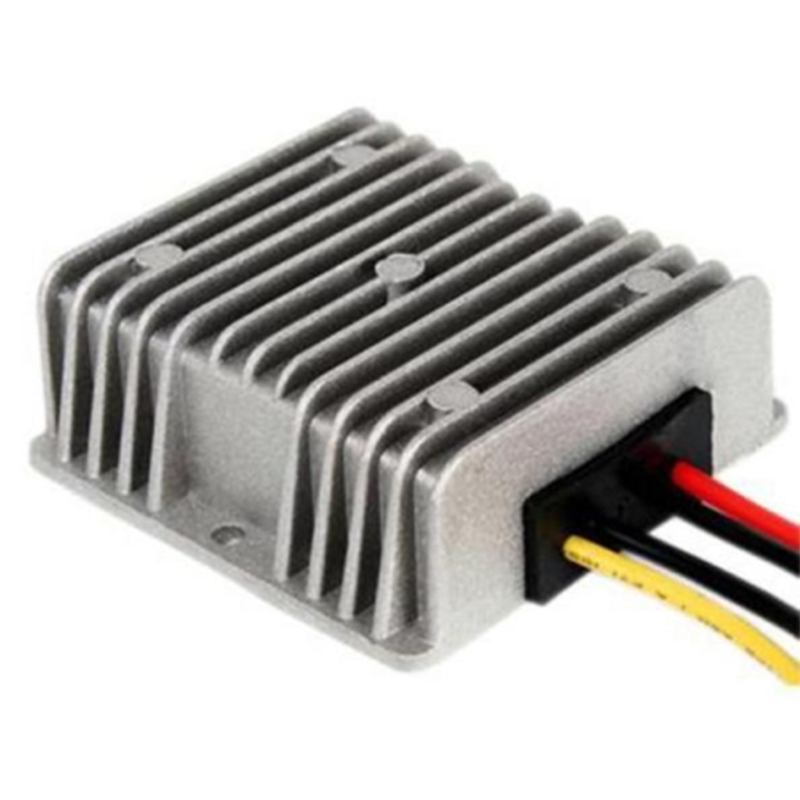

The WEHO WH-B121910 is an exceptionally reliable DC-DC boost converter, engineered to convert a 12VDC source into a precise 19VDC output for specialized equipment. Delivering 190W of power at a constant 10A, it maintains a high conversion efficiency of 93% and a very low no-load power consumption of less than 0.1W. The unit is housed in a rugged aluminum chassis measuring $74\times74\times32mm$, utilizing natural cooling to maintain optimal operating temperatures even under full load. Designed for versatility, this fully waterproof and non-isolated module is built to withstand vibration and environmental stress. It includes advanced safety features like over-current protection with automatic recovery and requires a 15A fuse for short-circuit protection. With an MTBF of over 100,000 hours, it provides a “set and forget” solution for high-drain 19V systems.
이메일: [email protected]
우리 전문가들이 가능한 한 빨리 답변해 드리겠습니다.
- 설명
요약
Rated output: power 120W
입력 전압: 12VDC
Wire Length: 160mm±10mm
General specification
| 모델 | WH-B121905 |
| Rated output powe (W) | 120W |
| Rated input voltage (V) | 12VDC |
| Rated output voltage (V) | 24VDC |
| Input voltage range (V) | 9V-16VDC |
| Input starting voltage (V) | 10VDC 100%Load |
| No-load power consumption (W) | < 0.1W |
| 능률 | 93% |
| Output voltage (V) | 24VDC |
| Output current (A) | 5a |
| Voltage tolerance | 1.5% |
| 부하 조절 | 2% |
| 웨이브(MVP-p) | |
| Over current protection | In the case of rated output, if the current exceeds 120% of the rated current, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears. |
| Output short circuit protection | Input requires adding a 15A fuse |
| Input—output | 비격리 |
| 방수복 | 완전 밀봉 및 방수 |
| 차원 | 74×74×32mm |
| NW. | 300g |
| Cooling method | 자연적인 방법 |
| Rated temperature rise (℃) | 45℃ |
| 신뢰할 수 있음 | >100000h |
| Wire indicator | Input positive (red)，input/output negative (black)，output positive (yellow) length=160mm±10mm |
PIC and installation dimensions
