12V to 19V 15A 285W DC to DC Converter

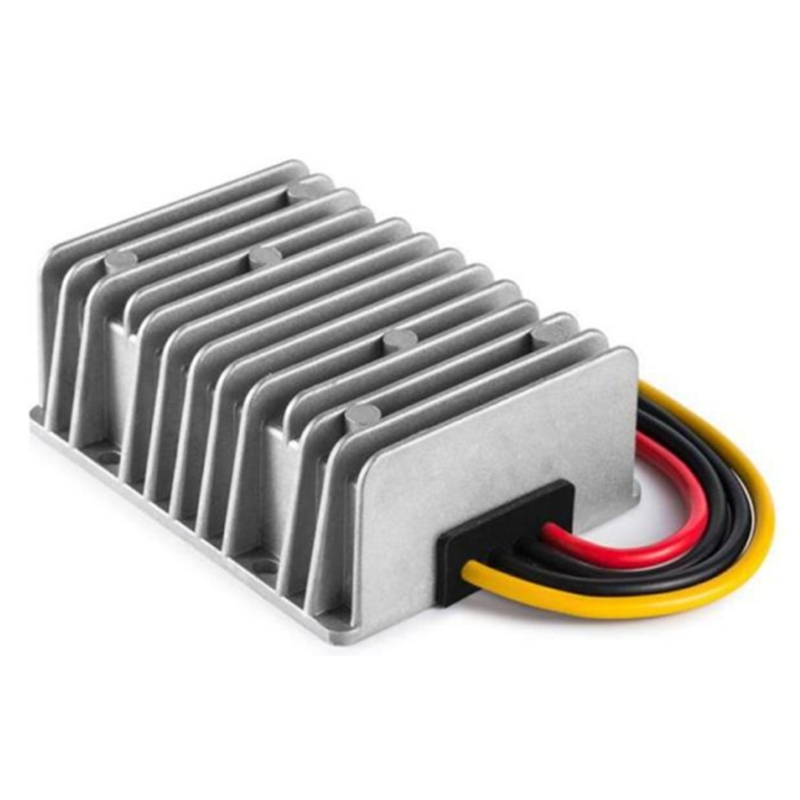

The WEHO WH-B121915 is a high-capacity DC-DC boost converter designed for professional applications requiring a stable 19VDC output from a 12VDC input. It delivers a substantial 285W of power at 15A, maintaining an impressive 93% efficiency to keep thermal levels low. To handle higher power throughput, it features a larger $100\times80\times38mm$ aluminum heat-sink frame, which relies on natural convection cooling for silent and reliable operation. The unit is fully sealed and waterproof, making it the perfect choice for outdoor or mobile installations where durability is paramount. Safety is ensured through an auto-recovering over-current protection system that triggers when the load exceeds 120% of its rating. With a standby power draw of under 0.1W and a lifespan exceeding 100,000 hours, it is engineered for long-term, high-performance power delivery.
이메일: [email protected]
우리 전문가들이 가능한 한 빨리 답변해 드리겠습니다.
- 설명
요약
Rated output: power 285W
입력 전압: 12VDC
Wire Length: 160mm±10mm
General specification
| 모델 | WH-B121915 |
| Rated output power | 285W |
| Rated input voltage | 12VDC |
| Rated output voltage | 19VDC |
| 입력 전압 범위 | 9V-16VDC |
| Input starting voltage | 9VDC 100%Load |
| No-load power consumption | < 0. 1W |
| 능률 | 93% |
| 출력 전압 | 19VDC |
| Output current | 15a |
| Voltage tolerance | 1.5% |
| 부하 조절 | 3% |
| Wave(mvp-p) | 400mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ |
| Over current protection | In the case of rated output, if the current exceeds 120% of the rated current, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears. |
| Input-output | 비격리 |
| 방수복 | 완전 밀봉 및 방수 |
| 차원 | 100×80×38mm |
| NW. | 500g |
| Cooling method | 자연적인 방법 |
| Rated temperature rise | 45℃ |
| 신뢰할 수 있음 | >100000h |
| Wire indicator | Input positive (red), input negative (black), output negative (black), output positive (yellow), lead length=160mm±10mm |
PIC 및 설치 치수
