| Description | Model | WH-B2415 |
| Rated Output Power (W) | 360W | |
| Rated Input Voltage (V) | 12VDC | |
| Rated Output Voltage (V) | 24VDC | |
| Input | Voltage range (V) | 10V-16VDC |
| Starting Voltage (V) | 10VDC 100﹪load | |
| No-load Power Consumption (W) | ＜ 0.15W | |
| Efficiency | 93％ | |
| Output | Voltage (V) | VOUT: 24VDC |
| Current (A) | 10A | |
| Voltage Tolerance | 1.5％ | |
| Load Regulation | 3％ | |
| Wave (MVP-p) | 300mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ | |
| Protection | Over Current Protection | In the case of rated output, if the rated current is greater than 120%, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears. |
| Short Circuit Protection | Input must add 25A fuse | |
| Insulation | Input-Output | non-isolated |
| Waterproof | Fully sealed and waterproof | |

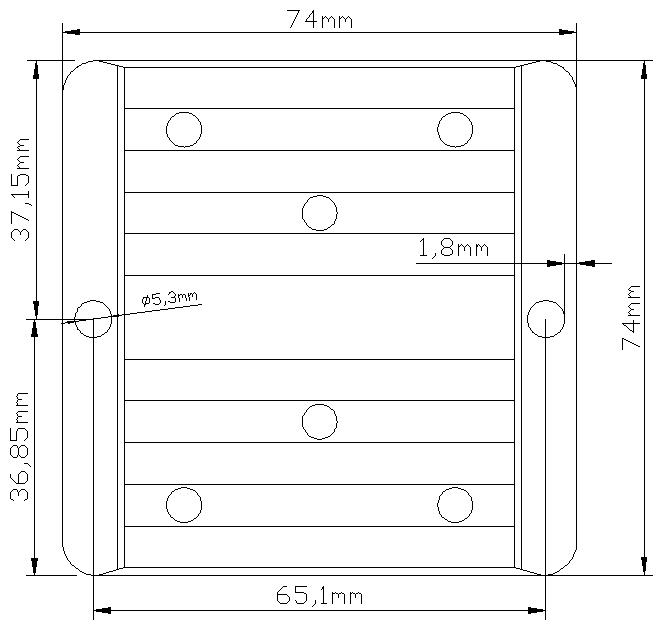

| Others | Dimension | 74*74*32mm |
| Cooling Method | Natural Method | |
| Rated Temperature rise (℃) | 45℃ | |
| Reliability | ＞100000h | |
| Wire Indicator | Input Positive (Red)，Input/Output Negative (Black)，Output Positive (Yellow) Length=160mm± 10mm □ |

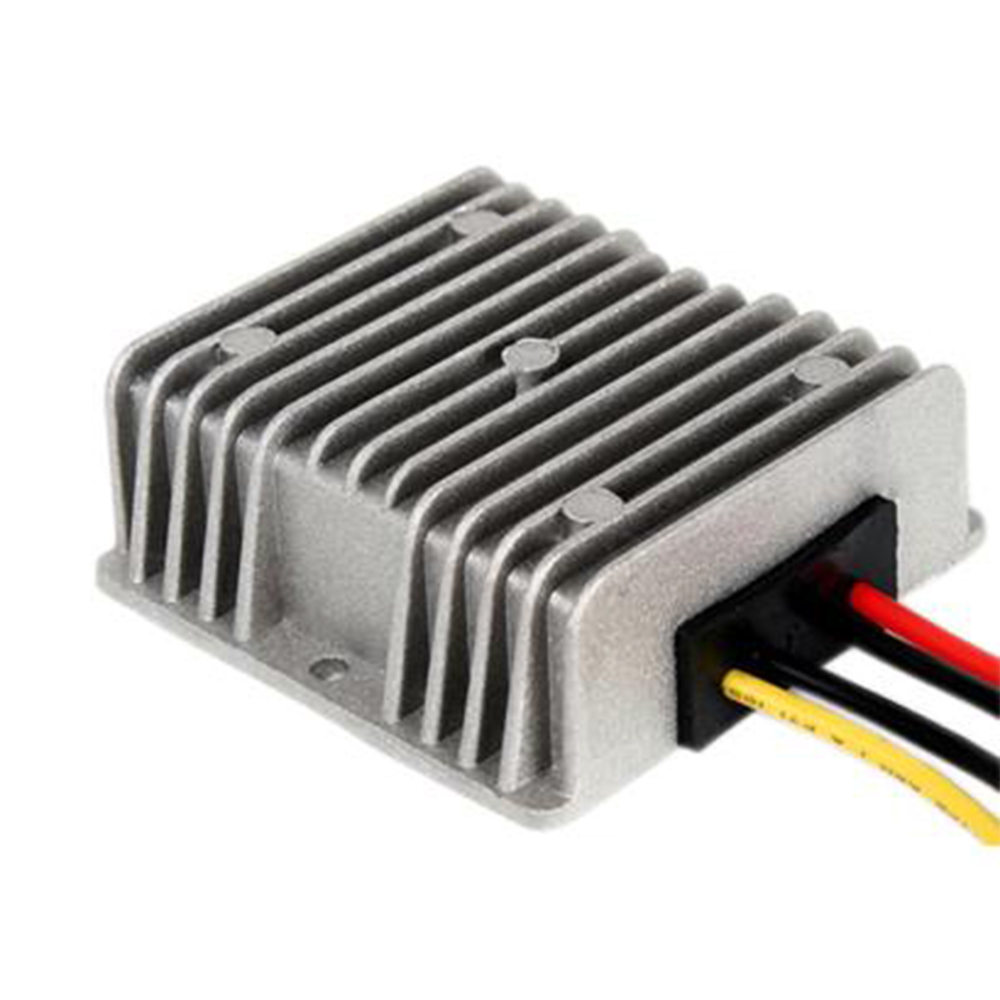

12V to 24V 15A DC-DC Boost Buck Car Converter
This is an industrial-grade buck-boost automotive converter with power conversion efficiency over 90%, 100% waterproof and shock-proof protection, small and lightweight, and easy to install.
Widely used in different industries. Commonly used in automobiles, electric power, monitoring systems, railway signals and other fields.
If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.
- Description
● Industrial grade 24VDC to 12VDC boost-buck car converters is widely used in different industries due to their reliability and efficiency. Commonly used in automobiles, electric power, monitoring systems, railway signals, and other fields.
● The Boost-buck car converter has a power conversion efficiency of over 90%.
● The Boost-buck Car Converter is equipped with a range of protection functions for voltage, current, temperature, and short circuits.
● This Boost-buck Car Converter is largely utilized in vehicles, security systems, telecommunications, medical equipment, instrumentation, etc.
● Boost-buck automotive converter with 100% water and shock protection
● Boost-buck car converters are significantly smaller and lighter than other models
● The Boost-buck Car Converter will automatically reset itself once the device has resumed functioning as normal.
● This Boost-buck Car Converter in-vehicle converter is more dependable and trustworthy
● The installation of a buck-boost in-vehicle converter is very simple
