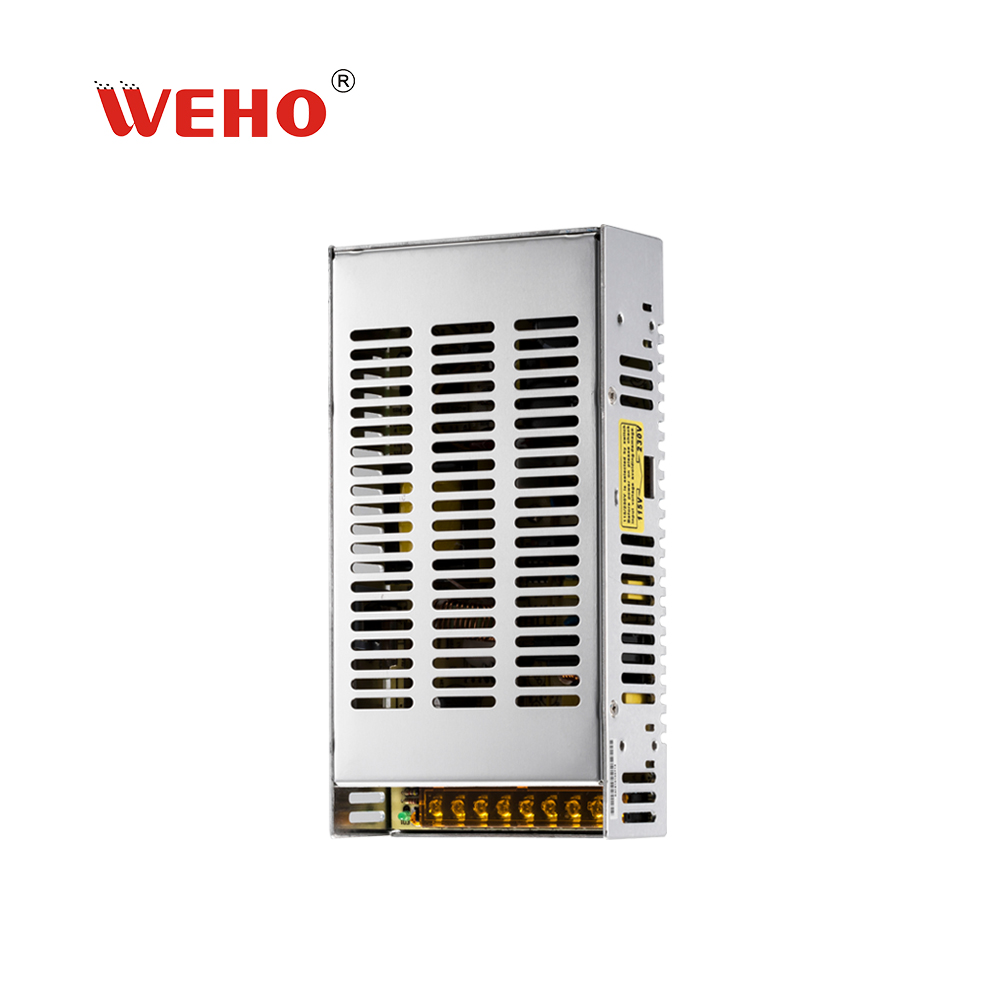

Constant voltage 201W 5v 12v 15v 24v 48v 36V S-201 Switching power supply

WeHo’s S-201 Switching Power Supply is a reliable switching power supply with high-quality material, durable, and safe to use.

A Switching Power Supply that can keep the voltage stable.

Great switching power supply for  LED Strip Light Screen Lighting Monitor Power Supply

110V/220V AC input range, cooling by free air convection.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model S-201-5 S-201-12 S-201-15 S-201-24 S-201-27 S-201-48
Output DC Voltage 5V 12V 15V 24V 27V 48V
Voltage Tolerance ±2% ±1% ±1% ±1% ±1% ±1%
Rated Current 40A 16.5A 13.4A 8.3A 7.4A 4.2A
Current Range 0~40A 0~16.5A 0~13.4A 0~8.3A 0~7.4A 0~4.2A
Rated Power 200W 198W 201W 199.2W 199.8W 201.6W
Ripple & Noise 120mvp-p 150mvp-p 150mvp-p 180mvp-p 180mvp-p 200mvp-p
DCvoltage ADJ.Range ±10% ±10% ±10% ±10% ±10% ±10%
Input Voltage Range 90~132VAC/180~264VAC (selected by switch), 2 55~373VDC
Frequency 47~63HZ
AC Current 4.5A/115VAC
Efficiency 78% 80% 80% 82% 82% 83%
Inrush Current Cold start current 25A/115VAC, 50A/230VAC
Leakage Current < 3.5mA/240VAC
Overload Rated output power105%~135%  start overload protection
Protection Over Voltage protection type: rated current limit,auto-recovery after fault condition is removed
6.8~8.2V 15.6~17.8V 18.6~20.8V 30.6~33.2V 33.2~35.6V 54.8~56.6V
Protection type: hiccup mode, auto-recovery after fault condition is removed
Over Temperature inner temperature≥85°C start over temperature protection
Protection mode: cutoff output, auto-recovery after temperature becomes normal
Environment Working Temp, Humidity -10°C ~ +60°C, 20%~90%RH
Storage temp, Humidity -20°C ~ +85°C, 10%~95%RH non-condensing
Withstand Vibration 10~500HZ, 2G 10min/1cycle, period for 60 minutes, each axes
Safety Withstand Voltage I/P-O/P: 1.5KVAC
Isolated Resistance I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC
Fit Standard Safety Standard Fit UL1012
EMC Standard FitEN55022, CLASS

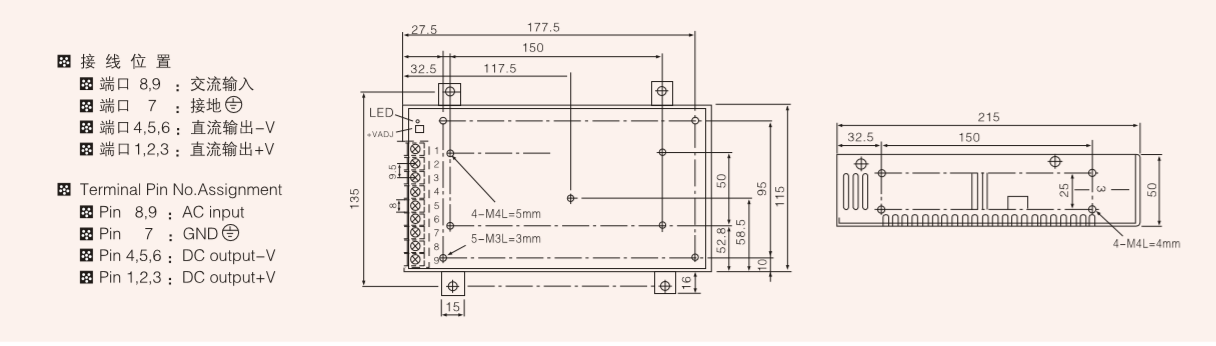

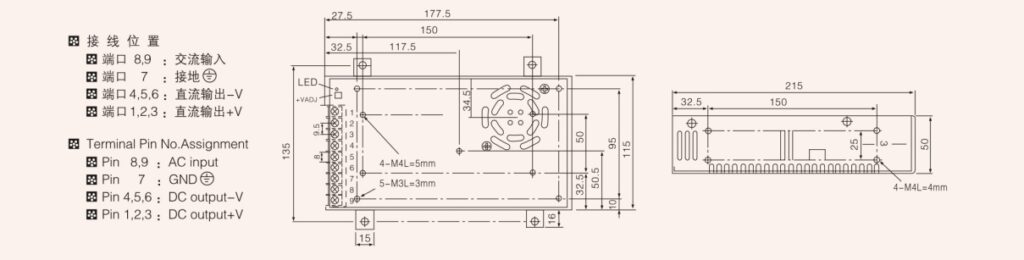

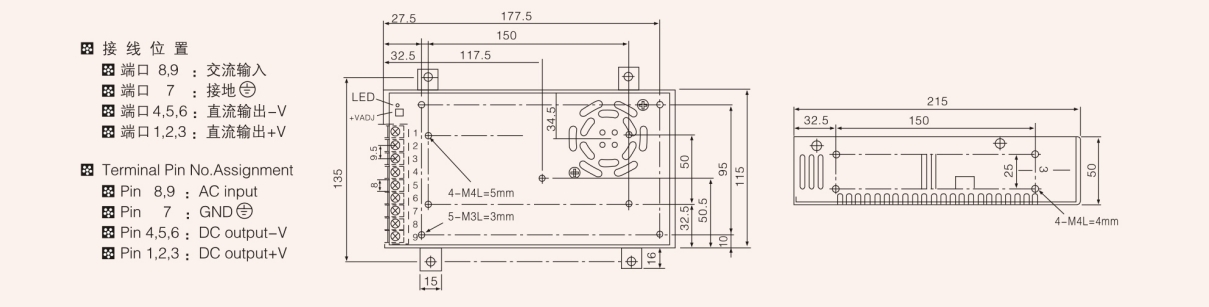

Others Dimension 215*115*50mm (L*W*H)
Weight/Packing 0.87kg/24pcs/22kg/0.049 m³/1.72CUFT

The white cap on the connector is for safety precautions against electric shock and dust protection.

This product has a thick shell made of die-cast aluminum, which is a good conductor of heat.

This product has an EMI filter device built in, causing no signal interference, and is therefore widely used in diverse fields.

This product input voltage:90-132/180-264VAC, changed by the switch.

This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions.

Internal Exhaust low voice Fan for quick cooling.

The product has completed the 100% full load aging test.

Product size: 215*115*50mm (L * W * H)
