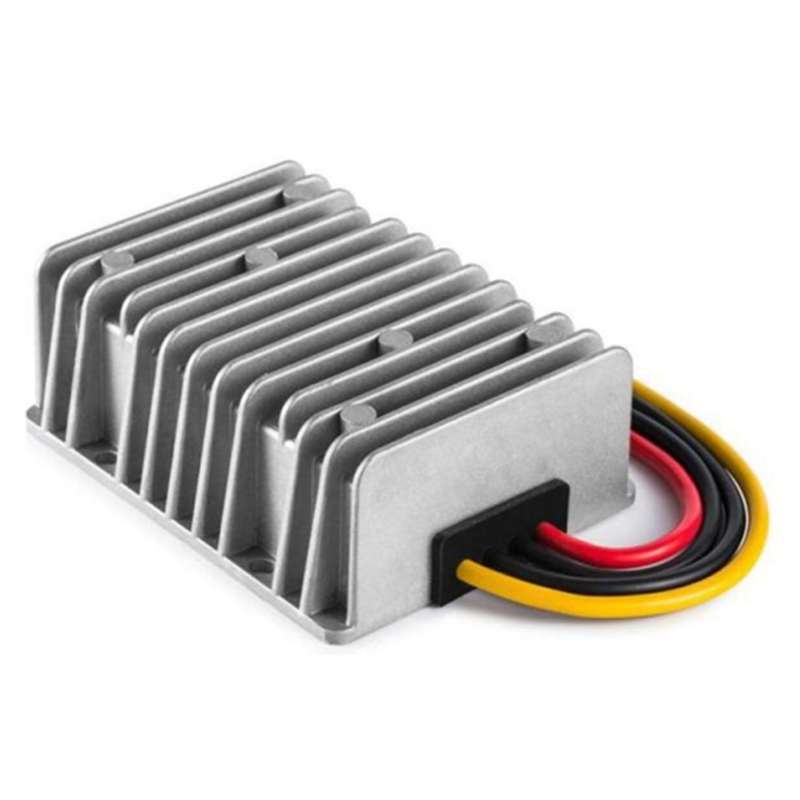

60V-72V to 12V 15A 180W DC to DC Converter
The WEHO WH-C60721215 is a reliable power module engineered to convert a high-voltage source (range 40V-90VDC) into a precise 12VDC output for specialized equipment. Delivering 180W of power at a constant 15A, it maintains a high conversion efficiency of 95% and a low no-load power consumption of less than 3W. The unit is housed in a rugged 74x74x32mm aluminum chassis, utilizing natural cooling to maintain optimal operating temperatures even under full load. Designed for versatility, this fully waterproof and non-isolated module is built to withstand vibration and environmental stress. It includes advanced safety features like over-current protection with automatic recovery and short-circuit protection. With an MTBF of over 100,000 hours, it provides a stable and efficient power source for industrial-grade systems.
ईमेल: [email protected]
हमारे पेशेवर आपको यथाशीघ्र जवाब देंगे।.
- विवरण
सारांश
Rated output: power 180W
Input voltage: 60VDC
Wire Length: 160mm±10mm
General specification
| नमूना | WH-C60721215 |
| Rated Output Power (W) | 180W |
| Rated input voltage (V) | 60VDC |
| Rated output voltage (V) | 12VDC |
| Input voltage range (V) | 30V-90VDC |
| Starting voltage (V) | 30VDC 100%Load |
| No-load power consumption (W) | < 3W |
| क्षमता | 96% |
| Output voltage (V) | 12VDC |
| Output current (A) | 15A |
| Voltage tolerance | 1% |
| लोड विनियमन | 3% |
| Wave (MVP-p) | < 250mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ |
| Over current protection | In the case of rated output, if the current exceeds 120% of the rated current, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears. |
| शॉर्ट सर्किट सुरक्षा | Equivalent to a maximum current of 22A and an output voltage of 0V |
| Input-output | Non-isolated |
| Waterproof | Fully sealed and waterproof |
| आयाम | 100×80×38mm |
| N.W. | 300g |
| Cooling method | Natural Method |
| Rated temperature rise (℃) | 45℃ |
| Reliability | >100000h |
| Wire indicator | Input positive (red), input negative (black), output negative (black), output positive (yellow), lead length=160mm±10mm |
PIC and installation dimensions
