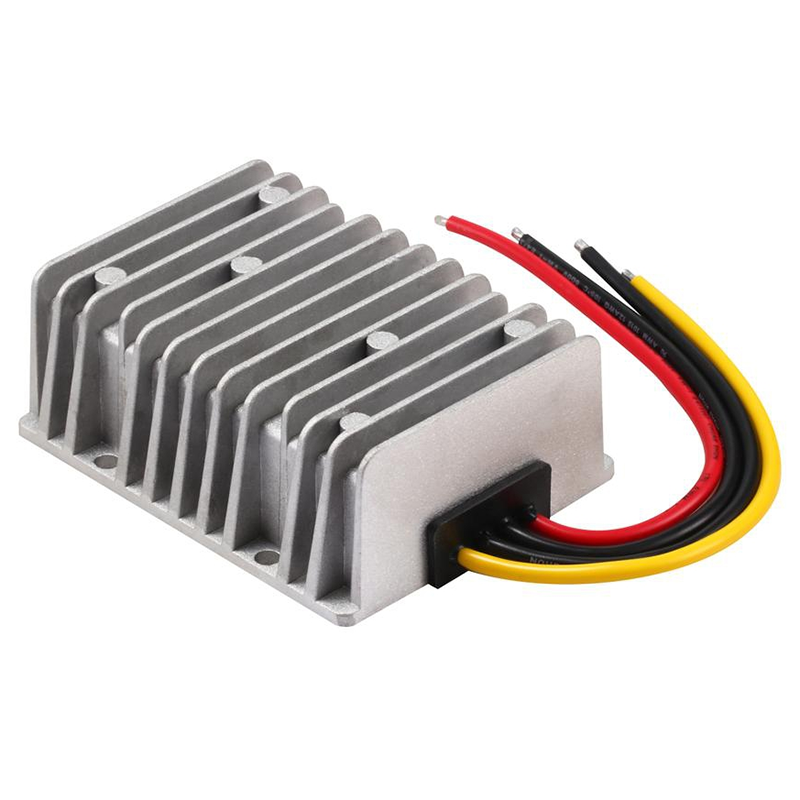

Isolated Buck-Boost 24V 30A 720W DC to DC Converter
The WEHO WH-D18402430 represents the high-power flagship of our Isolated Buck-Boost series, delivering a massive 720W output. Providing a steady 30A at 24VDC from an 18V-40VDC source, it features integrated automatic voltage regulation to ensure maximum output stability even during severe source fluctuations. Its isolated architecture provides a critical safety barrier and rejects input-side noise, making it essential for mission-critical radio, medical, or industrial systems. The module boasts a 92% peak efficiency and is encased in a fully waterproof shell for extreme reliability in harsh conditions. With a precision 1% voltage tolerance and a lifespan exceeding 100,000 hours, it is the top-tier isolated power solution for professional system integration.
ईमेल: [email protected]
हमारे पेशेवर आपको यथाशीघ्र जवाब देंगे।.
- विवरण
सारांश
Rated output: Power 720W
Input voltage: 24VDC
Wire Length: 160mm±10mm
General specification
| विनिर्देश | WH-D18402430 |
| Rated output power | 720W |
| Rated input voltage | 24VDC |
| Rated output voltage | 24VDC |
| इनपुट वोल्टेज रेंज | 18V-40VDC |
| Input starting voltage | 18VDC 100% Load |
| No-load power consumption | <0.3W |
| क्षमता | 92％ |
| Output voltage | 24VDC |
| Output current | 30A |
| Voltage tolerance | 1％ |
| लोड विनियमन | 3％ |
| Wave(mvp-p) | 100mv External 22UF capacitor ESR<0.1Ω 100KHZ |
| Over current protection | Under rated output conditions, if the current exceeds 120% of the rated curent, the overcurrent protection will activate.imiting the current and reducing the voltage. After the overcurrent disappears, it will automatically recover |
| शॉर्ट सर्किट सुरक्षा | Eaual to maximum current 43A, output voltage of 0V, automatic recovery |
| Input—output | Non-isolated |
| Waterproof | Fully sealed and waterproof |
| आयाम | 100×80×38mm |
| N.W. | 500g |
| Cooling method | Natural Method |
| Rated temperature rise | 45℃ |
| Reliability | >100000h |
| Wire indicator | input positive (red), input negative (black); output postive (yellow), output negative (black)lead length=160mm±10mm |
PIC and installation dimensions
