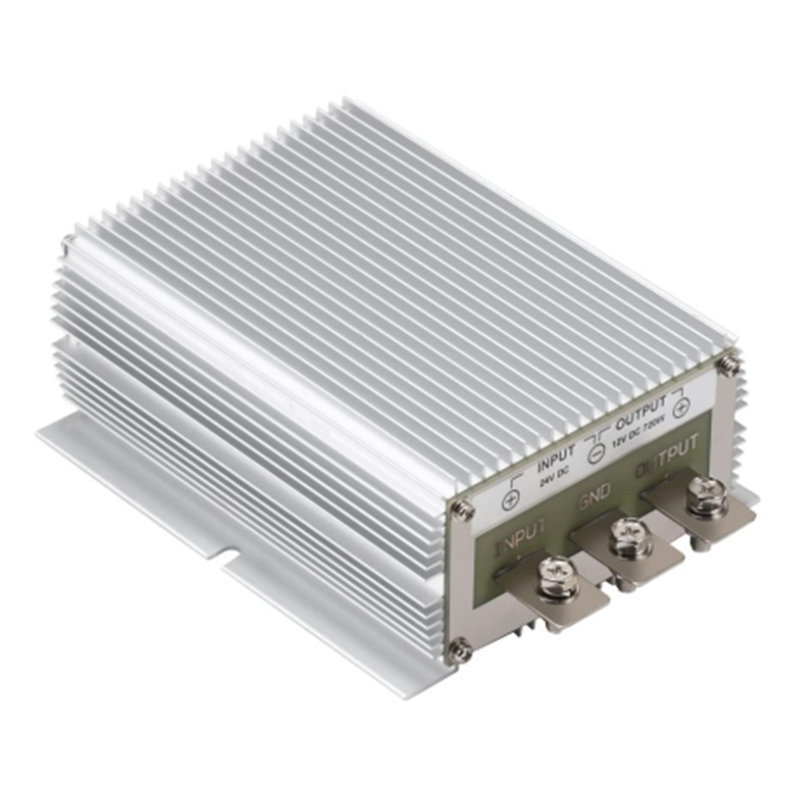

24V to 12V 50A 600W DC to DC Converter

The WEHO WH-C241250 is a high-power DC-DC buck converter designed to step down a 24VDC input (ranging from 18V-32VDC) to a stable 12VDC output. Delivering a substantial 600W of power at 50A, it operates with an exceptional 95% efficiency, significantly reducing energy loss and thermal stress. This industrial-grade unit features a robust 150 x 127 x 63mm aluminum chassis and is fully sealed and waterproof for reliable performance in harsh environments. Safety is prioritized through an over-current protection system that triggers at 150% of the rated current and an requirement for a 42A input fuse for short-circuit safety. With a reliability rating of over 100,000 hours, it is an ideal choice for heavy-duty 12V applications in 24V vehicular and marine systems.

E-mail: [email protected]

I nostri professionisti ti risponderanno nel più breve tempo possibile.

Richiedi un preventivo

Descrizione

Riepilogo
Rated output: power 600W
Tensione in ingresso: 24 V CC
Lunghezza del filo: 160 mm ± 10 mm

Specifiche generali

Modello	WH-C241250
Potenza di uscita nominale (W)	600W
Tensione di ingresso nominale (V)	24 V CC
Tensione di uscita nominale (V)	12 V CC
Input voltage range (V)	18 V-32 V CC
Input starting voltage (V)	18VDC 100%Load
Consumo energetico a vuoto (W)	< 3W
Efficienza	95%
Output voltage (V)	VOUT: 12 VCC
Corrente di uscita (A)	50A
Tolleranza di tensione	1%
Regolazione del carico	3%
Onda (MVP-p)	150mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ
Protezione da sovracorrente	In the case of rated output, if the current exceeds 150% of the rated current, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears.
Output short circuit protection	L'ingresso richiede l'aggiunta di un fusibile da 42 A
Ingresso-uscita	Non isolato
Impermeabile	Completamente sigillato e impermeabile
Dimensione	150×127×63mm
NW.	1500g
Metodo di raffreddamento	Metodo naturale
Aumento della temperatura nominale (℃)	45 ℃
Affidabilità	>100000 ore
Indicatore di filo	Input positive (red) 12AWG, input/output negative (black) 12AWG, output positive (yellow) 12AWG, lead length=160mm±10mm
