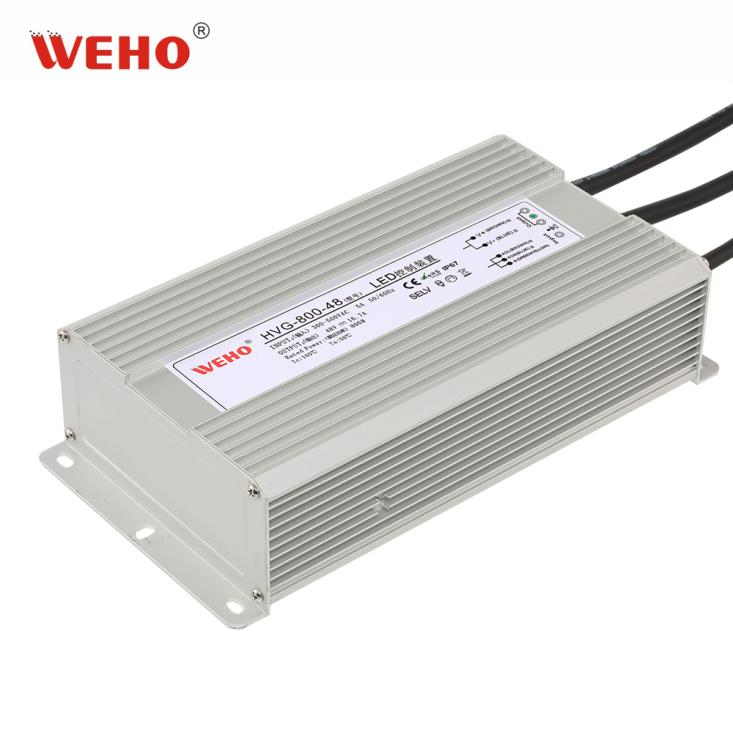

HVG 800W 300~500VAC AC to DC Waterproof Power Supply
HVG-800 series is an 800W single-output waterproof power supply with a durable 23512056mm design. Adopting the wide range 300-500VAC input, the entire series provides an output voltage line of 24V, 36V, 48V, and 60V. In addition to the high efficiency of up to 94.5%, it is equipped with current-limiting protections, and the whole series operates from -30°C through 60°C.
Wenn Sie Fragen haben, kontaktieren Sie uns bitte unter E-Mail: [email protected]
- Beschreibung
Allgemeine Spezifikation
| Modell | HVG-800-24 | HVG-800-36 | HVG-800-48 | HVG-800-60 |
| DC output voltage¤t | 24V 0~33A | 36V 0~22A | 48V 0~16.7A | 60V 0~13.5A |
| Ripple&noise | 300mVp-p | 300mVp-p | 400mVp-p | 400mVp-p |
| Spannungsgenauigkeit | ±2% | ±1,5% | ±1,5% | ±1,5% |
| Line regulation | ±0,5% | ±0,5% | ±0,5% | ±0,5% |
| Lastregulierung | ±0,5% | ±0,5% | ±0,5% | ±0,5% |
| Start-up,rise,hold-up time | 200ms,50ms,24ms/380VAC At full load | |||
| Eingangsspannungsbereich | 300~500VAC | |||
| Frequenzbereich | 47~63Hz | |||
| AC-Eingangsstrom | 5A/380VAC | |||
| Leistungsfaktor | 0.5~0.78 | |||
| Effizienz | 92.5% | 92.5% | 94% | 94.5% |
| Inrush current | Cold Start Inrush Current 45A/380VAC | |||
| Leckstrom | <1mA/380VAC | |||
| Overcurrent protection | Current triggers overcurrent limitation, which can automatically recover after abnormal conditions are removed | |||
| Kurzschlussschutz | Protection method: Current limiting mode, automatically restores normal output after abnormal conditions are removed | |||
| Überspannungsschutz | Over-voltage protection activates at 115%~135% of the rated output voltage. | |||
| Protection mode: voltage limiting mode; automatic recovery after the abnormal condition is removed. | ||||
| Over-temperature protection | 105℃±5℃ Protection mode: current-limiting and voltage-reducing mode; automatic recovery of normal output after the temperature drops | |||
| Operating temperature&humidity | -30℃~+60℃ 20%~90%RHno condensation | |||
| Storage temperature&humidity | -40℃~+85℃;10%~95%RH No condensation | |||
| Isolationswiderstand | Input/output (I/P~O/P),input to ground(I/P~FG),output to ground(O/P~FG):100M Ohms/500VDC/25℃/70%RH | |||
| Abmessungen | 235×120×56mm (L*W*H) | |||
| Verpackung | 2.0kg/9pcs/19.5kg/0.033m³ | |||
