12V to 19V 5A 95W DC to DC Converter

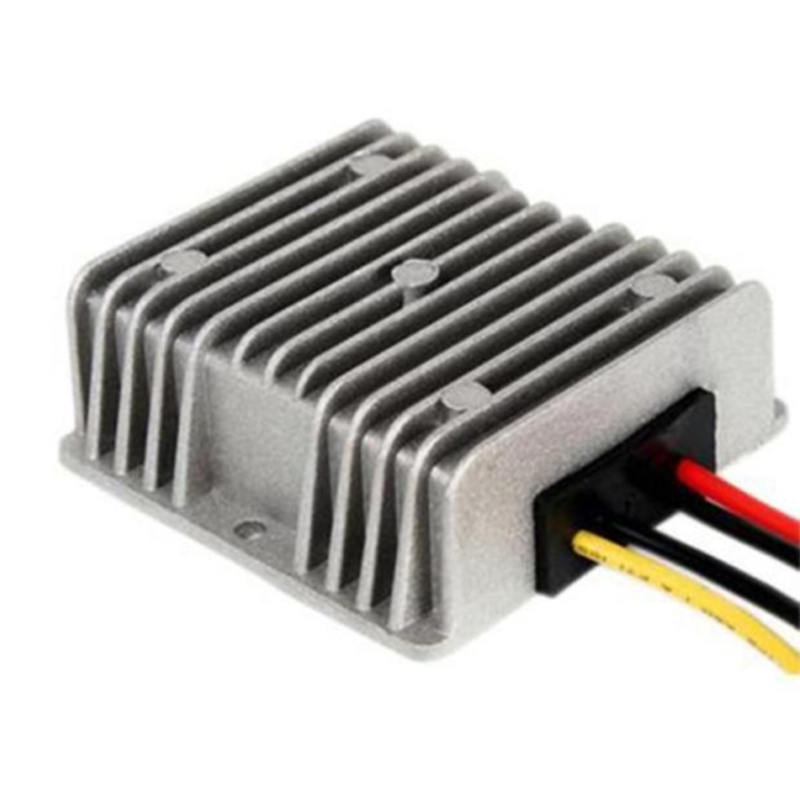

The WEHO WH-B121905 is a highly efficient DC-DC boost converter, specifically designed to step up a 12VDC input (ranging from 9V-16VDC) to a stable and regulated 24VDC output. Delivering 120W of power at 5A, it operates with a remarkable 93% efficiency, significantly reducing power loss and minimizing heat generation during heavy-duty tasks. This compact unit is fully sealed and waterproof, ensuring reliable performance in the most demanding environments, from industrial sites to marine applications. It features intelligent, auto-recovering over-current protection that activates at 120% of the rated current and requires a 15A fuse for input short-circuit safety. With a long-term reliability of over 100,000 hours, the WH-B121905 is a durable choice where consistent 24V power is essential.

E-mail: [email protected]

Nos professionnels vous répondront dans les plus brefs délais.

Demander un devis

Description

Résumé
Rated output: power 120W
Input voltage: 12VDC
Wire Length: 160mm±10mm

General specification

Modèle	WH-B121905
Rated output power (W)	120W
Rated input voltage (V)	12 V CC
Rated output voltage (V)	24VDC
Input voltage range (V)	9V-16VDC
Input starting voltage (V)	10VDC 100%Load
No-load power consumption (W)	< 0.1W
Efficacité	93%
Output voltage (V)	24VDC
Output current (A)	5A
Tolérance de tension	1.5%
Load regulation	2%
Vague (MVP-p)	250mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ
Protection contre les surintensités	In the case of rated output, if the current exceeds 120% of the rated current, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears.
Output short circuit protection	Input requires adding a 15A fuse
Input-output	Non isolé
Étanche	Entièrement scellé et étanche
Dimension	74×74×32mm
N.W.	300g
Cooling method	Méthode naturelle
Rated temperature rise (℃)	45 ℃
Fiabilité	>100 000 heures
Wire indicator	Input positive (red)，input/output negative (black)，output positive (yellow) length=160mm±10mm
