48V to 12V 80A 960W DC to DC Converter

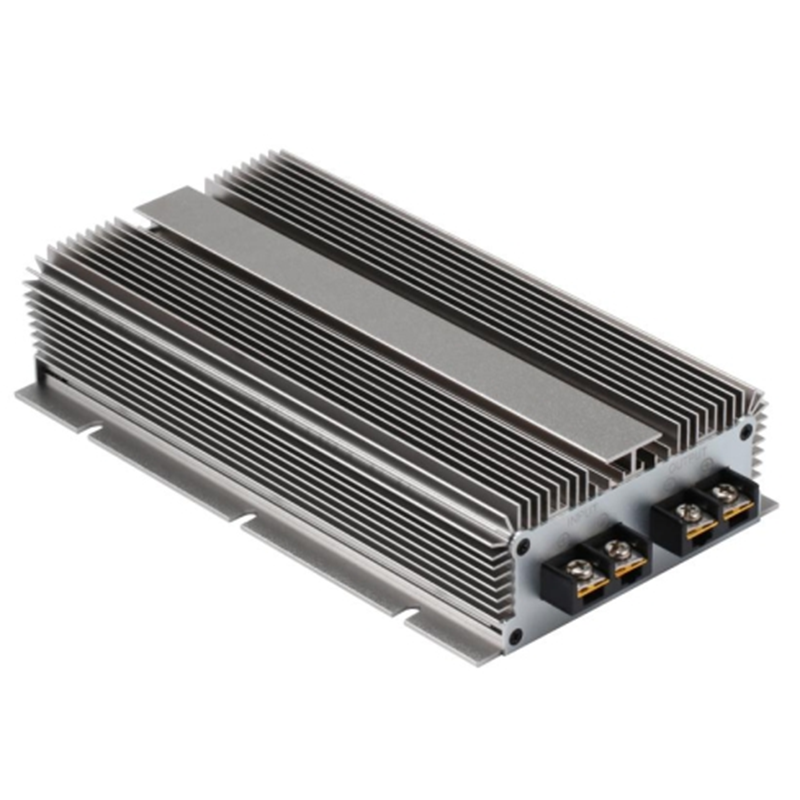

The WEHO WH-C481280 is an ultra-high output DC-DC buck converter designed to transform a 48VDC source into a clean and stable 12VDC output. Delivering a massive 960W of power at 80A, it is a market leader for efficiency at 95%, minimizing heat generation even at extreme power levels. The unit is encased in a large 220x130x50mm aluminum housing that is fully sealed and waterproof, ensuring durability in challenging outdoor or industrial sites. It features intelligent over-current protection that activates at 120% of the rated current and short-circuit protection equivalent to a maximum current of 83A. Built for mission-critical systems, it boasts a lifespan exceeding 100,000 hours, making it the ultimate choice for high-current 12V needs in 48V battery environments.

E-mail: [email protected]

Our professionals will respond to you as soon as possible

Demander un devis

Description

Résumé
Rated output: power 960W
Input voltage: 48VDC
Wire Length: 160mm±10mm

General specification

Modèle	WH-C481280
Puissance de sortie nominale (W)	960W
Rated input voltage	48 V CC
Rated output voltage	12 V CC
Plage de tension	30V-60VCC
Input reverse protection	None
No-load power consumption	< 4W
Efficacité	95%
Tension	12 V CC
Current	80A
Tolérance de tension	1%
Load regulation	3%
Wave(mvp-p)	200mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ
Protection contre les surintensités	In the case of rated output, if the current exceeds 120% of the rated current, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears.
Protection de court-circuit	Equivalent to a maximum current of 83A and an output voltage of 0V
Input—output	Non isolé
Étanche	Entièrement scellé et étanche
Dimension	220×130×50mm
N.W.	2200g
Cooling method	Méthode naturelle
Rated temperature rise	45 ℃
Fiabilité	>100 000 heures
Wire indicator	+Input positive, – Input negative – Output negative,+Output
