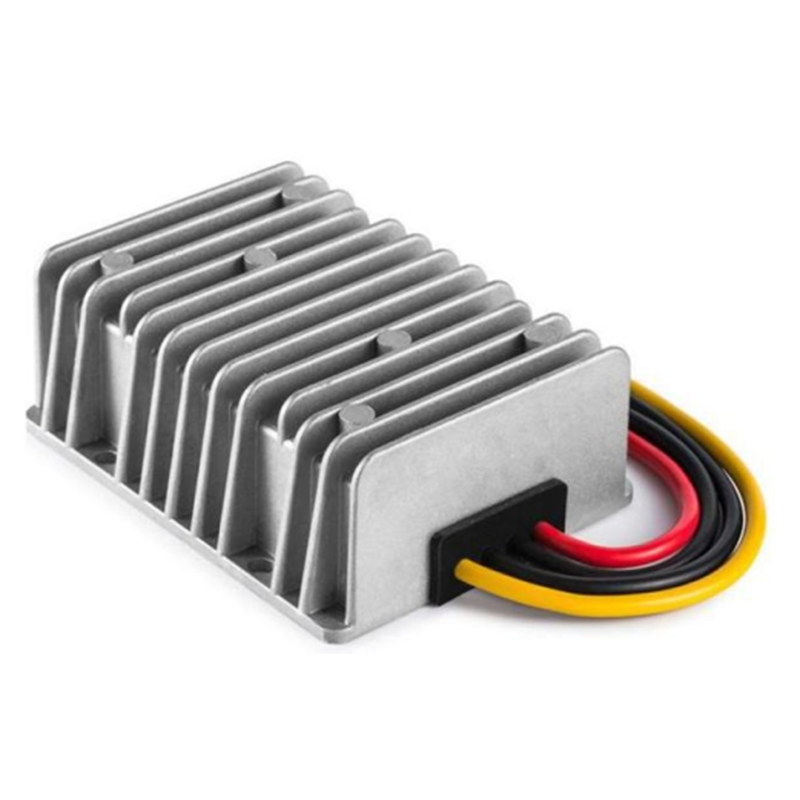

48V to 12V 40A 480W DC to DC Converter
The WEHO WH-C481240 is a rugged and versatile DC-DC buck converter, designed to step down 48VDC (30V-60V range) to a regulated 12VDC output. Delivering 480W of power at 40A, it boasts a high 95% efficiency rating and a low no-load consumption of less than 4W. The unit’s compact $118\times80\times28mm$ profile allows for installation in shallow spaces without sacrificing performance. It is equipped with input low-voltage protection (shutdown at ≤26V, recovery at ≥29V) and is fully sealed and waterproof for all-weather reliability. Advanced circuitry ensures a tight 1% voltage tolerance and 3% load regulation. With over-current protection and a reliability rating of over 100,000 hours, the WH-C481240 provides consistent, high-capacity power for demanding 12V loads in 48V battery environments.
E -mel: [email protected]
Our professionals will respond to you as soon as possible
- Penerangan
Ringkasan
Output dinilai: kuasa 480W
Voltan masukan: 48VDC
Panjang Wayar: 160mm±10mm
Spesifikasi umum
| Model | WH-C481240 |
| Kuasa Output Berkadar (W) | 480W |
| Voltan masukan berkadar (V) | 48VDC |
| Voltan keluaran berkadar (V) | 12VDC |
| Julat voltan input(V) | 30V-60VDC |
| Input starting voltage(V) | 30VDC 100%Load |
| Input low voltage protection(V) | Matikan output apabila ≤ 26VDC, dan pulih sendiri apabila ≥ 29VDC |
| Penggunaan kuasa tanpa beban (W) | < 4W |
| Kecekapan | 95% |
| Output voltage(V) | 12VDC |
| Output current | 40A |
| Toleransi voltan | 1% |
| Peraturan beban | 3% |
| Gelombang (MVP-p) | 100mv Kapasitor 22UF luaran ESR < 0. 1 Ω 100KHZ |
| Lebih daripada perlindungan semasa | Dalam kes output terkadar, jika arus melebihi 120% daripada arus ternilai, perlindungan arus lebih akan bertindak dan ia akan pulih secara automatik selepas arus lebihan hilang. |
| Perlindungan litar pintas keluaran | Bersamaan dengan arus maksimum 35A dan voltan keluaran 0V |
| Input-output | Tidak terpencil |
| Kalis air | Dimeteraikan sepenuhnya dan kalis air |
| Dimensi | 118×80×28mm |
| N.W. | 500g |
| Kaedah penyejukan | Kaedah semulajadi |
| Kenaikan suhu berkadar (℃) | 45 ℃ |
| Kebolehpercayaan | > 100000H |
| Penunjuk wayar | Input positif (merah), input output negatif (hitam), output positif (kuning), plumbum panjang=160mm±10mm |
