12V to 24V 40A 960W DC to DC Converter
Engineered for extreme power needs, the WEHO WH-B122440 DC-DC converter delivers an immense 960W of power. It efficiently transforms a 12VDC input into a robust 24VDC, 40A output, maintaining a high efficiency of 94%. This ensures that maximum power is delivered with minimal energy loss. The converter is housed in a rugged, fully sealed, and waterproof enclosure, making it suitable for any environment, and it is cooled naturally. It features intelligent, auto-recovering overcurrent protection and requires a 120A fuse for short-circuit safeguarding. With a reliability benchmark of over 100,000 hours, the WH-B122440 is a top-tier solution for applications requiring substantial and steadfast power.
Если у вас есть какие-либо вопросы, пожалуйста, не стесняйтесь обращаться к нам по адресу Электронная почта: [email protected]Наши специалисты ответят вам в кратчайшие сроки.
- Описание
Краткое содержание
Rated output: power 960W
Входное напряжение: 12 В постоянного тока
Общая спецификация
| Модель | WH-B122440 |
| Номинальная выходная мощность (Вт) | 960W |
| Номинальное входное напряжение (В) | 12 В |
| Номинальное выходное напряжение (В) | 24 В |
| Voltage Range (V) | 10V-16VDC |
| Стартовое напряжение (В) | 10VDC 100% load |
| Потребляемая мощность без нагрузки (Вт) | < 0.5W |
| Эффективность | 94% |
| Напряжение (В) | 24 В |
| Ток (А) | 40a |
| Voltage Tolerance | 1.5% |
| Регулирование нагрузки | 3% |
| Волна (MVP-p) | 500mv External 22UF capacitor ESR < 0.1Ω 100KHZ |
| Защита от перегрузки по току | In the case of rated output, if the rated current exceeds 120%, the overcurrent protection will activate and recover automatically once the overcurrent subsides. |
| Short Circuit Protection | Input requires adding a 120A fuse |
| Ввод-вывод | Неизолированный |
| Водонепроницаемый | Полностью герметичный и водонепроницаемый |
| Измерение | 180×127×63mm |
| Н.В. | 1800g |
| Метод охлаждения | Natural Method |
| Rated Temperature rise (℃) | 45℃ |
| Надежность | >100000ч |
| Индикатор провода | Input positive 12V GND input output negative output positive 24V |

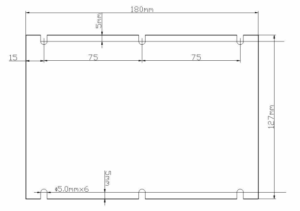

PIC и установочные размеры
