| Model / Specification | SCN-600-12 | SCN-600-13.5 | SCN-600-15 | SCN-600-24 | SCN-600-27 | SCN-600-48 |
| DC output voltage | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Output voltage error | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Rated output current | 50A | 44A | 40A | 25A | 22A | 12.5A |
| Output current rage | 0-50A | 0-44A | 0-40A | 0-25A | 0-22A | 0-12.5A |
| Wave and noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability(Note5) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| DC output power | 600W | 600W | 600W | 600W | 600W | 600W |
| Efficiency | 83% | 84% | 84% | 85.50% | 86.50% | 87% |
| Adjustable range for DC voltage | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 24-30V | 41-56V |
| AC input voltage range | 90~132AC/180~264AC | |||||
| AC Input current | 12A/115V 7.5A/230VAC | |||||
| AC impulse current | 25A/115V 50A/230V | |||||
| Leakage current | <3.5mA/240VAC | |||||
| Overload protection | 105%~135% Type:PULSING HICCUP SHUTDOWN Reset: auto recovery | |||||
| Temperature coefficient | ……….. | |||||
| Temperature coefficient | ……….. | |||||
| Setup rise hold up time | ±0.03%°C(0~50°C) | |||||
| Vibration | 10~500Hz, 2G 10min./1cycle,Period for 60min,EACH AXES | |||||
| Withstand voltage | Input and output interval:1.5KvAC,Input and enclosure:1.5KVAC Output and enclosure:0.5KVAC | |||||
| Isolation resistance | Input and output interval,Input and enclosure,Output and enclosure:500VDC/100M Ohms | |||||
| Working temperature and humidity | -10°C~+50°C,20%~90%RH | |||||
| Store temperature and humidity | -20°C~+85°C,10%~95%%RH | |||||
| Overall dimension | 247 x 147 x 63.5mm | |||||
| Weight | 2.1Kgs | |||||
| Safety standards | Meet UL 1950 requirement (NOT apply for the mark) | |||||
Product
New Products Alert
WeHo will only notify you by email when a new product is launched.
We won’t send you any emails at other times.
Contact Us
- Skype: Anniechina3
- Wechat: +86-15869492061
- WhatsApp: +86-15869492061
- Tel: 0086-577-61777088
- Fax: 0086-577-61777072
- Email: [email protected]
- Address: No. 231, Weiliu Road, Yueqing Economic Development Zone, Yueqing, Zhejiang, China (Mainland)
50a cctv 12v 600watt power supply
WeHo professional 600W Switching SCN series Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.
115/230V AC range selectable by switch, air cooling by built-in fan.
Filter capacitance; High withstand voltage; Low dissipation; Large capacity.Widely being used in Industrial automation, LED display, electronic equipments, communications etc
We are manufacturer of power supply for 10 years , from 10w to 3000w.
Setup rise hold up time:±0.03%°C(0~50°C)
Customized labels is based on MOQ 50pcs
Overall dimension:247 x 147 x 63.5mm
Freight collect, freight pre-paid
We accept sample order.
IP CODE:IP20

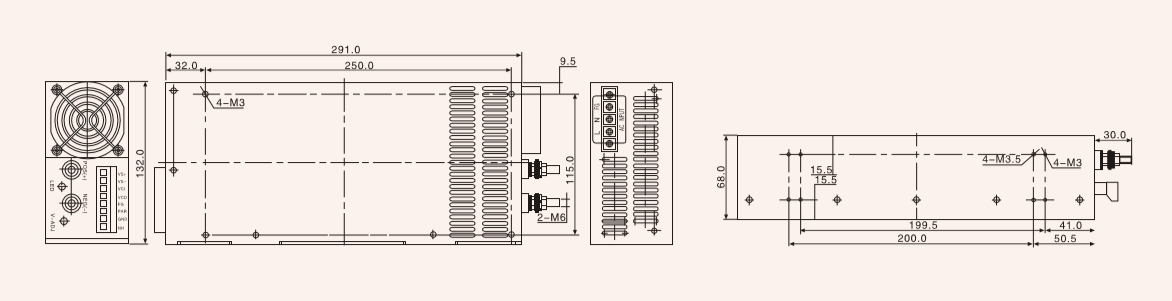

Size: 291*132*68mm (L * W * H)
