24V to 12V 10A 120W DC to DC Converter

The WEHO WH-C241210 stands out as a market-leading DC-DC step-down converter, boasting an incredible 96% efficiency. It is expertly designed to convert a 24VDC nominal input (18-32V range) into a stable 12VDC, 10A output, delivering 120W of reliable power. This combination of high efficiency and power makes it an ideal choice for energy-conscious applications. The unit is built to last, featuring a fully sealed, waterproof, and compact design that thrives in any environment. It includes essential auto-recovering overcurrent and short-circuit protection for enhanced safety. With a service life of over 100,000 hours, it offers unparalleled performance and longevity.
If you have any questions, please do not hesitate to contact us at Email: [email protected]Our professionals will respond to you as soon as possible.

Download Request A Quote

Description

Summary
Rated output: power 120W
Input voltage: 24VDC

General specification

	Model
Specification	WH-C241210
Rated Output Power (W)	120W
Rated Input Voltage (V)	24VDC
Rated Output Voltage (V)	12VDC
Voltage Range (V)	18V-32VDC
Starting Voltage (V)	18VDC 100% load
No-load Power Consumption (W)	＜ 2W
Efficiency	96％
Voltage (V)	12VDC
Current (A)	10A
Voltage Tolerance	1％
Load Regulation	3％
Wave (MVP-p)	200mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ
Over-current Protection	In the case of rated output, if the rated current exceeds 120%, the overcurrent protection will start, and once the overcurrent subsides, it will automatically recover.
Short circuit protection	Equivalent to a maximum current of 5A and an output voltage of 0V
Input-Output	Non-isolated
Waterproof	Fully sealed and waterproof

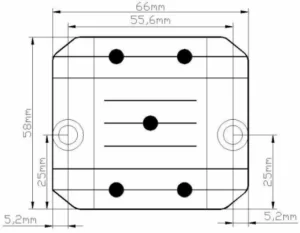

Dimension	665823mm
N.W	180g
Cooling Method	Natural Method
Rated Temperature Rise (℃)	45℃
Reliability	＞100000h
Wire Indicator	Input Positive (Red), Input/Output Negative (Black), Output Positive (Yellow) Length=160mm± 10mm
