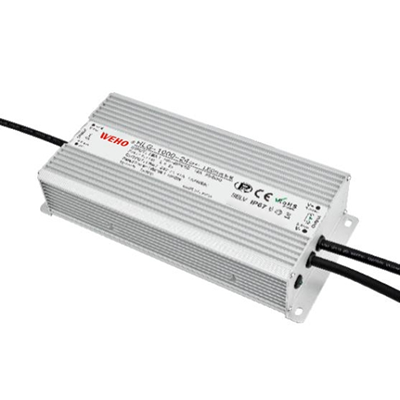

HLG-1000 Waterproof Ip67 AC to DC Led Driver With PFC
The KELR HLG-1000W is a high-performance single-output waterproof LED driver, engineered for constant voltage, constant current, and constant power applications. It features an active Power Factor Correction (PFC) circuit with a PF exceeding 0.98 at full load, and a wide input voltage range of 100-264VAC or 135-373VDC. This series provides outputs including 12V, 24V, 36V, 45V, and 48V. Boasting an efficiency of up to 95%, the HLG-1000W minimizes energy consumption. It is designed for fanless natural convection cooling, allowing it to operate in temperatures from -30°C to +70°C. Encased in a metal housing with IP65/IP67 protection, it is suitable for both indoor and outdoor use. Equipped with comprehensive protection features (short circuit, overload, overvoltage, over-temperature) and anti-5G vibration capability, the HLG-1000W ensures high reliability and a long lifespan, making it an excellent solution for various LED lighting needs.
- Description
Summary
Single output: Power 1000W
Input voltage:100~264VAC/135~373VDC
Power factor PF>0.96/230VAC When fully loaded
General Specification
| Model | HLG-1000-12 | HLG-1000-24 | HLG-1000-36 | HLG-1000-48 |
| DC output voltage,current | 12V 0~50A | 24V 0~25A | 36V 0～16.5A | 48V 0~12.5A |
| Wave and noise | 180mVp-p | 200mVp-p | 220mVp-p | 250mVp-p |
| Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±2% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 92.8% | 94% | 94.5% | 95% |
| Adjustable range for DC voltage | ±3% | ±2% | ±2% | ±2% |
| Input voltage range | 100～264VAC /135~373V DC 47~63Hz | |||
| Power factor | PF>0.96/230VAC When fully loaded | |||
| AC input current | 12A/110VAC,5.5A/230VAC When fully loaded | |||
| Impact current | Cold start current 45A/230VAC | |||
| Overload protection | Overcurrent limiting starts at 95%~108%of the rated output current and automatically recovers after the abnormal condition is removed | |||
| Overvoltage protection | Overvoltage protection is activated when the rated output voltage reaches 115%~135%.Protection mode: interrupt mode. Normal output will be restored automatically after the abnormal condition is removed. | |||
| Short circuit protection | Protection mode: Isolation mode, normal output can be automatically restored after abnormal conditions are removed. | |||
| Overtemperature protection | 100℃+10℃(JK1 is tested next to the transformer/on the surface of the MOS tube)Protection mode: shut down the output voltage, and the output will automatically resume normal operation after the temperature drops. | |||
| Setup, rise, hold up time | 500ms,30ms 20ms/230VAC When fully loaded | |||
| Withstand voltage | Input and output(I/P~O/P):3KVAC Input and ground (I/P~FG):3KVAC Output and ground(O/P~FG):0.5KVAC | |||
| Insulation resistance | Between input and output(I/P~O/P),input and ground(IP~FG),output and ground (O/P~FG):100M Ohms/500VDC/25℃/70%RH | |||
| Operating temperature/humidity | -30℃~+70℃ 20%~90%RH,non-condensing | |||
| Dimension | 265×120×56mm | |||
| Weight | 2.1kg | |||
| Packing | 9pcs/19.8kg/0.026m³ | |||
Overall Dimension(mm)
