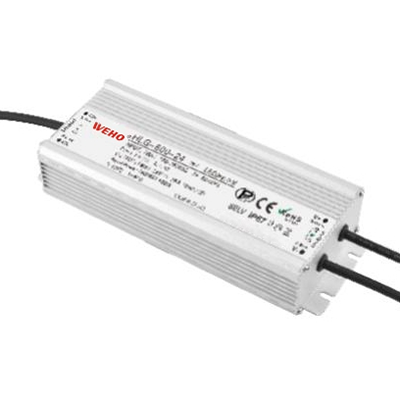

HLG-600 Waterproof Ip67 AC to DC Led Driver With PFC

The WEHO HLG-600W is a high-efficiency single-output waterproof power supply, designed to deliver a stable 600W of power. It operates with a versatile input voltage range of 100-264VAC or 135-373VDC and boasts a power factor exceeding 0.96 when fully loaded at 230VAC. With an impressive efficiency of up to 95%, the HLG-600W ensures minimal energy loss. This robust unit is equipped with comprehensive protection mechanisms, including safeguards against overload, overvoltage, short circuits, and over-temperature conditions, guaranteeing reliable and safe operation. Its waterproof design with an IP67 rating allows for use in challenging environments, and it functions efficiently across a broad temperature range of -30°C to +60°C. Compact at 270 x 90 x 45mm, the HLG-600W offers a powerful and protected solution for various demanding applications.

Download Request A Quote

Description

Summary

Single output: Power 600W

Input voltage:100~264VAC/135~373VDC

Power factor PF>0.96/230VAC When fully loaded

General Specification

Model	HLG-600-12	HLG-600-24	HLG-600-36	HLG-600-48
DC output voltage,current	12V 0~50A	24V 0~25A	36V 0～16.5A	48V 0~12.5A
Wave and noise	150mVp-p	150mVp-p	200mVp-p	250mVp-p
Inlet wire stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±2%	±0.5%	±0.5%	±0.5%
Efficiency	92.8%	94%	94.5%	95%
Adjustable range for DC voltage	±3%	±2%	±2%	±2%
Input voltage range	100～264VAC /135~373V DC 47~63Hz
Power factor	PF>0.96/230VAC When fully loaded
AC input current	7.0A/110VAC,3.5A/230VAC When fully loaded
Impact current	Cold start current 45A/230VAC
Overload protection	Overcurrent limiting starts at 95%~108%of the rated output current and automatically recovers after the abnormal condition is removed
Overvoltage protection	Overvoltage protection is activated when the rated output voltage reaches 115%~135%.Protection mode: interrupt mode.Normal output will be restored automatically after the abnormal condition is removed.
Short circuit protection	Protection mode:Isolation mode,normal output can be automatically restored after abnormal conditions are removed.
Overtemperature protection	95℃+10℃(JK1 is tested next to the transformer/on the surface of the MOS tube)Protection mode: shut down the output voltage,and the output will automatically resume normal operation after the temperature drops.
Setup,rise,hold up time	500ms,30ms 20ms/230VAC When fully loaded
Withstand voltage	Input and output(I/P~O/P):3KVAC Input and ground (I/P~FG):3KVAC Output and ground(O/P~FG):0.5KVAC
Insulation resistance	Between input and output(I/P~O/P),input and ground(IP~FG),output and ground (O/P~FG):100M Ohms/500VDC/25℃/70%RH
Operating temperature/humidity	-30℃~+60℃ 20%~90%RH,non-condensing
Dimension	270×90×45mm
Weight	1.7kg
Packing	10pcs/18.5kg/0.026m³
