Isolated Buck-Boost 12V 3A 36W DC to DC Converter
The WEHO WH-D08401203 is a high-performance Isolated Buck-Boost converter, uniquely engineered to maintain a stable 12VDC output across an ultra-wide input range of 8V-40VDC. Its primary advantage is the automatic step-up/step-down capability, ensuring constant voltage even if the input source fluctuates below or above 12V. This 36W unit features galvanic isolation to eliminate ground loops and protect sensitive electronics from input-side noise. Built with a fully waterproof aluminum shell, it operates at 95% efficiency and includes auto-recovering over-current protection. It is the perfect isolated solution for mission-critical systems requiring absolute voltage stability.
Email: [email protected]
Our professionals will respond to you as soon as possible.
- Description
Summary
Rated output: Power 36W
Input voltage: 12/24VDC
Wire Length: 160mm±10mm
General specification
| Specification | WH-D08401203 |
| Rated output power | 36W |
| Rated input voltage | 12V/24VDC |
| Rated output voltage | 12VDC |
| Input voltage range | 8V-40VDC |
| Input starting voltage | 8VDC 100% Load |
| No-load power consumption | <0.3W |
| Efficiency | 95％ |
| Output voltage | 12VDC |
| Output current | 3A |
| Voltage tolerance | 1％ |
| Load regulation | 3％ |
| Wave(mvp-p) | 100mv External 22UF capacitor ESR<0.1Ω 100KHZ |
| Over current protection | In the case of rated output,if the current exceeds 120% of the rated current,the overcurrent protection will act, and it will automatically recover after the overcurrent disappears. |
| Short circuit protection | Equivalent to amaximum current of 5.6A and an output voltage of 0V |
| Input—output | Non-isolated |
| Waterproof | Fully sealed and waterproof |
| Dimension | 66×58×23mm |
| N.W. | 300g |
| Cooling method | Natural Method |
| Rated temperature rise | 45℃ |
| Reliability | >100000h |
| Wire indicator | Input positive (red),input output negative(black),output negative(1),output positive(2),lead length=160mm±10mm |

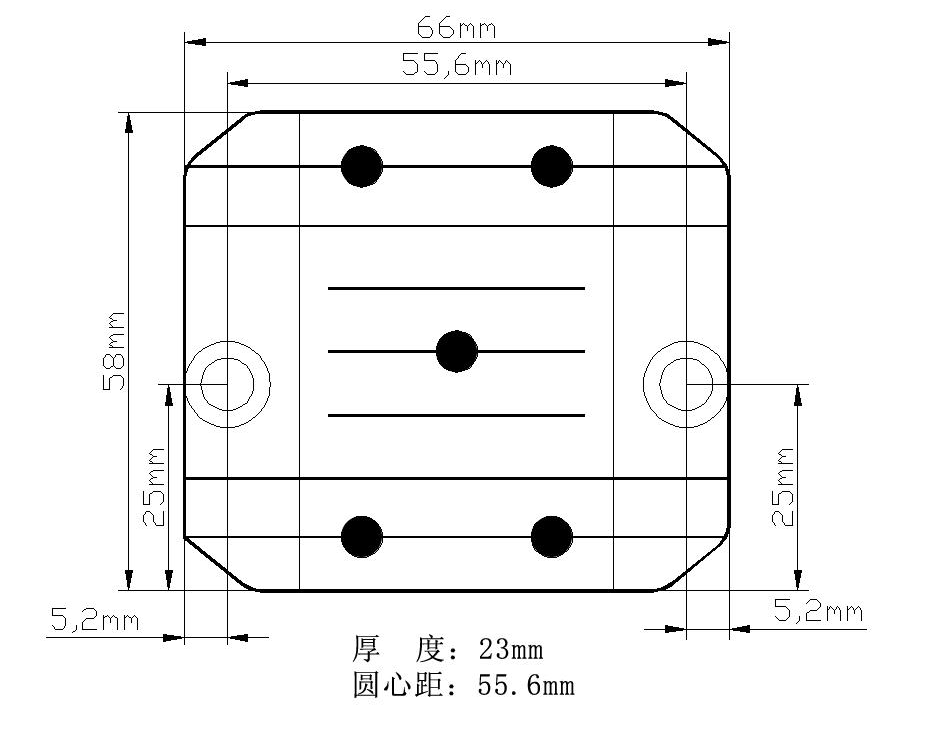

PIC and installation dimensions
