| Model | WH-36-12 | WH-36-15 | |
| Output | DC Output Voltage | 12V | 15V |
| Output Voltage Tolerance | +1% | +1% | |
| Rated Output Current | 3A | 2A | |
| Output Current Range | 0~3A | 0~2A | |
| Output Power | 36W | 36W | |
| Ripple And Noise | 100mVp-p | 100mVp-p | |
| DC Voltage Adjustable Range | +10% | +10% | |
| Start, Rise, Hold Time | 200ms, 50ms, 20ms/230VAC | ||
| Input | Input Voltage Range | 170-264VAC; 47-63Hz, 235-373VDC | |
| AC Input Current | 0.35A/230VAC | ||
| Efficiency | 78% | 78% | |
| Impulse Current | Cold start current 30A / 230VAC | ||
| Leakage Current | ＜0.5mA/240VAC | ||
| Protection | Overload Protection | 110% – 135% of rated output power start overload protection | |
| Protection Mode | Fold type current limit, automatic recovery after removal of abnormal load conditions | ||
| Environmental Science | Working Temperature And Humidity | -10℃ ~ +60℃; 20% ~ 90% RH (please refer to load derate curve) | |
| Storage Temperature And Humidity | -20℃ ~ +85℃; 10% ~ 95% RH non condensing | ||
| Seismic Resistance | 10~ 500Hz, 2G 10min. / 1 cycle, duration 60min, each axis | ||
| Security | Pressure resistance | Input-output room: 1.5kVac Input and ground: 1.5kVac Output and ground: 0.5kvac | |
| Insulation Resistance | Input-output room: input and ground, output and ground: 100M ohms / 500VDC | ||
| Other | Weight | 0.140kg; 93.5*43.5*33(L*W*H) | |
| Packing | 100pcs | ||

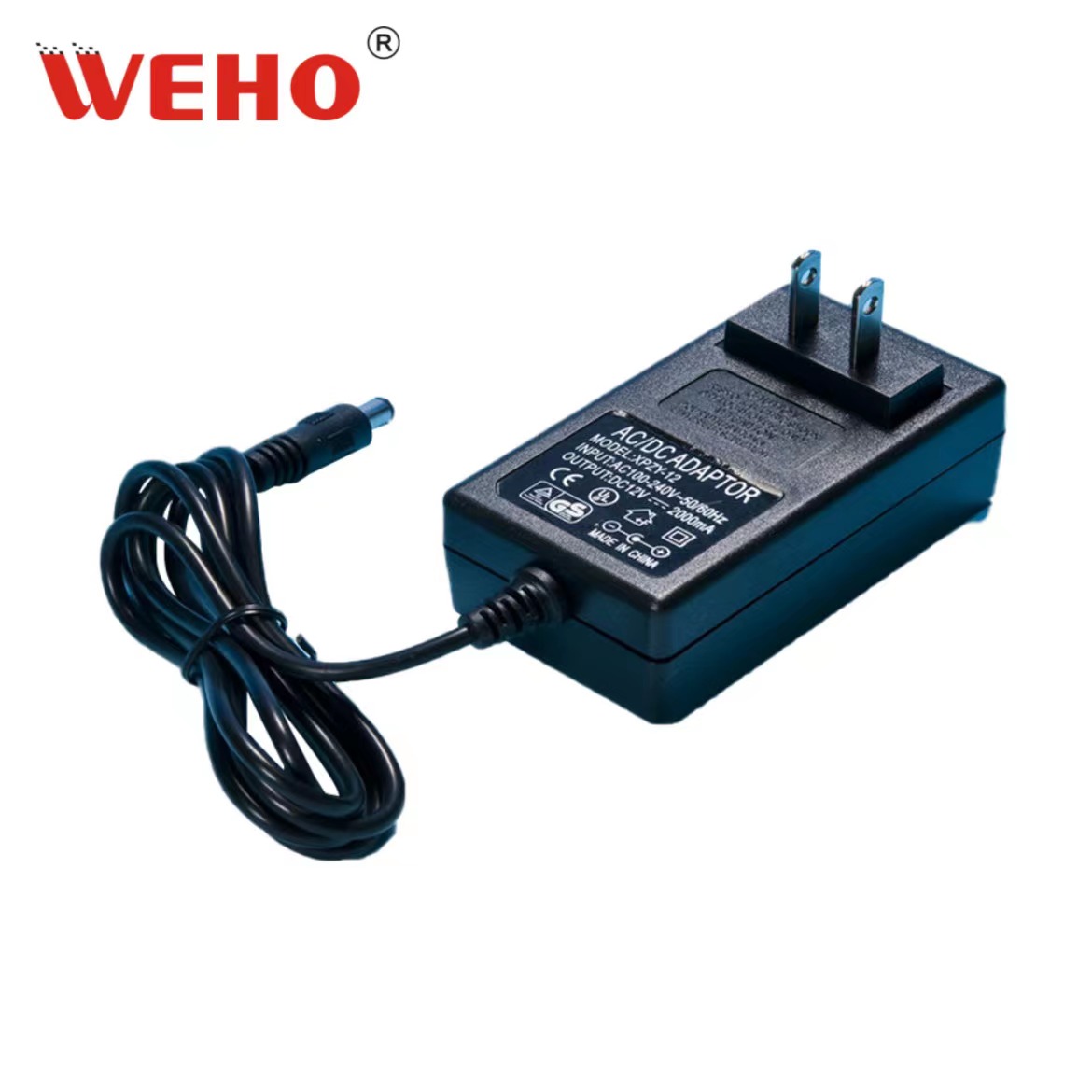

110V to 12V adapter AC Wall Plug Dc Power Adapter 36W Adapter 12V 1A 15V 1A For CCTV Led lights
This is a Wall Plug Dc Power Adapter 36w 12v-15v 1a For CCTV Led light that provides an output voltage range of 235-373VDC.
It has a peak load current of 30A and an efficiency rating of 78%. This power adapter is RoHS compliant.The adapter features short circuit, overload, and open circuit protection.If you have any questions, please do not hesitate to contact us at Email: [email protected]
