12V to 24V 30A 720W DC to DC Converter

The WEHO WH-B122430 is an exceptionally powerful DC-DC converter, engineered to deliver a massive 720W of rated power. It efficiently converts a 12VDC input source (10V-16VDC) to a high-current 24VDC, 30A output, making it ideal for the most demanding applications. Operating at a superior 94% efficiency, it minimizes energy loss and runs coolly under a natural cooling method. Encased in a fully sealed, waterproof aluminum shell, it offers maximum durability. The converter includes auto-recovery overcurrent protection and requires a 120A fuse for short-circuit safety. With a service life exceeding 100,000 hours, the WH-B122430 is a premier choice for high-power, reliable energy conversion.
If you have any questions, please do not hesitate to contact us at Email: [email protected]Our professionals will respond to you as soon as possible.

Download Request A Quote

Description

Summary
Rated output: power 720W
Input voltage: 12VDC

General specification

Model	WH-B122430
Rated Output Power (W)	720W
Rated Input Voltage (V)	12VDC
Rated Output Voltage (V)	24VDC
Voltage Range (V)	10V-16VDC
Starting Voltage (V)	10VDC 100% load
No-load Power Consumption (W)	< 0.5W
Efficiency	94%
Voltage (V)	24VDC
Current (A)	30A
Voltage Tolerance	1.5％
Load Regulation	3％
Wave (MVP-p)	< 300mv External 22UF capacitor ESR < 0.1Ω 100KHZ
Over-current Protection	In the case of rated output, if the rated current exceeds 120%, the overcurrent protection will activate and recover automatically once the overcurrent subsides.
Short Circuit Protection	Input requires adding a 120A fuse
Input-Output	Non-isolated
Waterproof	Fully sealed and waterproof

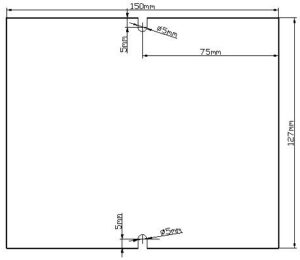

Dimension	15012763mm
N.W.	1800g
Cooling Method	Natural Method
Rated Temperature rise (℃)	45℃
Reliability	＞100000h
Wire Indicator	Input positive 12V GND input output negative output positive 24V
