12V to 28V 40A 1120W DC to DC Converter
As a premier power solution, the WEHO WH-B122840 DC-DC converter delivers a massive 1120W (1.12kW) of power. It is engineered to meet extreme power needs, boosting a 12VDC input to a powerful 28VDC, 40A output. Its exceptional 94% efficiency ensures that this high power is delivered with minimal energy loss. The unit is encased in a rugged, fully sealed, and waterproof housing for ultimate durability. For safety, it features a unique overcurrent protection that trips at 200% load and requires a 200A fuse for short-circuit protection, making it exceptionally robust. Guaranteed for over 100,000 hours, it’s the ultimate choice for high-stakes, power-hungry applications.
If you have any questions, please do not hesitate to contact us at Email: [email protected]Our professionals will respond to you as soon as possible.
- Description
Summary
Rated output: power 1120W
Input voltage: 12VDC
General specification
Model | WH-B122840 |
Rated Output Power (W) | 1120W |
Rated Input Voltage (V) | 12VDC |
Rated Output Voltage (V) | 28VDC |
Voltage Range (V) | 10V-16VDC |
Starting Voltage (V) | 10VDC 100% load |
No-load Power Consumption (W) | < 0.01W |
Efficiency | 94% |
Voltage (V) | 28VDC |
Current (A) | 40A |
Voltage Tolerance | 1% |
Load Regulation | 3% |
Wave (MVP-p) | 500mv External 22UF capacitor ESR < 0.1Ω 100KHZ |
Over-current Protection | In the case of rated output, if the rated current exceeds 200%, the overcurrent protection will activate and recover automatically once the overcurrent subsides. |
Short Circuit Protection | Input requires adding a 200A fuse |
Input-Output | Non-isolated |
Waterproof | Fully sealed and waterproof |
Dimension | 220*127*63mm |
N.W. | 2200g |
Cooling Method | Natural Method |
Rated Temperature rise (℃) | 45℃ |
Reliability | >100000h |
Wire Indicator | Input positive 12V GND input output negative output positive 28V |

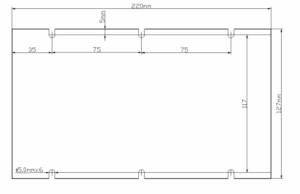

PIC and installation dimensions
