60V-72V to 12V 80A 960W DC to DC Converter

The WEHO WH-C60721280 is an ultra-high output powerhouse DC-DC converter, engineered for extreme power requirements that demand a massive 960W output. Delivering 80A of continuous current at 12VDC from a 60V-72VDC input, it maintains an industry-leading 95% efficiency. The large-scale 220x130x50mm aluminum chassis provides excellent thermal management through natural convection cooling. This flagship model is fully sealed and waterproof, ensuring reliable power delivery even in the most demanding marine and industrial environments. Protection is comprehensive, featuring over-current protection that activates at 120% load and short-circuit protection limited to an 83A maximum current path. With its non-isolated architecture and standard precision, it is the top-tier solution for your high-power 12V needs in high-voltage infrastructures.

Email: [email protected]

Our professionals will respond to you as soon as possible.

Request A Quote

Description

Summary
Rated output: power 960W
Input voltage: 60VDC
Wire Length: 160mm±10mm

General specification

Model	WH-C60721280
Rated Output Power (W)	960W
Rated input voltage (V)	60VDC
Rated output voltage (V)	12VDC
Input voltage range (V)	30V-90VDC
Starting voltage (V)	30VDC 100%Load
No-load power consumption (W)	< 4W
Efficiency	96%
Output voltage (V)	12VDC
Output current	80A
Voltage tolerance	1%
Load regulation	3%
Wave (MVP-p)	200mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ
Over current protection	In the case of rated output, if the current exceeds 120% of the rated current, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears.
Short circuit protection	Equivalent to a maximum current of 83A and an output voltage of 0V
Input-output	Non-isolated
Waterproof	Fully sealed and waterproof

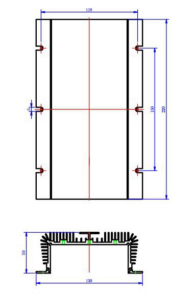

Dimension	220×130×50mm
N.W.	2200g
Cooling method	Natural Method
Rated temperature rise (℃)	45℃
Reliability	>100000h
Wire indicator	+Input positive, – Input negative – Output negative,+Output
