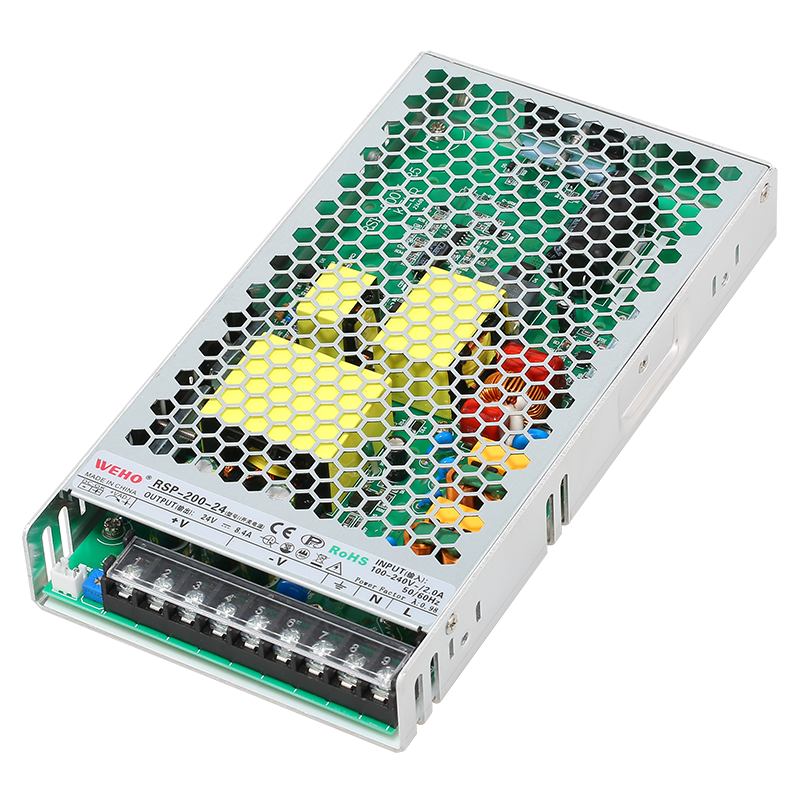

RSP-200 AC To DC Power Supply With PFC
The WEHO RSP-200W is a 200W single-output enclosed power supply that delivers high efficiency up to 94%. It features a universal AC input range of 90-264VAC and a DC input range of 135-370VDC, with a high power factor (PF > 0.95 at 230VAC). This series is available in 12V, 24V, 36V, and 48V output models. Housed in a compact 159 x 97 x 30mm frame, it operates effectively in temperatures from -20°C to +60°C. Comprehensive protection against overload, overvoltage, and over-temperature ensures reliable and safe operation, making it ideal for various industrial applications.
- Description
Summary
Single output:power 200W
Input voltage:90~264VAC,135~370VDC
General Specification
| Specification | RSP-200-12 | RSP-200-24 | RSP-200-36 | RSP-200-48 |
| DC output voltage,current | 12V 0~16.5A | 24V 0~8.3A | 36V 0~5.6A | 48V 0~4.2A |
| Wave and noise | 200mVp-p | 200mVp-p | 280mVp-p | 300mVp-p |
| Line regulation rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load regulation rate | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 91% | 92.5% | 93.5% | 94% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| Input voltage range | 90~264VAC,135~370VDC(Can withstand 300VAC surge input for 5 seconds without damage)47-63Hz | |||
| AC input current | 2.4A/115V 1.2A/230VAC | |||
| Power factor | PF≥0.99/115VAC,PF≥0.95/230VAC (When fully loaded) | |||
| Impact current | Cold start current 35A/230VAC | |||
| Overload protection | Overload protection is activated at 105%-125%of the rated output power.Protection method: Current limiting mode,automatically restores normal output after abnormal conditions are removed | |||
| Overvoltage protection | Starting overvoltage protection at 115%~135%of rated output voltage.Protection method: Voltage limiting mode,which can automatically restore normal output after removing abnormal conditions | |||
| Over temperature protection | 95℃±10℃ Protection mode:current reduction mode,can automatically recoverafter the temperature returns to normal | |||
| Setup,rise,hold up time | 800ms,50ms,16ms/230VAC(When fully loaded) | |||
| Withstand voltage | Input/output space(I/P~O/P):2.5KVAC input to ground(I/P~FG):2.0KVAC output to ground(O/P~FG):0.5KVAC | |||
| Insulation resistance | Input/output(I/P~O/P),input to ground(I/P~FG),output to ground(O/P~FG):100M Ohms/500VDC/25°C/70%RH | |||
| Working temperature/humidity | -20℃~+60℃ 20%~90%RH, No condensation | |||
| Dimension | 159×97×30mm(L*W*H) | |||
| Packing | 0.39kg/40pcs/17kg/0.003m³ | |||

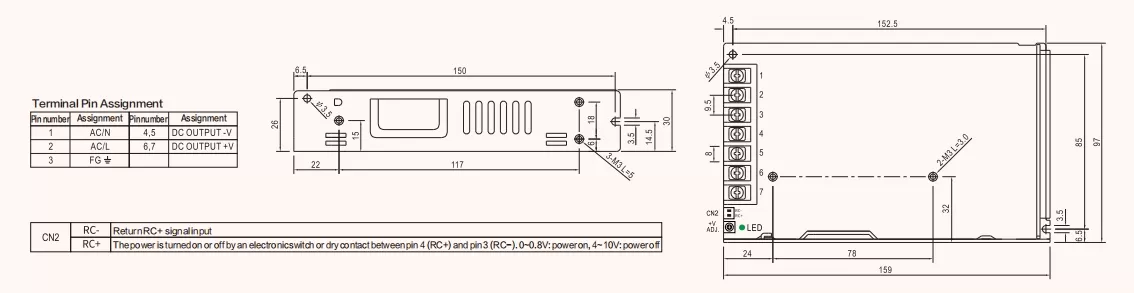

Overall Dimension(mm)
