| Specification | S-400-5 | S-400-12 | S-400-24 | S-400-48 |
| DC output voltage,current | 5V0～60A | 12V0～33A | 24V 0～16.5A | 48V 0～8.3A |
| Wave and noise | 100mVp-P | 150mVp-P | 150mVp-P | 200mVp-P |
| Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 0.73 | 0.82 | 0.83 | 0.85 |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| Input voltage range | 90～132VAC/180～264VAC by switch 254～370VDC 47~63Hz | |||
| Impact current | Cold start current 25A/115VAC 50A/230VAC | |||
| Overload protection | 105%～135%cut off the output,automatic recovery | |||
| Over voltage protection | 115%～150%shut down O/P voltage,re-power on to recover | |||
| Setup,rise,hold uptime | 200ms,50ms,20ms/230VAC at full load | |||
| Withstand voltage | I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ | |||
| Working temperature | -10℃~+50℃ | |||

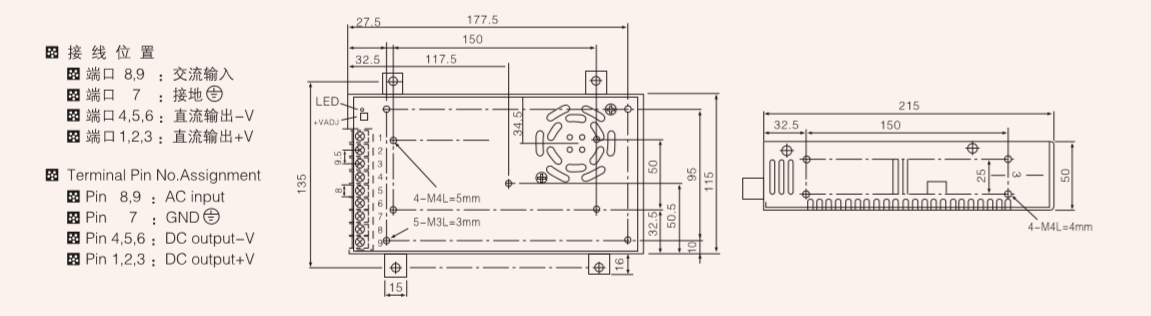

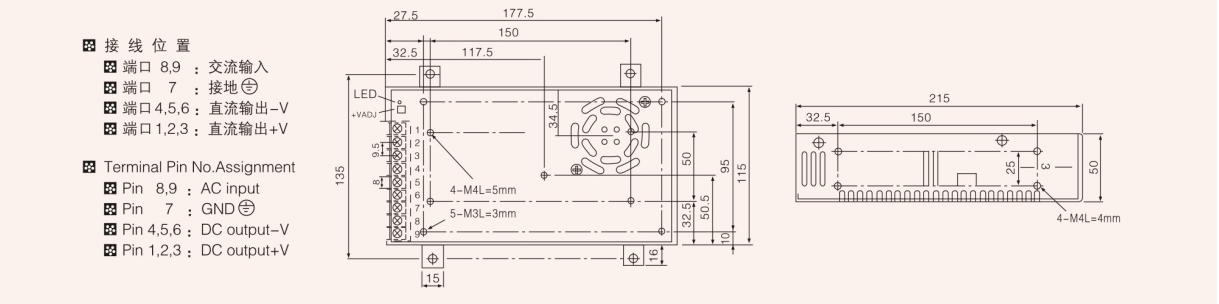

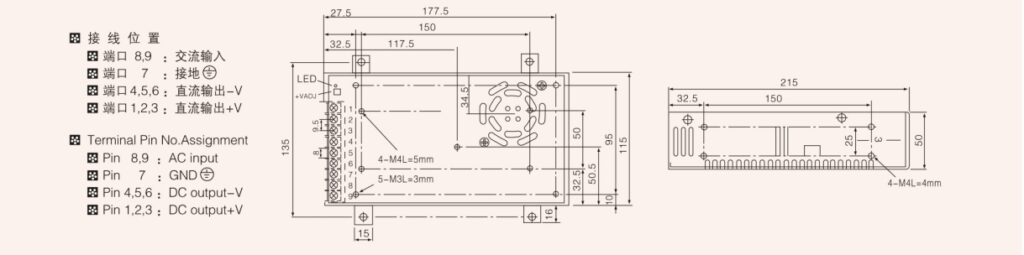

| Dimension | 215×115×50mm | |||
| Weight | 1.1kg | |||
| Packing | 45.5×31.5×26CM/20PCS/22kg | |||
S-400W series normal single switching power supply
WeHo professional 400W Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.
115/230V AC range selectable by the switch, air cooling by the built-in fan.Filter capacitance; High withstand voltage; Low dissipation; Large capacity.Widely being used in Industrial automation, LED display, electronic equipment, communications, etc.If you have any questions, please do not hesitate to contact us at Email: [email protected]
- Description
The white cap on the connector is for safety precautions against electric shock and dust protection.
All products go through standardized testing procedures during production.
Input voltage of this product: 90-132/180-264VAC, changed by the switch.
This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions.
The product can be cooled by convection of natural air.
The product’s output ripple noise is 100MV.
Product voltage adjustment: ±10%
The product has completed the 100% full load aging test.
Product size: 215*115*50mm (L * W * H)
