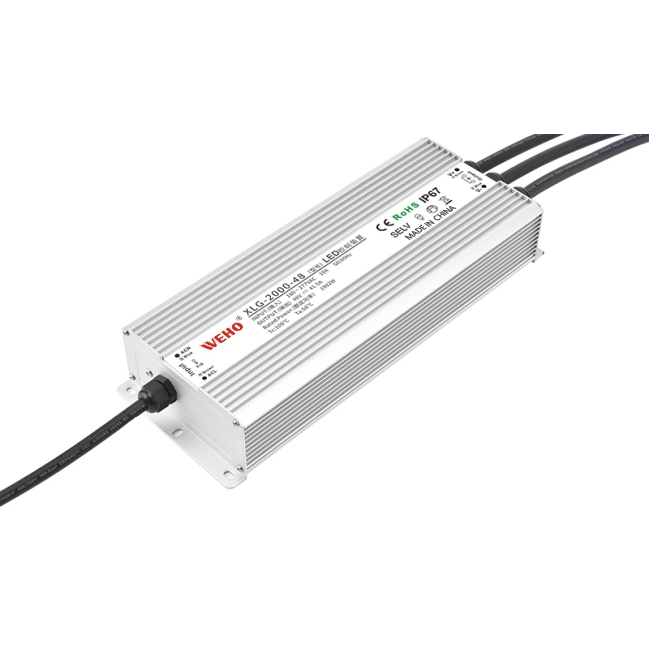

XLG-2000 Waterproof Ip68 AC to DC Led Power Supply
The WEHO XLG-2000W is a high-performance single-output waterproof power supply, engineered to deliver a robust 2000W of stable power. It supports a wide input voltage range of 180-277VAC or 245-390VDC, ensuring broad compatibility for diverse global applications. Boasting an impressive efficiency of up to 95%, the XLG-2000W minimizes energy waste and optimizes performance. This power supply incorporates comprehensive protection features, including overload, short circuit, overvoltage, and over-temperature protection, ensuring reliable and safe operation even under challenging conditions. Designed for durability, it operates effectively across a wide temperature range from -20°C to +70°C. With its compact dimensions (370 x 120 x 56mm) and robust build, the XLG-2000W is an ideal solution for demanding environments requiring a high-power, protected, and waterproof DC source.
- Description
Summary
Single output: Power 2000W
Input voltage:180~277VAC/245~390VDC
General Specification
| Model | XLG-2000-24 | XLG-2000-36 | XLG-2000-48 | XLG-2000-110 |
| DC output voltage,current | 24V 83A | 36V 55.5A | 48V 41.5A | 110V 18A |
| Wave and noise | 300mVp-p | 360mVp-p | 450mVp-p | 800mVp-p |
| Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 0.935 | 0.945 | 0.95 | 0.95 |
| Adjustable range for DC voltage | ±2% | ±2% | ±2% | ±2% |
| Input voltage range | 180～277VAC /245~390V DC 47～63Hz | |||
| AC input current | 21A/230VAC | |||
| Power factor | 0.5~0.7 | |||
| Impact current | Cold start current55A/230VAC | |||
| Overload protection | 95%~100%of the rated output curent starts overcurrent limit,recover automatically after abnormal conditions are removed | |||
| Short circuit protection | Protection mode:Current limiting mode,normal output can be automatically restored after the abnormal condition is removed | |||
| Overvoltage protection | Start overvoitage protection at 115%to 135%of the rated output voltage.Protection method:Voitage imiting mode, which can automatically restore normal output after removing abnormal conditions. | |||
| Over temperature protection | 105℃±5℃ Protection method:Reduce the output voltage,reduce the output current, and automatically restore normal output after the temperature drops. | |||
| Setup,rise,hold up time | 500ms,50ms 24ms/230VAC(When fully loaded) | |||
| Withstand voltage | Input/output space(/P~O/P):1.5KVAC input to ground (I/P~FG):1.5KVAC output to ground(O/P~FG):0.5KVAC | |||
| Isolation resistance | Input/output (I/P~O/P),input to ground(I/P~FG),output to ground(O/P~FG):100M Ohms/500VDC/25 ℃/70%RH | |||
| Working temperature/humidity | -20℃~+70℃ 20%~90%RH,C28,A21:F22No condensation | |||
| Dimension | 370×120×56mm | |||
| Weight | 4.5kg | |||
| Packing | 2pcs/11.5kg/0.033m³ | |||
Overall Dimension(mm)
