12V to 24V 30A DC-DC Boost Buck Car Converter

The Boost Buck Car Converter is a new device with wide input voltage range and high efficiency up to 96%. The device features a new die-cast aluminum housing that is both durable and stylish.

Step up the input voltage rating from 12V DC to 24V DC output voltage and have a choice of different models to suit your application.

If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.

Download Request A Quote

Description

Specifications&Model

Description	Model	WH-B2430
	Rated Output Power (W)	720W
	Rated Input Voltage (V)	12VDC
	Rated Output Voltage (V)	24VDC
Input	Voltage Range (V)	10V-16VDC
	Starting Voltage (V)	10VDC 100﹪load
	No-load Power Consumption (W)	＜ 0.5W
	Efficiency	94％
Output	Voltage (V)	VOUT: 24VDC
	Current (A)	30A
	Voltage Tolerance	1.5％
	Load Regulation	3％
	Wave (MVP-p)	<300mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ
Protection	Over Current Protection	In the case of rated output, if the rated current exceeds 120%, the overcurrent protection will start, and once the overcurrent subsides, it will automatically recover.
Protection	Short Circuit Protection	Input must add 120A fuse
Insulation	Input-Output	non-isolated
Insulation	Waterproof	Fully sealed and waterproof

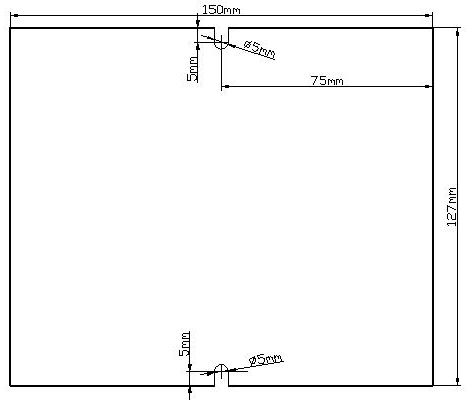

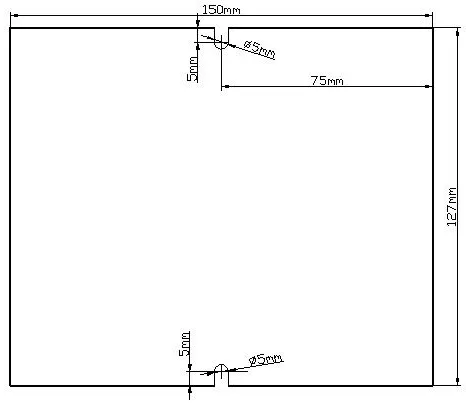

Others	Dimension	15012763mm N.W.：1800g
	Cooling Method	Natural Method
	Rated Temperature rise (℃)	45℃
	Reliability	＞100000h
	Terminal Indicator	Input Positive 12V GND Input/Output Negative Output Positive 24V

Features

● Theboost-buck car converter features a new die-cast aluminum housing, high-quality design, and 96% transmission efficiency.

● The boost-buck car converter is IP68 waterproof, with moisture-proof and shock-proof protection function

● The boost-buck car converter automatically resets when the device resumes normal operation

● The Boost Buck Car Converter is equipped with a range of protection functions for over/under voltage, over current, overload, overhead, and short circuit. This ensures safety and reliability while in use.

● Industrial grade 24VDC to 12VDC step-up and step-down on-board converter, widely used in automotive, power, monitoring systems, railway signals and other fields short circuit. This ensures safety and reliability while in use.
