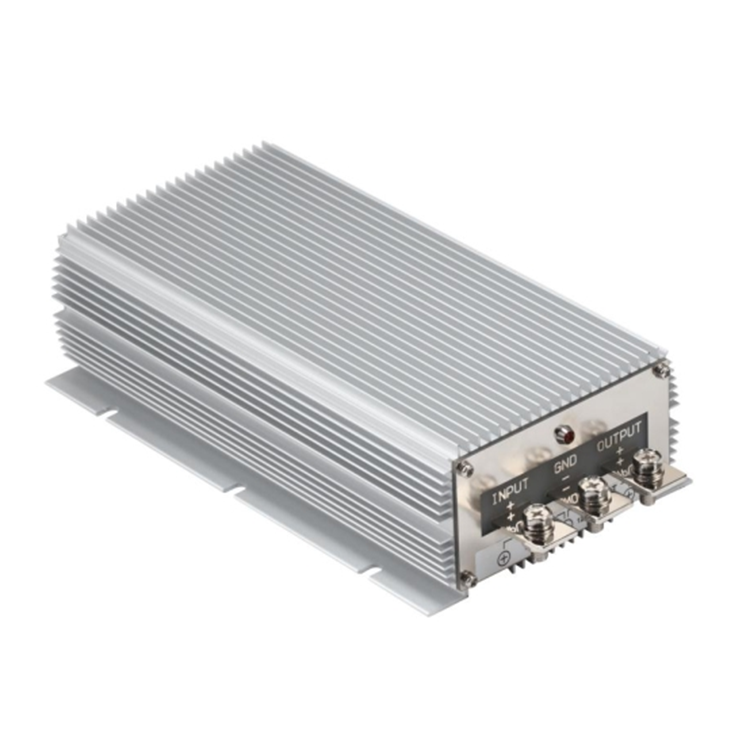

12V to 24V 50A 1200W DC to DC Converter

The WEHO WH-B122450 is a powerhouse in DC-DC conversion, delivering a colossal 1200W (1.2kW) of rated output. This converter is designed for the most demanding industrial and automotive applications, stepping up a 12VDC input to a potent 24VDC, 50A output. Its exceptional 94% efficiency rating ensures superior performance with minimal heat generation, managed by natural cooling. Built to last, its fully sealed and waterproof design provides ultimate protection from environmental hazards. The unit includes auto-recovery overcurrent protection and necessitates a 120A fuse for short-circuit safety. With a reliability of over 100,000 hours, the WH-B122450 offers unparalleled power and dependability.
If you have any questions, please do not hesitate to contact us at Email: [email protected]Our professionals will respond to you as soon as possible.

Download Request A Quote

Description

Summary
Rated output: power 1200W

Input voltage: 12VDC

General specification

Model	WH-B122450
Rated Output Power (W)	1200W
Rated Input Voltage (V)	12VDC
Rated Output Voltage (V)	24VDC
Voltage Range (V)	10V-16VDC
Starting Voltage (V)	10VDC 100% load
No-load Power Consumption (W)	< 0.5W
Efficiency	94%
Voltage (V)	24VDC
Current (A)	50A
Voltage Tolerance	1.5％
Load Regulation	3％
Wave (MVP-p)	< 200mv External 22UF capacitor ESR < 0.1Ω 100KHZ
Over-current Protection	In the case of rated output, if the rated current exceeds 120%, the overcurrent protection will activate and recover automatically once the overcurrent subsides.
Short Circuit Protection	Input requires adding a 120A fuse
Input-Output	Non-isolated
Waterproof	Fully sealed and waterproof
Dimension	220×127×63mm
N.W.	1800g
Cooling Method	Natural Method
Rated Temperature rise (℃)	45℃
Reliability	＞100000h
Wire Indicator	Input positive 12V GND input output negative output positive 24V
