Power supplies are the unsung heroes of electronic systems – often overlooked but fundamentally important to performance and reliability. Choosing the wrong power supply can lead to system failures, safety hazards, and increased operational costs. This comprehensive guide provides detailed insights into selecting the optimal AC-DC power supply for your specific application needs.

What is an AC-DC Power Supply?

An AC-DC power supply is a device that converts alternating current (AC) from a wall outlet into stable direct current (DC) needed to power electronic circuits. These power supplies ensure that electronic devices receive the correct voltage and current they require to operate safely and efficiently.

There are two primary types of AC-DC power supplies:

Linear Power Supplies: These use transformers to step down voltage and are known for clean output with low noise but tend to be larger, less efficient, and suitable for lower power applications.

Switching Power Supplies (SMPS): These use high-frequency switching techniques to convert power, resulting in higher efficiency, smaller size, and lighter weight. They dominate the market for most applications today.

Switching power supplies typically offer higher efficiency (often 85-94% or more), smaller form factors, and better cost-effectiveness for most applications, especially at higher power levels.

Learn More: AC vs DC Power Supplies

Key Considerations When Selecting an AC-DC Power Supply

Choosing the right AC-DC power supply involves evaluating several critical factors to ensure optimal performance, safety, and reliability for your specific application.

Step-by-Step Selection Guide

Follow this systematic approach to ensure you select the right power supply for your needs:

Step 1: Define Your Power Requirements

• Calculate total power needs (Volts ×Amps = Watts)
• Add 20-30% safety margin for future expansion
• Consider peak vs. continuous power demands

Step 2: Determine Input Voltage Specifications

• Identify your region’s voltage standards (100-120VAC or 220-240VAC)
• Consider universal input (85-264VAC) for global applications
• Evaluate need for DC input capability

Step 3: Select Appropriate Output Characteristics

• Choose single, dual, or multiple outputs as needed
• Determine voltage and current requirements for each output
• Consider special requirements like constant current for LED applications

Step 4: Evaluate Environmental Factors

• Assess operating temperature range
• Consider humidity, altitude, and vibration conditions
• Determine necessary ingress protection (IP rating)

Step 5: Review Safety and Regulatory Requirements

• Identify necessary safety certifications (UL, CE, TUV, etc.)
• Determine industry-specific standards (medical, industrial, etc.)
• Evaluate isolation requirements

Step 6: Consider Physical Constraints

• Measure available space for power supply
• Determine mounting preferences (PCB, chassis, DIN rail)
• Evaluate thermal management requirements

Step 7: Analyze Cost vs. Performance Trade-offs

• Compare initial cost against efficiency savings
• Evaluate reliability and warranty terms
• Consider total cost of ownership

Efficiency & Heat Management

Efficiency significantly impacts thermal performance and operating costs:

Efficiency Ratings: Higher efficiency (90%+) means less energy wasted as heat and lower operating costs. For example, a 90% efficient 100W power supply wastes 10W as heat, while an 85% efficient unit wastes 15W.

Thermal Management: Consider your cooling options—natural convection, forced air, or conduction cooling—based on your application’s environment and thermal requirements.

Here’s a typical efficiency comparison for different power levels:

Power Range	Typical Efficiency	Recommended Topology	Applications
Low Power (<100W)	85-90%	Flyback	Consumer electronics, small devices
Medium Power (100-1000W)	90-94%	LLC, Forward	Industrial equipment, communications
High Power (>1000W)	92-96%	Full-bridge LLC, Phase-shift full-bridge	Servers, large power control systems

Safety & Protection Features

Safety is paramount, especially for medical and industrial applications:

Isolation: Isolation voltage between input and output (typically 3000VAC or higher) provides safety protection and noise isolation.

Protection Circuits: Look for overvoltage protection (OVP), overcurrent protection (OCP), short circuit protection (SCP), and overtemperature protection (OTP).

Safety Certifications: Ensure the power supply has appropriate certifications for your region and application (UL, CE, TUV, etc.) and industry-specific certifications like IEC 60601-1 for medical equipment.

Size, Form Factor & Installation

Physical considerations are often crucial, especially in space-constrained applications:

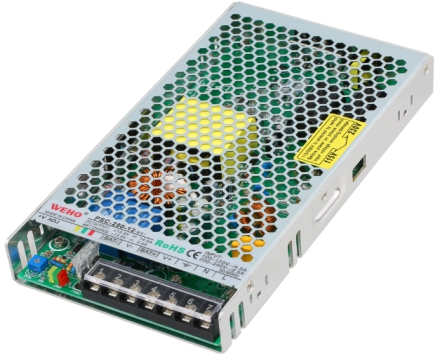

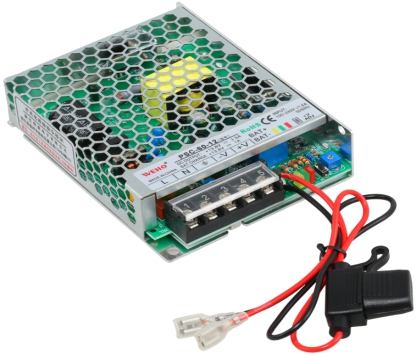

Form Factors: Common options include open frame, U-channel, enclosed, and modular configurations.

Mounting Options: Consider PCB mount, chassis mount, DIN rail mount, or rack mount based on your application needs.

Dimensions: Ensure the power supply fits your available space, considering both the unit itself and needed clearance for ventilation.

Packaging Type	EMI Performance	Space Requirement	Thermal Management	Cost Structure	Suitable Applications
Power Modules	Medium-High	Small size	Relies on conduction cooling	Medium	Industrial control, automotive, humid environments
Open Frame	Poorer	Smallest size	Good natural convection but needs protection	Lowest	Space-constrained, cost-sensitive applications
U-Bracket	Medium	Balanced space and installation	Metal base helps heat transfer	Medium	Industrial equipment, communications
Enclosed	Best	Largest volume	Good convection and grounding heat dissipation	Highest	Medical equipment, high-interference environments

Cost vs Performance Balance

Finding the right balance between cost and performance is essential:

Initial Cost vs Operating Cost: Higher efficiency units may cost more initially but save money through reduced energy consumption

Quality vs Price: Cheaper power supplies may use lower-quality components that fail sooner

Total Cost of Ownership: Consider warranty, reliability, maintenance, and energy costs over the product’s lifespan

Linear vs Switching AC-DC Power Supplies

Understanding the differences between these two technologies is fundamental to making the right choice:

Characteristic	Linear Power Supplies	Switching Power Supplies
Operating Principle	Transformer-based voltage step-down	High-frequency switching conversion
Efficiency	Typically 40-60%	Typically 80-95%
Size and Weight	Larger and heavier	Smaller and lighter
Complexity	Simpler design	More complex design
EMI Noise	Low electromagnetic noise	Higher noise, requires filtering
Cost	Lower for low power	More cost-effective for higher power
Thermal Output	Higher waste heat	Lower waste heat

For most modern applications, switching power supplies are preferred due to their higher efficiency, smaller size, and better cost-effectiveness at higher power levels. Linear regulators are mainly reserved for specialized applications requiring extremely low noise and ripple.

Application-Based Selection Guide

Different applications have unique requirements that dictate specific power supply features:

Industrial Applications

Requirements: Wide temperature range, high reliability, resistance to vibration and contamination

Key Features: DIN rail mounting, conformal coating, wide input voltage range, high efficiency

Standards: IEC/UL/EN 62368-1, IEC/EN 60335-1

Medical Applications

Requirements: Patient safety, low leakage currents, high reliability

Key Features: 2xMOPP isolation, low earth leakage current (<300μA), BF rating for patient-connected applications

Standards: IEC 60601-1, 3rd edition

Telecommunications/Networking

Requirements: High efficiency, power density, wide input voltage range

Key Features: High power density (up to 50W/in³), efficiency >90%, -48VDC input option

Consumer Electronics

Requirements: Cost-effectiveness, safety, efficiency regulations

Key Features: Compact size, meeting energy efficiency standards (Energy Star, ErP), safety certifications

Lighting Applications

Requirements: Constant current output, dimming capability, high efficiency

Key Features: LED drivers with PWM dimming, high power factor (>0.9), surge protection

Tips for Choosing a Reliable AC-DC Power Supply

Consider Operating Environment: Will the power supply operate in harsh conditions? Choose appropriately rated units for extreme temperatures, humidity, or vibration.

Plan for Thermal Management: Ensure adequate cooling through heatsinking, ventilation, or forced air based on the power supply’s thermal requirements.

Verify Certification Marks: Look for relevant safety certifications (UL, TUV, etc.) for your region and application to ensure compliance.

Check Vendor Reputation and Support: Choose established manufacturers with good technical support and documentation.

Review Test and Validation Reports: Request validation test reports for critical parameters like efficiency, ripple, and transient response.

Consider Future Needs: Select a power supply with some headroom (20-30%) for future expansion or design changes.

Evaluate Total Cost of Ownership: Consider not just purchase price but also energy costs, cooling requirements, and potential downtime over the product’s lifetime.

Request Samples: Test candidate power supplies in your actual application under various operating conditions.

Learn More: How to better understand AC DC Supplies

Conclusion

Selecting the right AC-DC power supply requires considering input voltage, output power, efficiency, safety, size, and environmental conditions. The cheapest option may not be the most cost-effective in the long term. A higher-quality, efficient supply may cost more initially but save on energy, offer better reliability, and last longer. Proper thermal management and derating can also extend the life of both the power supply and the equipment it powers.

FAQs

What’s the difference between AC and DC?

AC (Alternating Current) is the type of electricity you get from a wall outlet. Its direction of flow changes constantly. DC (Direct Current) flows in a single, constant direction and is what most electronic components, like microchips and batteries, need to operate. An AC-DC power supply converts one into the other.

How do I calculate my power needs?

To calculate your total power need, multiply the voltage (V) by the current (A) of your circuit: Power (Watts) = Volts × Amps. It’s always a good idea to add a 20-30% safety margin to your calculation to account for future expansion or unexpected power spikes.

Why is a power supply’s efficiency important?

A power supply’s efficiency rating tells you how much of the input power is converted into usable output power, with the rest being wasted as heat. A higher efficiency rating means less energy is wasted, which translates to lower electricity bills and less heat generated. This reduced heat can improve the longevity and reliability of your entire system.

What is an IP rating?

An Ingress Protection (IP) rating is an international standard that classifies the degree of protection provided by an enclosure against the intrusion of foreign objects (like dust) and moisture (water). For example, an IP67-rated power supply is completely protected against dust and can withstand being submerged in up to 1 meter of water for 30 minutes.

What are safety certifications, and why do they matter?

Safety certifications like UL (U.S.), CE (Europe), and TUV (Germany) indicate that a power supply has been tested and meets specific safety standards for its intended use. Using a certified power supply is crucial for ensuring the safety of users and preventing hazards like electric shock or fire. It also ensures your product is compliant with local regulations.
