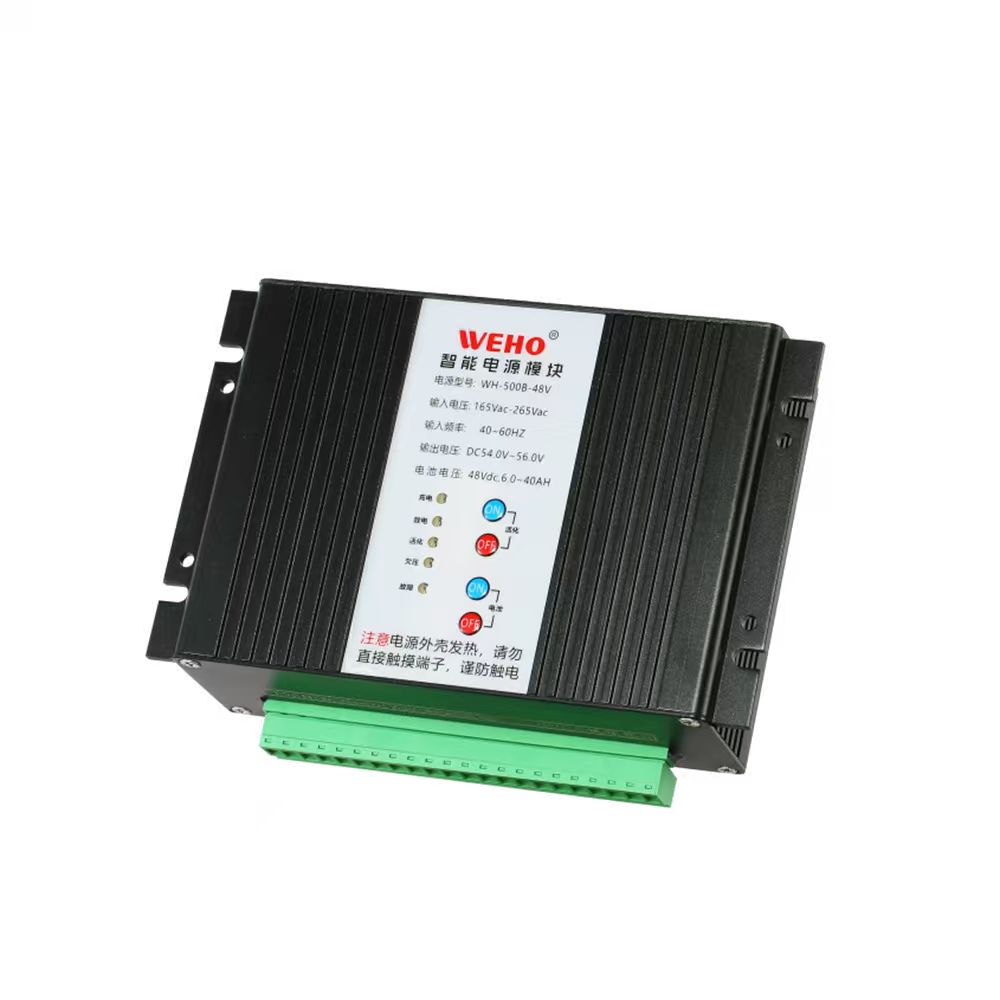

CW-500-48 Intelligent Power Module
Rated output: power 500W
Input voltage:165~265VAC/200~380VDC
- Description
Summary
Rated output: power 500W
Input voltage:165~265VAC/200~380VDC
General specification
| Model | CW-500-48 |
| DC output voltage,current | 55V,1.5A (Does not include charging current) |
| Wave and noise | ≤500mVp-p |
| inlet wire stability | 0.01 |
| Load stability | 0.01 |
| Efficiency | 0.82 |
| Input voltage range | 165~265VAC/200~380VDC 40-60Hz |
| Impact current | Output Surge Current:10.5A for≤10S |
| Overload protection | Short circuit protection,auto-recovery |
| Other protection | Output protection,Battery reverse polarity protection |
| Withstand voltage | IP-OP:2.5KVAC;IP2.5kVAC;O/P2.5KVAC(Surge withstand) |
| Working temperature | -40℃~+70°C |
| Dimension | 168*110*50mm |
| Setup,rise,hold up time | 35,100ms,25ms |
| Isolation resistance | >50MΩ |
| Weight | 1000g |

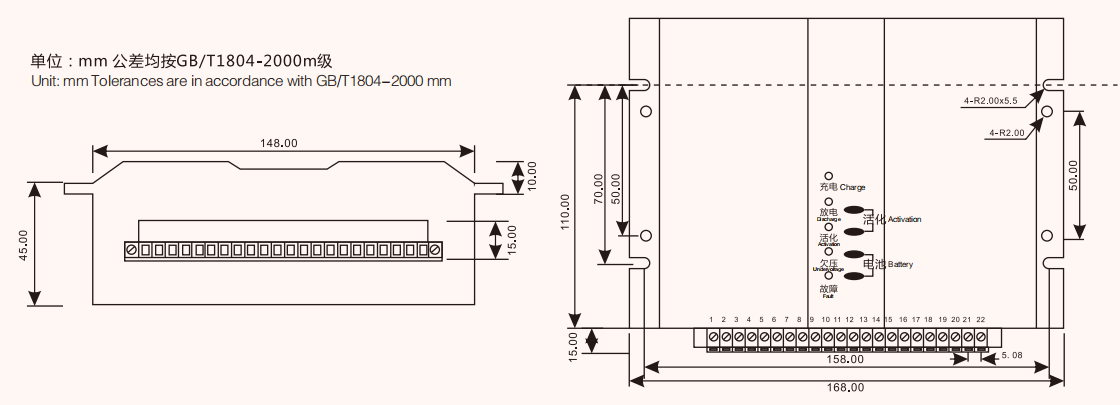

Installation Dimensions
