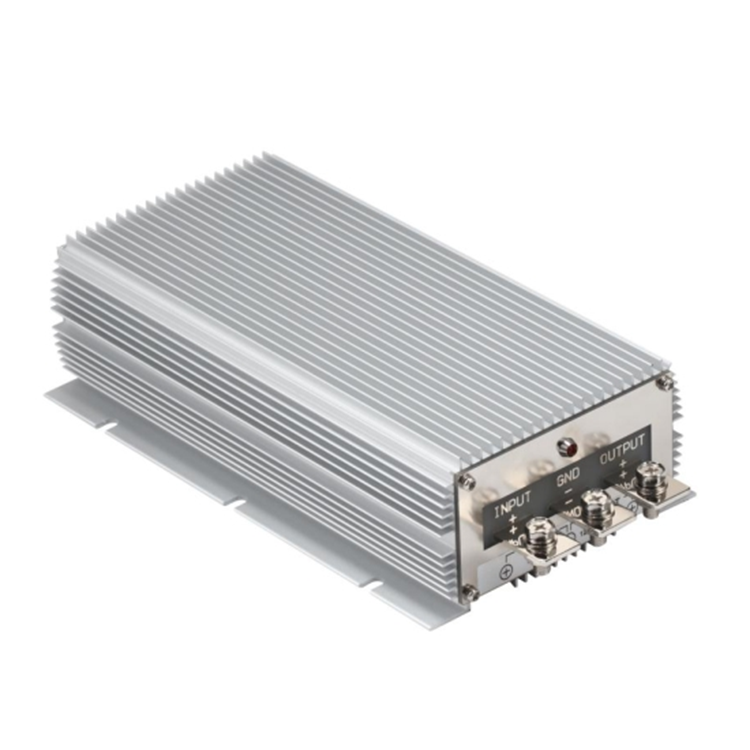

12V to 28V 30A 840W DC to DC Converter
The WEHO WH-B122830 is an extremely powerful DC-DC boost converter, supplying an impressive 840W for high-demand applications. It efficiently converts a 12VDC input to a high-current 28VDC, 30A output, maintaining a superior 94% efficiency to ensure optimal performance. Built for resilience, its fully sealed and waterproof design offers maximum protection against environmental hazards. The converter features essential safety mechanisms, including auto-recovering overcurrent protection and requires a 120A fuse for short-circuit protection. With a service life of over 100,000 hours, the WH-B122830 provides a formidable and reliable power source for critical systems.
If you have any questions, please do not hesitate to contact us at Email: [email protected]Our professionals will respond to you as soon as possible.
- Description
Summary
Rated output: power 840W
Input voltage: 12VDC
General specification
Model | WH-B122830 |
Rated Output Power (W) | 840W |
Rated Input Voltage (V) | 12VDC |
Rated Output Voltage (V) | 28VDC |
Voltage Range (V) | 10V-16VDC |
Starting Voltage (V) | 10VDC 100% load |
No-load Power Consumption (W) | < 0.5W |
Efficiency | 94% |
Voltage (V) | 28VDC |
Current (A) | 30A |
Voltage Tolerance | 1.5% |
Load Regulation | 3% |
Wave (MVP-p) | 500mv External 22UF capacitor ESR < 0.1Ω 100KHZ |
Over-current Protection | In the case of rated output, if the rated current exceeds 120%, the overcurrent protection will activate and recover automatically once the overcurrent subsides. |
Short Circuit Protection | Input requires adding a 120A fuse |
Input-Output | Non-isolated |
Waterproof | Fully sealed and waterproof |
Dimension | 180*127*63mm |
N.W. | 1800g |
Cooling Method | Natural Method |
Rated Temperature rise (℃) | 45℃ |
Reliability | >100000h |
Wire Indicator | Input positive 12V GND input output negative output positive 28V |
PIC and installation dimensions
