EDR dinrail 120w AC to DC single output switching power supply

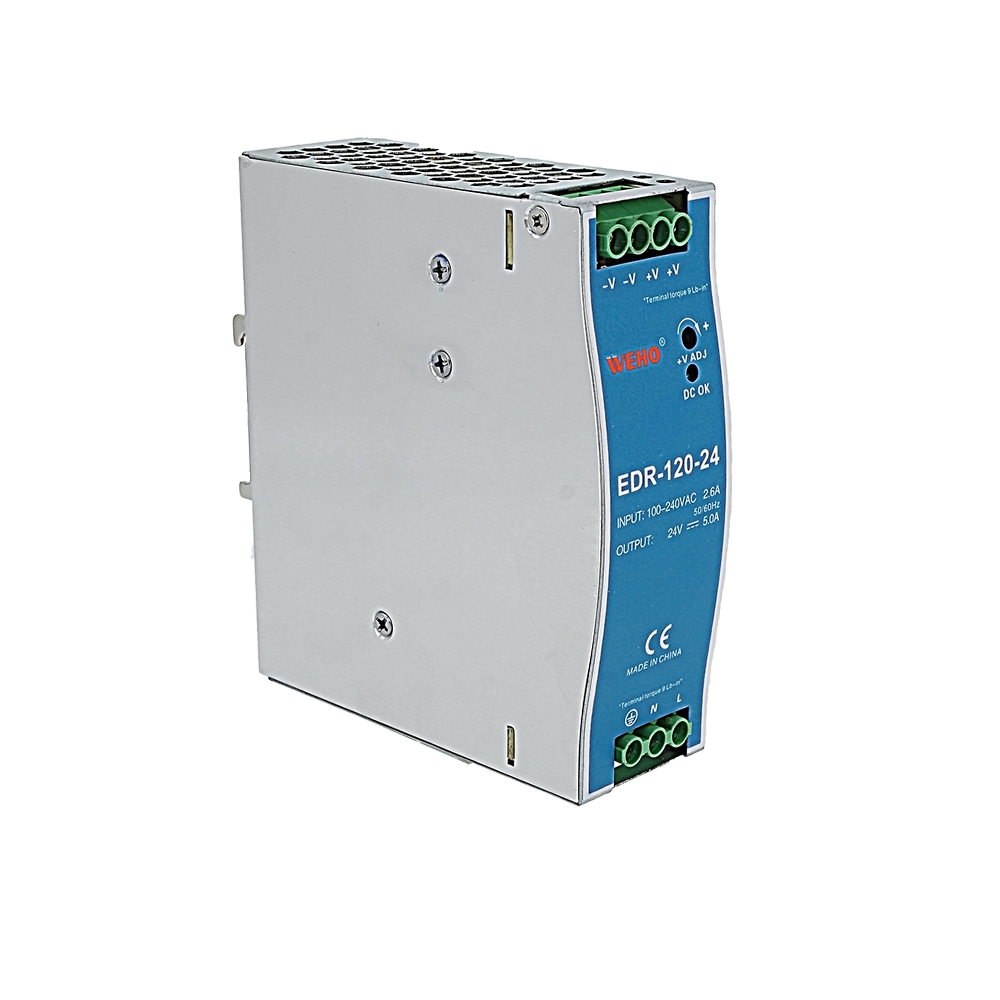

The WEHO EDR-120 is a single-output DIN-rail AC/DC power supply series. Input voltage: 90–264VAC or 127–370VDC; AC frequency: 47–63Hz. Select the 12V, 15V, 24V or 48V model. Datasheet efficiency is 83%, 83%, 86% and 87%, respectively. Operating temperature: -20°C to +60°C. Confirm the applicable load, installation and derating conditions before use. If you have any questions, please do not hesitate to contact us at Email: [email protected]

Download Request A Quote

Description

Specifications&Model

Model	EDR-120-12	EDR-120-15	EDR-120-24	EDR-120-48
DC Output Voltage	12V	15V	24V	48V
Rated Output Current	10A	8A	5A	2.5A
Output Current Range	0-10A	0-8A	0-5A	0-2.5A
Wave And Noise	100mVp-p	100mVp-p	120mVp-p	150mVp-p
Inlet Stability	±0.5%	±0.5%	±0.5%	±0.5%
Load Stability	±1%	±1%	±1%	±1%
DC Output Power	120W	120W	120W	120W
Efficiency	83%	83%	86%	87%
Adjustable Range For DC Voltage	10.8~13.2V	13.5~16.5V	21.6~26.4V	43.2~52.8V
AC input Voltage Range	90–264VAC / 127–370VDC; AC frequency: 47–63Hz
Input Current	3.3A/115V 2A/230V
AC Inrush Current	Cold-start inrush current: 20A at 115VAC; 35A at 230VAC.
Overload Protection	105%–130%; output cutoff; automatic recovery.
Over-Voltage Protection	Output shutdown; re-power on to recover.
Setup, Rise, Hold up Time	1200ms, 60ms/230VAC; 2500ms, 60ms/115VAC (at full load).
Withstand Voltage	I/P–O/P: 1.5kV; I/P–FG: 1.5kV; O/P–FG: 0.5kV; duration: 1 minute.
Isolation Resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working Temperature And Humidity	-20°C to +60°C (apply the applicable derating and installation conditions), 20%~90%RH

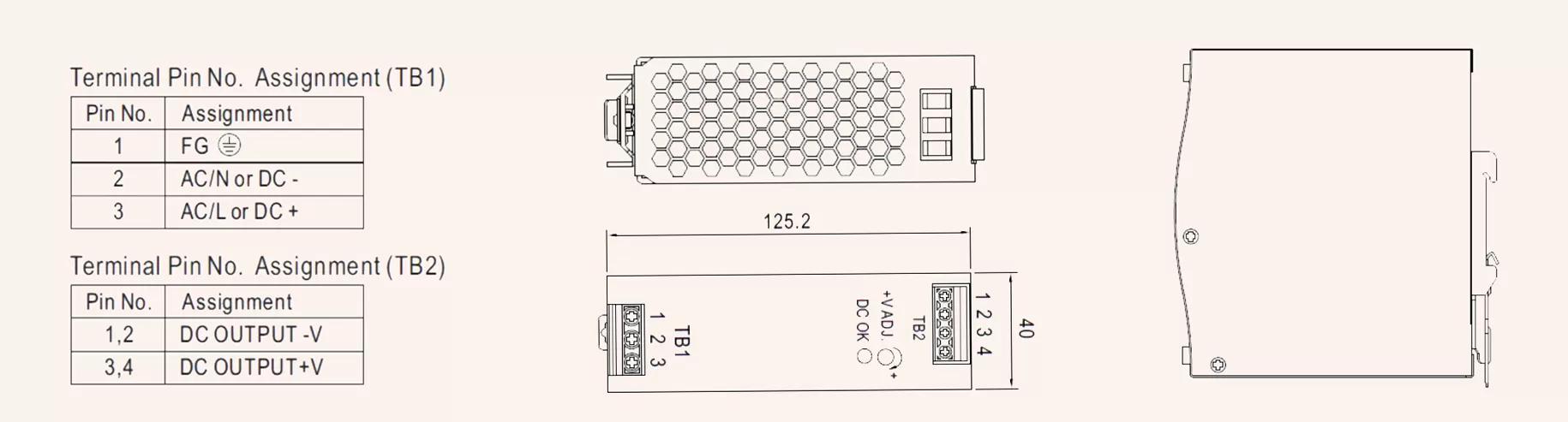

Overall Dimension	40×125.2×113.5mm
Weight	0.56kg
Safety standards	CE
