Industrial ac dc 1200w 100a 12v 24V 50A dc power supply

WeHo professional 1200W Switching SCN Series Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo Systems.

115V and 230V can be chosen by the switch.

Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply.

Low cost also makes it more acceptable for general usage.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model Performance SCN-1200-12 SCN-1200-24 SCN-1200-36 SCN-1200-48
DC Output Volta 12V 24V 36V 48V
Output Voltage Tolerance(Note 2) ±1% ±1% ±1% ±1%
Rated Output Current 100A 50A 33.3A 25A
Output Current Range 0-100A 0-50A 0-33.3A 0-25A
Ripple And Noise (Note 3) 120mVp-p 200mVp-p 200mVp-p 240mVp-p
Inlet Stability (Note 4) ±0.5% ±0.5% ±0.5% ±0.5%
Load Stability (Note 5) ±1% ±0.5% ±0.5% ±0.5%
DC Output Power 1200W 1200W 1200W 1200W
Efficiency 80% 85% 86% 87%
DC Voltage Adjustable Range ±10% ±10% ±10% ±10%
Impact Current Cold start current 45A/230VAC
Overload Protection <3.5mA/240VAC
Over-Voltage Protection 105%~135% type: FOLDBACK cut off output reset: Automatic recovery
High-Temperature Protection 13.8~16.2V 27.6~32.4V 31~36.5V 57.6~67.2V
Temperature Coefficient RTH1 OR RTH2>=55°C FAN ON, <=45°C FAN OFF, >=70°C cut off output
Start-Up, Upper, Retention Time ±0.03%°C(0~50°C)
Shock Resistance 2s, 50ms, 20ms
Withstand 10~500Hz, 2G 10min./1circle, time: 60min., axes
Insulation Resistance Input to Output Isolation: 3KVAC,input&shell: 1.5KVAC output &shell: 0.5KVAC
work Temperature/ Humidity Input to Output Isolation, input&shell, output &shell: 500VDC/100M Ohms
Storage Temperature, Temperature -10°C ~ +50°C, 20%~90%RH
Outline Dimension -20°C ~ +85°C, 10%~95%%RH
Weight 291*132*68mm shell: 910
Safety Standards 5Kgs
EMC Standard UL1950, TUV EN60950
Model Performance CISPR22(EN55022), IEC1000-42, 3, 4, 5, 6, 8, 11 IEC100-3-2

OEM and ODM options are available to accommodate your specific requirements.

Product Packing: 2 pieces per carton and standard packing for exporting.

Input voltage: 90-132/180-264 VAC, selected by switch

We manufacture all transformers ourselves.

The product has completed the 100% full load aging test.

All inquiries will receive a response within 12 hours.

This shipment is to be paid for by the recipient (“freight collect”) or by the sender (“freight prepaid”).

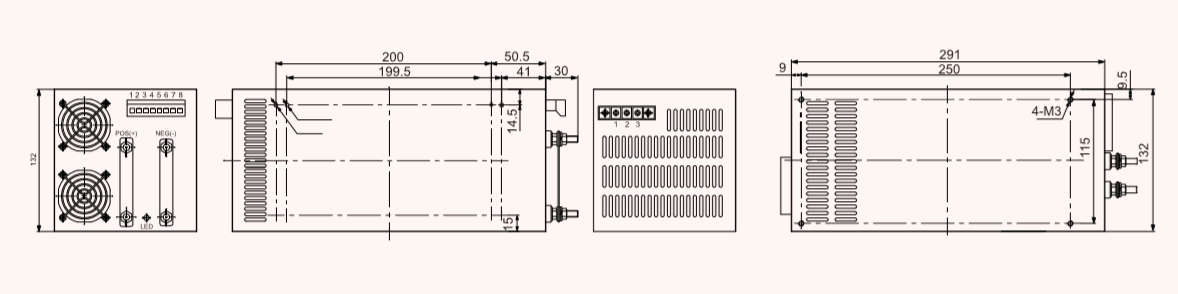

Product size: 291*132*136mm (L * W * H)
