Model | S-100-3 | S-100-5 | S-100-7.5 | S-100-12 | S-100-15 | S-100-24 | S-100-27 | S-100-48 |
DC output voltage | 3V | 5V | 7.5V | 12V | 15V | 24V | 27V | 48V |
Output voltage range(Note:2) | ±2% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
Wave and noise(Note:3) | 150mV | 150mV | 150mV | 150mV | 150mV | 150mV | 200mV | 240mV |
Inlet stability(Note:4) | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
Load stability(Note:5) | ±1% | ±1% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.3% | ±0.2% |
DC output power | 60W | 100W | 102W | 102W | 100.5W | 108W | 99.9W | 96W |
Efficiency | 70% | 78% | 81% | 81% | 81% | 84% | 84% | 84% |
Adjustable range for DC voltage | 2.85~3V | 4.75~5.5V | 6.75~8.25V | 10.8~13.2V | 13.5~16.5V | 21.6~26.4V | 26~32V | 43.2~52.8V |
Input current | 2.4A/115V 1.2A/230V | |||||||
AC inrush current | Cold-start current 30A/115V 60A/230V | |||||||
Leakage current | <1mA/240VAC | |||||||
Overload protection | 105%~150% | 150%~200% | 105%~150% | |||||
Type: Output shutdown Reset: Recycle AC ON/OFF | ||||||||
Temperature coefficient | ±0.03%/°c(0~50°c) | |||||||
Setup, rise , hold up time | 200ms,100ms, 30ms | |||||||
Vibration | 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | |||||||
Withstand voltage | Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC | |||||||
Working temperature and humidity | -10°c~+60°c(Refer to output derating curve), 20%~90%RH | |||||||
Weight | 0.65Kgs |
Product
New Products Alert
WeHo will only notify you by email when a new product is launched.
We won’t send you any emails at other times.
Contact Us
- Skype: Anniechina3
- Wechat: +86-15869492061
- WhatsApp: +86-15869492061
- Tel: 0086-577-61777088
- Fax: 0086-577-61777072
- Email: [email protected]
- Address: No. 231, Weiliu Road, Yueqing Economic Development Zone, Yueqing, Zhejiang, China (Mainland)

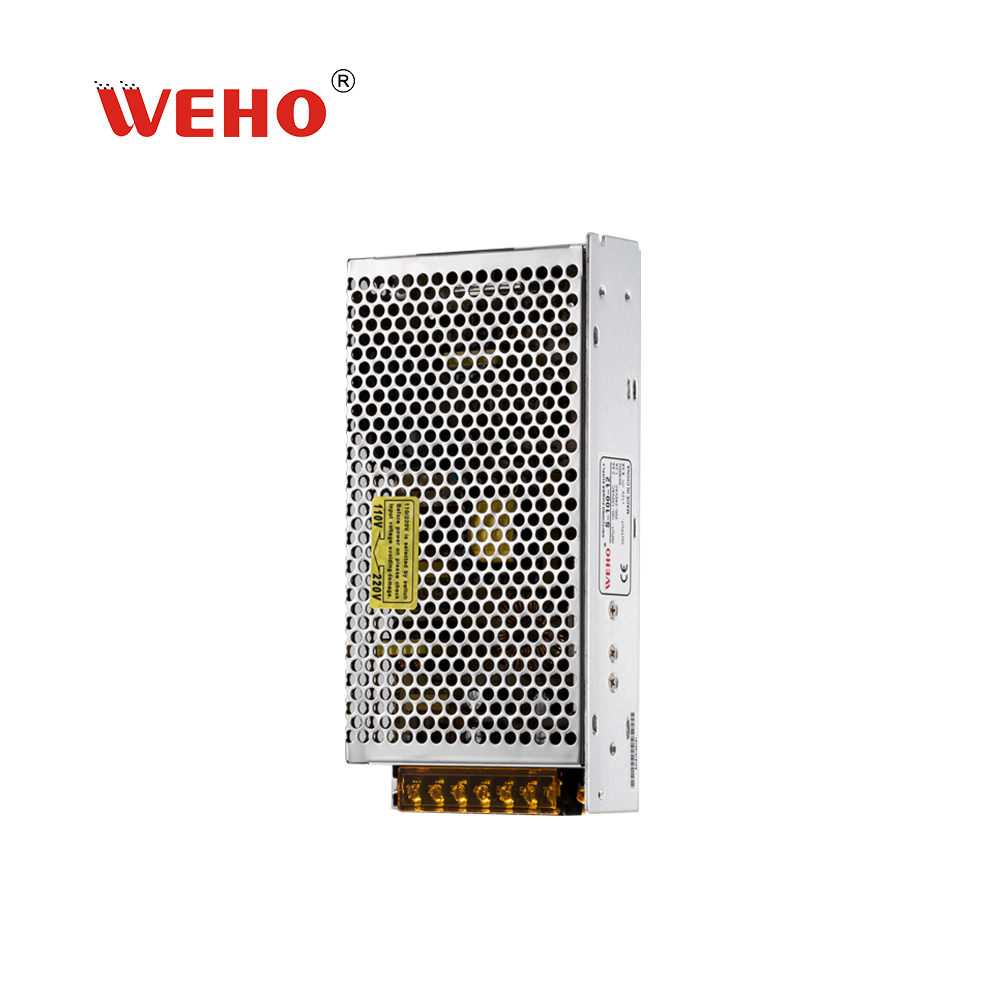

S-100W series normal single switching power supply
WeHo’s S-100W Switching Power Supply is a reliable switching power supply with high quality material, durable and safety in use.
A Switching Power Supply which can keep the voltage stability.
Great switching power supply for LED Strip Light Screen Lighting Monitor Power Supply
110V/220V AC input range, cooling by free air convection.
White cap over the connectors for security setting of dust-proof protection for electrical shock
Input voltage :90-132/180-264VAC , changed by switch
Protections: Short circuit / Overload / Over voltage
100% full load burn-in test
Rated Power:100W
IP Code : IP20

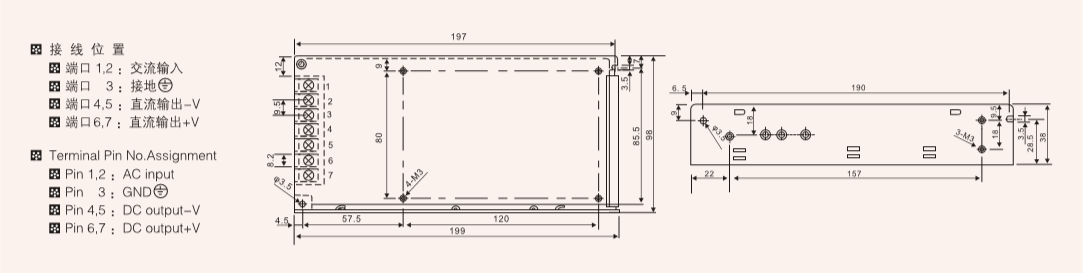

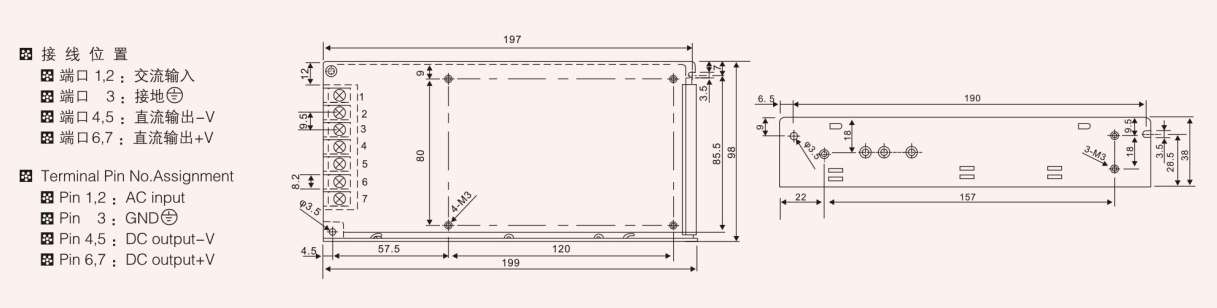

Size: 199*98*38mm (L * W * H)
