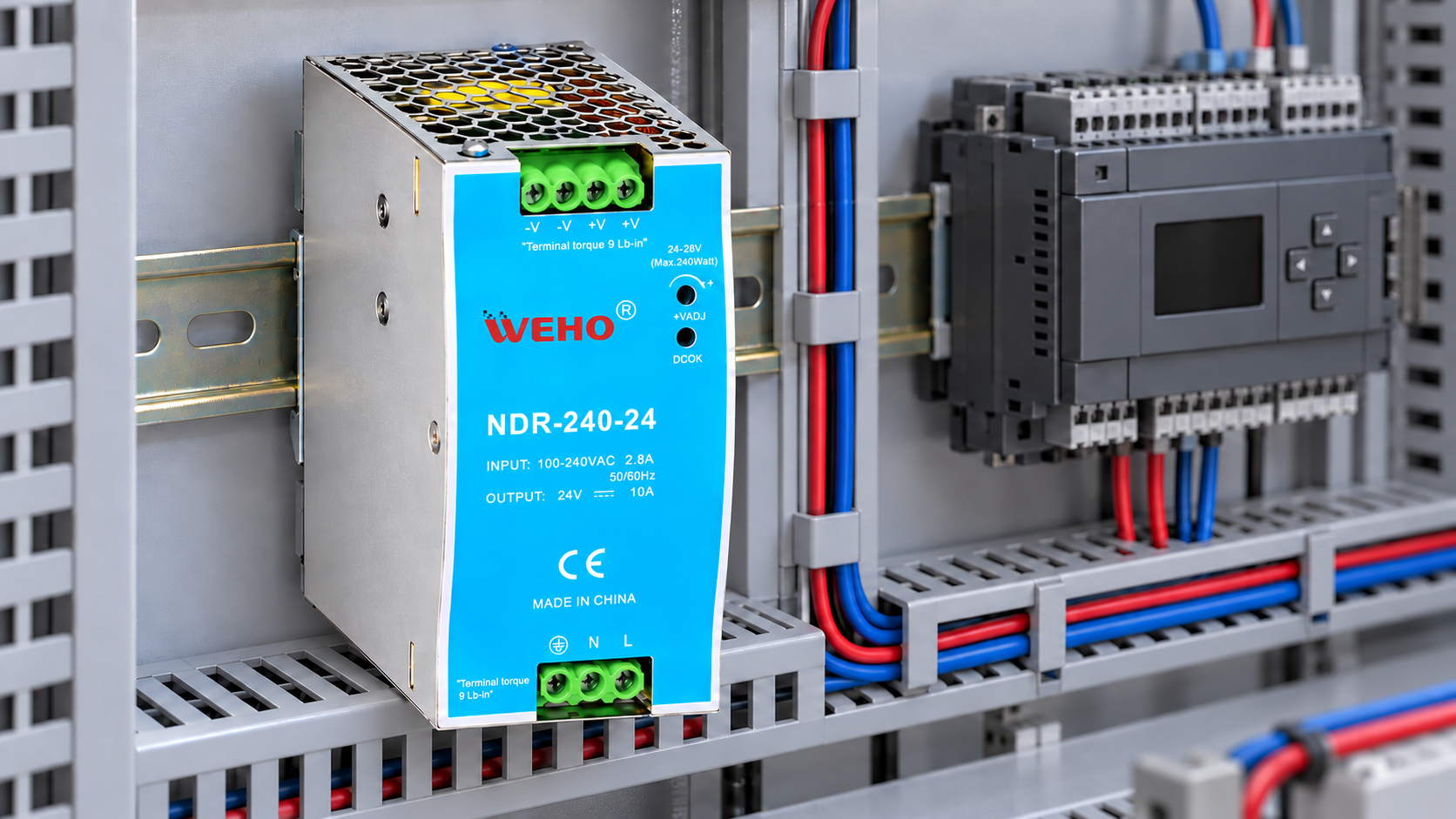

A 24 V DC voltage-drop calculation subtracts the complete distribution drop from the power supply’s lowest specified output to find the voltage a control-panel load receives. Compare the result with the load’s minimum input, then check its maximum input at light load. The worked example below includes conductor, contact and switch losses, and compares two layouts without increasing the source setting.
Table of Contents
Start with the voltage limits at each load
For a panel builder, “24 V DC” identifies a nominal system voltage. It does not define an acceptable operating window for every controller, display, sensor, or actuator. Record each exact device’s minimum operating voltage, maximum operating voltage, and any separate startup requirement from its current documentation.
Put the measurement location beside each limit. If a device requires a minimum voltage at its power connector, measure there. A cabinet-terminal reading answers a different question. The referenced conductor-loss guidance likewise calls for considering supply-voltage variation as well as conductor losses.
The useful output is a voltage budget for each branch: the lowest available voltage, the device’s minimum requirement, and the remaining margin.
Find the supply’s lowest and highest output voltage
Ask for the guaranteed output range at the intended input voltage, output current, ambient temperature, and output setting. Separate initial setting accuracy, line regulation, load regulation, temperature effects, and dynamic response. These describe different conditions; the referenced power-supply terminology guide explains the distinctions between static input, load, and temperature variation.
Read how the manufacturer combines these terms. If a total tolerance already includes setting and regulation effects, counting them again exaggerates the voltage loss. A room-temperature setting tolerance, however, may leave other operating conditions unaccounted for. Use the documented bound for the intended conditions, rather than a typical value.
For the hypothetical example below, a nominal 24.00 V source has a combined steady-state tolerance of ±2%. Its minimum is 23.52 V and its maximum is 24.48 V.
Add the losses along the complete branch
For a simple steady DC branch carrying the same current through its series elements, calculate the complete distribution drop and the minimum load voltage:
ΔVbranch = Ibranch × Rloop + Ibranch × Rcontacts + Vswitch
Vload,min = Vsource,min − ΔVbranch
Here, Rloop includes the outward and return conductors, and Rcontacts is the combined series contact resistance. Count each loss once; do not double a conductor resistance that already represents the complete loop.
Include connectors, terminal contacts, and distribution components. For a component specified by voltage drop, use its value at the relevant current and temperature. The referenced explanation of load-lead losses shows why voltage at a remote load can differ from the regulated source output.
A shared feeder needs a separate row from each outgoing branch. The feeder carries the combined simultaneous current of its downstream loads; a branch carries its own current. Applying only the remote device’s current to the shared feeder can make a weak design appear acceptable. Record the conductor resistance at the relevant temperature, with its source and tolerance.

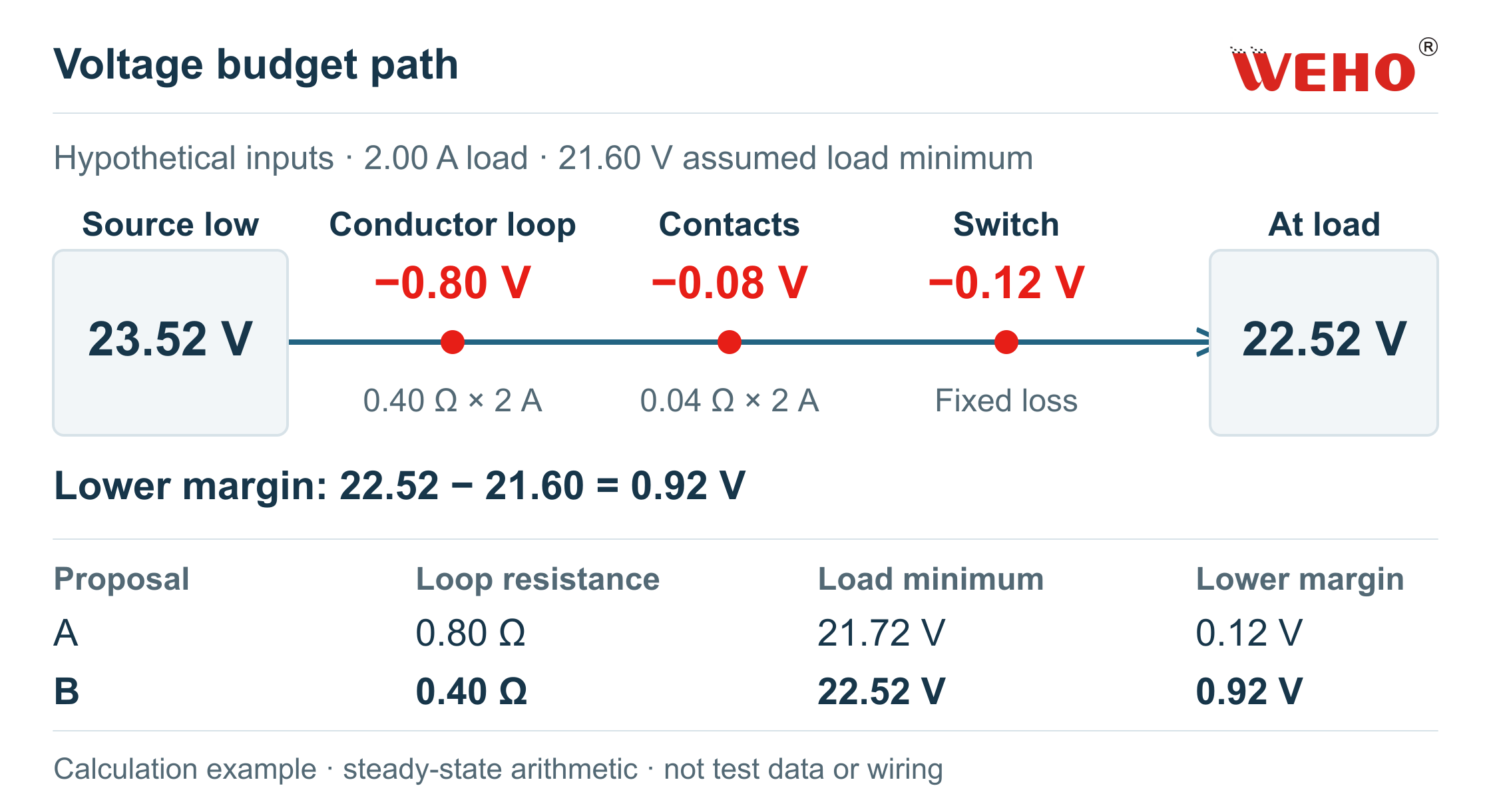

Worked example: compare two 2 A branch layouts
In this worked example, a hypothetical branch load requires 21.60–26.40 V in steady operation and draws 2.00 A. Proposal A uses a 0.80 Ω conductor loop; Proposal B reduces it to 0.40 Ω. Both include 0.04 Ω of contact resistance and a 0.12 V distribution-switch drop at 2.00 A.
| Budget item | Calculation or input | Proposal A (0.80 Ω loop) | Proposal B (0.40 Ω loop) |
|---|---|---|---|
| Nominal source setting | Example setting | 24.00 V | 24.00 V |
| Minimum source output | 24.00 × (1 − 0.02) | 23.52 V | 23.52 V |
| Conductor loop drop | 2.00 A × conductor loop resistance | −1.60 V | −0.80 V |
| Contact resistance drop | 2.00 A × 0.04 Ω | −0.08 V | −0.08 V |
| Distribution switch drop | Assumed value at 2.00 A | −0.12 V | −0.12 V |
| Predicted load minimum | Minimum source minus all branch drops | 21.72 V | 22.52 V |
| Device minimum requirement | Hypothetical device limit | 21.60 V | 21.60 V |
| Remaining lower margin | Predicted minimum minus 21.60 V | 0.12 V | 0.92 V |
The predicted minimum is 0.92 V above the assumed load limit. With the same current and other losses, the conductor loop would consume all remaining voltage margin at (23.52 − 21.60 − 0.20) ÷ 2.00 = 0.86 Ω. Cable selection must also satisfy current capacity, installation and protection requirements, with any reserve required by the project.
Reducing the conductor-loop resistance from 0.80 Ω to 0.40 Ω recovers 0.80 V without raising the source setting. Proposal A’s 0.12 V positive margin makes uncertainties in resistance and component drop especially important; Proposal B leaves 0.92 V for comparison with the project’s required reserve.
Decision for this example: Carry Proposal B forward for the voltage-budget review, then confirm actual resistance, component drops and the project’s required reserve. Check conductor capacity and startup voltage before selecting the final cable and supply.
Check light load, startup and load changes
At light load, resistive drop shrinks. For a simple passive distribution path, the load can approach the source’s maximum output. Compare that upper bound with every connected device’s maximum continuous input. Then evaluate startup overshoot or energy returned by a load separately where relevant. Raising the source setting to help a distant device can overvoltage a nearby device.
Here, conservatively allowing zero distribution drop gives 24.48 V at the load and an upper margin of 26.40 − 24.48 = 1.92 V. This steady-state upper check does not include overshoot.
Repeat the lower-voltage check for simultaneous machine states. For each state, update segment currents and the source’s applicable output bound. A static resistance calculation does not predict supply recovery, current limiting, or fast cable effects. Validate important transitions at the load with a measurement method that captures their duration.
If remote sensing is proposed, confirm that the exact supply supports it and follow its installation instructions. The external remote-sensing guidance explains the model-specific compensation limit. The feature can compensate for a permitted voltage drop; conductor power loss still remains.
Use measurements to locate an unexpected voltage drop
Download the voltage-budget worksheet to compare both layouts. Recalculate with the formulas above when changing inputs; the CSV contains static example values. Keep the source document, resistance basis and operating state with each budget.
Compare the source and load voltages during the same operating state, then follow the result:
- Source voltage is within its expected range, but the load voltage is too low: recheck branch current and the complete path, including contacts and distribution-device drops.
- The source itself is below the planned minimum: check actual input, load and cabinet conditions against the source data before changing the distribution budget.
- The dip appears only during switching or startup: capture that event at the source and load. A steady reading cannot establish its depth or duration.
Identify a candidate by its complete model and documented output limits, then compare those limits with the voltage budget. Use the 24 V DIN rail power supply sizing guide to review simultaneous demand and continuous-current capacity separately. At the same branch current and resistance, the resistive voltage drop remains unchanged when the supply’s current rating increases.
If the review points to a different supply, use the replacement compatibility checklist before substitution and the 24 V branch-protection review to assess the proposed source and downstream devices together.
Questions about 24 V voltage-drop calculations
Is a fixed 5% voltage-drop limit enough?
Only if it also keeps each device inside its specified operating window across the reviewed conditions. A percentage target does not account for the supply’s own tolerance or a device’s minimum startup voltage.
Does every terminal need a resistance estimate?
Every meaningful series loss needs a defensible entry. Use component documentation or a suitable measurement; avoid adding a guessed per-terminal allowance that hides uncertainty.
Can I reuse the 2 A example for a load specified in watts?
First establish its current over the intended input-voltage range and operating states. The worksheet assumes 2.00 A; it cannot represent a different current profile simply by changing the device’s wattage label.
