| Model / Specification | NDR-240-24 | NDR-240-48 |
| DC Output Voltage | 24V | 48V |
| Rated Output Current | 10A | 5A |
| Output Current Rage | 0-10A | 0-5A |
| Wave And Noise (Note3) | 150mVp-p | 150mVp-p |
| Inlet Stability (Note4) | ±0.5% | ±0.5% |
| Load Stability (Note5) | ±1% | ±0.5% |
| DC Output Power | 240W | 240W |
| Efficiency | 88% | 85% |
| Adjustable Range For DC Voltage | 21.6-26.4V | 43.2-52.8V |
| AC Input Voltage Range | 88~264VAC 47~63HZ;120~370VDC | |
| Input Current | 3.5A/115V 1.8A/230V |
|
| AC Impulse Current | Cold-start current: 30A/115V 50A/230V |
|
| Overload Protection | 105%~150% Type: Pulsing hiccup shutdown Reset: auto-recovery | |
| High-Temperature Protection | 100°C±5°C (TSW1) | |
| Setup Rise Hold-Up Time | 1500ms,100ms/230VAC | |
| Withstand Voltage | Input and output interval: 3KVAC, Input and enclosure: 1.5KVAC, Output and enclosure: 0.5KVAC |
|
| Isolation Resistance | Input and output interval, Input and enclosure, Output and enclosure: 500VAC/100M Ohms | |
| Working Temperature And Humidity | -10°C ~ +50°C, 20%~90%RH | |
| Store Temperature And Humidity | -20°C ~ +85°C, 10%~95RH | |

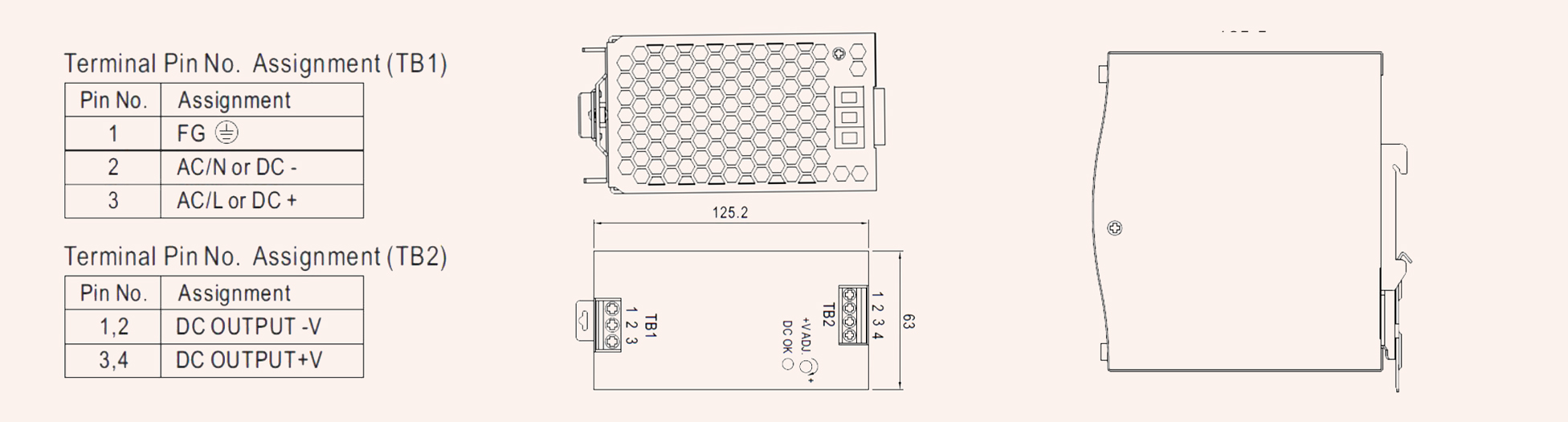

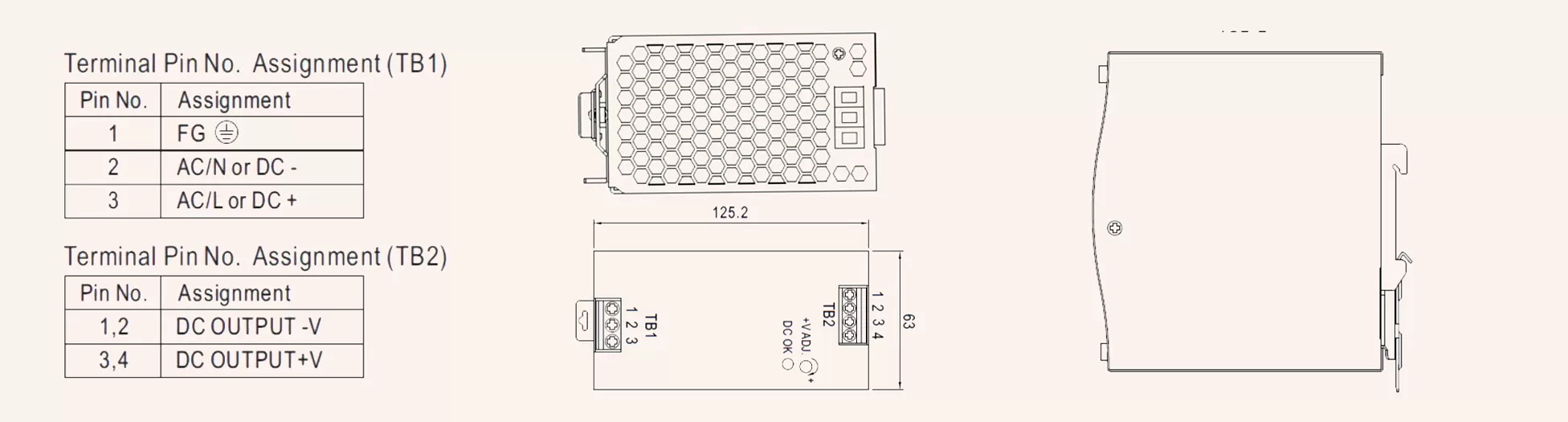

| Overall Dimension | 125.2*125.2*100mm | |
| Weight | 1.2Kgs 20PCS/14.4KG/1.2CUFT | |
| Safety Standards | CE | |
NDR dinrail 240W AC to DC single output switching power supply
NDR-240 is a slim line DIN rail Class I switching power supply.
Designed with a fully isolated plastic case to prevent user contact and the risk of shock.
Featuring up to 88% efficiency this series can be cooled using only free air convection up to 60°C which significantly increases the reliability and lifetime of the power supply.
Other standard features include its low no-load power consumption, to save energy, short circuit, overload, and over voltage protections, and DC OK relay contact with LED indicator for monitoring the PSU status.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
This product with built-in comprehensive over/under voltage, over current, overload, overhead, over temperature, and short circuit protection functions
NDR din-rail 240W AC to DC single output switching power supply is an Electro-mechanical apparatus.
The product can be cooled by convection of natural air.
This product can be used in industrial control systems
Factory automation
