The WeHo LRS series is an enclosed type power supply. This is a style that holds the switching AC-DC circuitry within a metal mesh frame where connections are made via screw-in terminals. This is the easiest power source to hook up outside of the GST series. These power supplies can be hardwired or can work with a simple power cord connecting from the input terminals to plug in the wall.

The LRS switching AC/DC power supplies are single-output transformers that are packed into a low-profile design sitting at only 30mm tall (1.18”). They deliver very low no loading power consumption, allowing the end LED system to easily meet the worldwide energy requirement. The LRS delivers the best price-to-performance solution on our site while having a full range of protection functions.

HIGH WATTAGE: UP to 400 Watts!
Input Power: 90-264VAC
Output Voltage: 12, 15, 24, 36, 48VDC
Highly Efficient & Reliable
Connections: Screw-in Terminals

Low Line & High Line Voltage

LRS-35/50/75/100: Adopt the full range 85-264VAC input.

LRS-150/200/350/400: Adjustable input voltage 115VAC or 230VAC (select via switch)

Natural Cooling

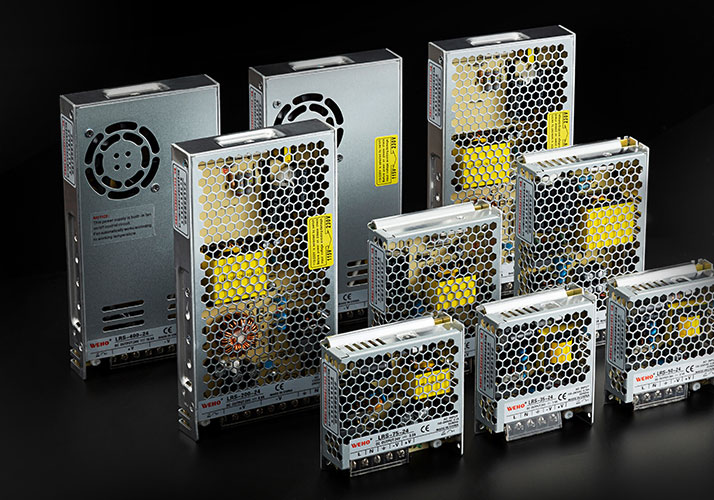

Open Frame Switching Power Supplies, as you can see from the picture, are power sources where the circuit board and components are encased in a metal casing with small holes throughout. This aids in air flow and cooling as the components are all open to the outside air. When dealing with a lot of power, it is best to make sure there is a way to control the heat. Operating temperatures vary by size, see datasheet documentation below for exact technical info on each one.

The LRS-350 series actually has a built-in fan to aid in heat control. This is the only model that uses this design as it is carrying larger loads and heat is more likely.

Connections

All connections are made via screw-in terminals. This makes it super easy to connect all your wires with input ports for your line voltage and couple difference output ports if you have multiple lights powered by the one power supply.

Mounting

There are mounting holes on the power supply if you need to mount to an object. Another way to mount would be using double sided velcro or tape.

Comparison Specifications
Model AC Input Output Dimensions
Voltage Range (L) x (W) X (H)
Min. Max. Volts Current Watts mm
LRS-35-12 85 264 12V 3A 35W 99 X 82 X 30
LRS-35-15 85 264 15V 2.4A 35W 99 X 82 X 30
LRS-35-24 85 264 24V 1.5A 35W 99 X 82 X 30
LRS-35-36 85 264 36V 1A 35W 99 X 82 X 30
LRS-35-48 85 264 48V 0.8A 35W 99 X 82 X 30
LRS-50-12 85 264 12V 4.2A 50W 99 X 82 X 30
LRS-50-15 85 264 15V 3.4A 50W 99 X 82 X 30
LRS-50-24 85 264 24V 2.2A 50W 99 X 82 X 30
LRS-50-36 85 264 36V 1.45A 50W 99 X 82 X 30
LRS-50-48 85 264 48V 1.1A 50W 99 X 82 X 30
LRS-60-12 85 264 12V 5A 60W 99 X 82 X 30
LRS-60-15 85 264 15V 4A 60W 99 X 82 X 30
LRS-60-24 85 264 24V 2.5A 60W 99 X 82 X 30
LRS-60-36 85 264 36V 1.65A 60W 99 X 82 X 30
LRS-60-48 85 264 48V 1.25A 60W 99 X 82 X 30
LRS-75-12 85 264 12V 6A 75W 99 X 97 X 30
LRS-75-15 85 264 15V 5A 75W 99 X 97 X 30
LRS-75-24 85 264 24V 3.2A 75W 99 X 97 X 30
LRS-75-36 85 264 36V 2.1A 75W 99 X 97 X 30
LRS-75-48 85 264 48V 1.6A 75W 99 X 97 X 30
LRS-100-12 85 264 12V 8.5A 100W 129 X 97 X 30
LRS-100-15 85 264 15V 7A 100W 129 X 97 X 30
LRS-100-24 85 264 24V 4.5A 100W 129 X 97 X 30
LRS-100-36 85 264 36V 2.8A 100W 129 X 97 X 30
LRS-100-48 85 264 48V 2.3A 100W 129 X 97 X 30
LRS-120-12 85 264 12V 10A 120W 129 X 97 X 30
LRS-120-15 85 264 15V 8A 120W 129 X 97 X 30
LRS-120-24 85 264 24V 5A 120W 129 X 97 X 30
LRS-120-36 85 264 36V 3.3A 120W 129 X 97 X 30
LRS-120-48 85 264 48V 2.5A 120W 129 X 97 X 30
LRS-150-12 115 230 12V 12.5A 150W 159 X 97 X 30
LRS-150-15 115 230 15V 10A 150W 159 X 97 X 30
LRS-150-24 115 230 24V 6.5A 150W 159 X 97 X 30
LRS-150-36 115 230 36V 4.3A 150W 159 X 97 X 30
LRS-150-48 115 230 48V 3.3A 150W 159 X 97 X 30
LRS-200-12 115 230 12V 17A 200W 215 X 115 X 30
LRS-200-15 115 230 15V 14A 200W 215 X 115 X 30
LRS-200-24 115 230 24V 8.8A 200W 215 X 115 X 30
LRS-200-36 115 230 36V 5.9A 200W 215 X 115 X 30
LRS-200-48 115 230 48V 4.4A 200W 215 X 115 X 30
LRS-350-12 115 230 12V 29A 350W 215 X 115 X 30
LRS-350-15 115 230 15V 23.2A 350W 215 X 115 X 30
LRS-350-24 115 230 24V 14.6A 350W 215 X 115 X 30
LRS-350-36 115 230 36V 9.7A 350W 215 X 115 X 30
LRS-350-48 115 230 48V 7.3A 350W 215 X 115 X 30
LRS-400-12 115 230 12V 33A 400W 215 X 115 X 30
LRS-400-15 115 230 15V 26.7A 400W 215 X 115 X 30
LRS-400-24 115 230 24V 16.5A 400W 215 X 115 X 30
LRS-400-36 115 230 36V 11A 400W 215 X 115 X 30
LRS-400-48 115 230 48V 8.3A 400W 215 X 115 X 30
