60V-72V to 12V 20A 240W DC to DC Converter
WH-C60721220 DC-DC step-down converter. For model selection, share your DC source, required output and load profile, together with the installation conditions. Confirm the exact model datasheet and application requirements before ordering.
Email: [email protected]
Our professionals will respond to you as soon as possible.
- Description
Summary
Rated output: power 240W
Input voltage: 60VDC
Wire Length: 160mm±10mm
General specification
| Model | WH-C60721220 |
| Rated Output Power (W) | 240W |
| Rated input voltage (V) | 60VDC |
| Rated output voltage (V) | 12VDC |
| Input voltage range (V) | 30V-90VDC |
| Starting voltage (V) | 30VDC 100%Load |
| No-load power consumption (W) | < 3W |
| Efficiency | 96% |
| Output voltage (V) | 12VDC |
| Output current (A) | 20A |
| Voltage tolerance | 1% |
| Load regulation | 3% |
| Wave (MVP-p) | < 250mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ |
| Over current protection | In the case of rated output, if the current exceeds 120% of the rated current, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears. |
| Short circuit protection | Equivalent to a maximum current of 22A and an output voltage of 0V |
| Input-output | Non-isolated |
| Waterproof | Fully sealed and waterproof |
| Dimension | 100×80×38mm |
| N.W. | 300g |
| Cooling method | Natural Method |
| Rated temperature rise ℃) | 45℃ |
| Reliability | >100000h |
| Wire indicator | Input positive (red), input negative (black), output negative (black), output positive (yellow), lead length=160mm±10mm |

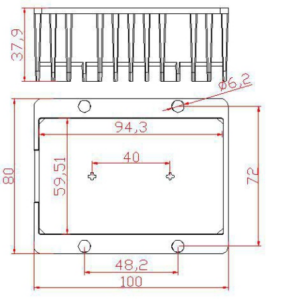

PIC and installation dimensions
