| Model | MS-60-12 | MS-60-15 | MS-60-24 | |
| Output | DC Output Voltage | 12V | 15V | 24V |
| Output Voltage Tolerance | ±1% | ±1% | ±1% | |
| Rated Output Current | 5A | 4A | 2.5A | |
| Output Current Range | 0～5A | 0～4A | 0～2.5A | |
| Output Power | 60W | 60W | 60W | |
| Ripple And The Noise | 100mVp-p | 120mVp-p | 120mVp-p | |
| Dc Voltage Adjustable Scope | ±10% | ±10% | ±10% | |
| Start, Rise, Keep Time | 600ms, 30ms, 20ms/230VAC | |||
| Input | Input Voltage Range | 170～264VAC 47～63Hz, 235～373VDC | ||
| Exchange Input Current | 0.8A/230VAC | |||
| Efficiency | 82% | 82% | 84% | |
| Impulse Current | Cold start current 30A/230VAC | |||
| Leakage Current | ＜1mA/240VAC | |||
| Protection Characteristics | Overload Protection | Protection way: hiccups mode, load abnormal conditions can be removed recovery | ||
| Environment | Working Temperature, humidity | -10℃～+60℃; 20%～90%RH(Please refer to reduce the specified number load curve ) | ||
| Keep Temperature, Humidity | -20℃～+85℃; 10%～95%RH No condensation | |||
| Vibrate Resistance | 10～500Hz, 2G 10min./ 1 cycle time, 60 minutes, the axis | |||
| Security | Compression Sex | Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC | ||
| Insulation Resistance | Between the input and output, the output and input: with ground: 100M Ohms/500VDC | |||
| Standards | Safety Standards | Accord with UL1012 | ||
| EMC Standard | Accord with EN55022, CLASSA | |||
| Other | Weight | 0.27kg 111*78*36（L*W*H） | ||
| Packaging | 0.27kg/50pcs/14.5kg/0.9CUFT | |||
| Note | 1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value. | |||
| 2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when. | ||||
| 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. | ||||
60W Single output mini-size power supply ms dc led smps
WeHo’s MS-60 series Power supply is a mini-type enclosed power supply
It is a high-price-to-performance power supply solution for different industrial applications.
The MS series operates at a high efficiency of up to 80% and features a metallic mesh case that enhances heat dissipation. The whole series can operate at -10℃ through 50℃ under air convection without a fan.
If you have any questions, please do not hesitate to contact us at Email: [email protected]. Our professionals will respond to you as soon as possible.
- Description
For performance problem items, for example 200W Industrial Power Supply, Faithful brand is ready to exchange them or replace them with an equivalent things, upon receipt the previous broken power supply. In Normal situation, our failure chance is 0.03%.
The white cap on the connector is for safety precautions against electric shock and dust protection
We make transformers and power inductors with pure coppers all by ourselves,
Weho stocks 150,000 sets of commonly used models, ensuring quick delivery.
This product is designed to resist up to 1.5KV surge input for 5 seconds.
Professional version with built-in EMI
The product has completed the 100% full load aging test.
Full range AC 85-264v input

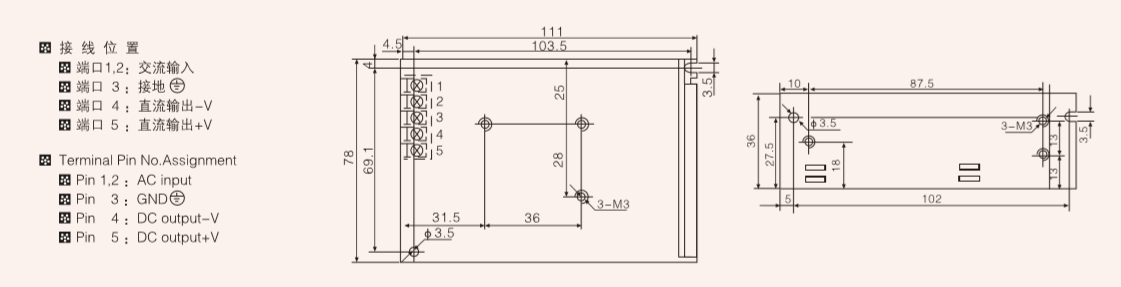

Size: 111*78*36mm (L * W * H)
