| Model | Q-120B | Q-120C | Q-120C | |||||||||
| CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH4 | |
| DC Voltage | 5V | 12V | -5V | -12V | 5V | 15V | -5V | -15V | 5V | 12V | 24V | -12V |
| Voltage Tolerance | ±2% | ±6% | ±6% | ±6% | ±2% | +10%, -5% | ±6% | +10% ,-5% | ±2% | ±6% | ±6% | ±6% |
| Rated Current | 11A | 4A | 1A | 1A | 10A | 3.5A | 1A | 1A | 8A | 2A | 2A | 1A |
| Current Range | 2-12A | 0.5-5A | 0.2-1A | 0.2-1A | 2-12A | 0.5-5A | 0.2-1A | 0.2-1A | 2-12A | 0.2-5A | 0.2-2A | 0.2-1A |
| Ripple & Noise | 80 mVp-p | 120 mVp-p | 80 mVp-p | 120 mVp-p | 80 mVp-p | 150 mVp-p | 80 mVp-p | 150 mVp-p | 80 mVp-p | 120 mVp-p | 180 mVp-p | 120 mVp-p |
| DC Adjustment Range | CH1:-5%,+10% | |||||||||||
| Setup,Rise,Hold Time | 200ms, 50ms, 20ms at full load | |||||||||||
| Voltage Range | 88~132 VAC / 176~264 VAC47-63Hz;selected by switch 240~370VDC | |||||||||||
| AC Current | 2.8A/115 V1.6A/ 230 V | |||||||||||
| Efficiency | 77% | 76% | 80% | |||||||||
| Inrush Current | Cold start 35A | |||||||||||
| Leakage Current | <3.5mA/240VAC | |||||||||||
| Over Load | 105%~135% | |||||||||||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||||
| Over Voltage | CH1:115%~135% | |||||||||||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||||
| Working Temp., Humidity | _10~+50 20%~90 %RH | |||||||||||
| Storage Temp., Humidity | -20~+85 10%~95 %RH | |||||||||||
| Vibration | 10~500Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||||||||||
| Withstand Voltage | I/P-O/P:3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC | |||||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||||||||||
| Safety Standard | Design refer to 1950,TUV EN60950 | |||||||||||
| EMC Standard | Design reefer to EN55022(CISPR22),EN61000-3-2,-3,EN55024,EN61000-4-2,3,4,5,6,8,11; ENV50204 | |||||||||||
| Weight | 0.9Kg | |||||||||||
| Packing | 42*31.5*26CM/20PCS/18KG | |||||||||||
Product
New Products Alert
WeHo will only notify you by email when a new product is launched.
We won’t send you any emails at other times.
Contact Us
- Skype: Anniechina3
- Wechat: +86-15869492061
- WhatsApp: +86-15869492061
- Tel: 0086-577-61777088
- Fax: 0086-577-61777072
- Email: [email protected]
- Address: No. 231, Weiliu Road, Yueqing Economic Development Zone, Yueqing, Zhejiang, China (Mainland)

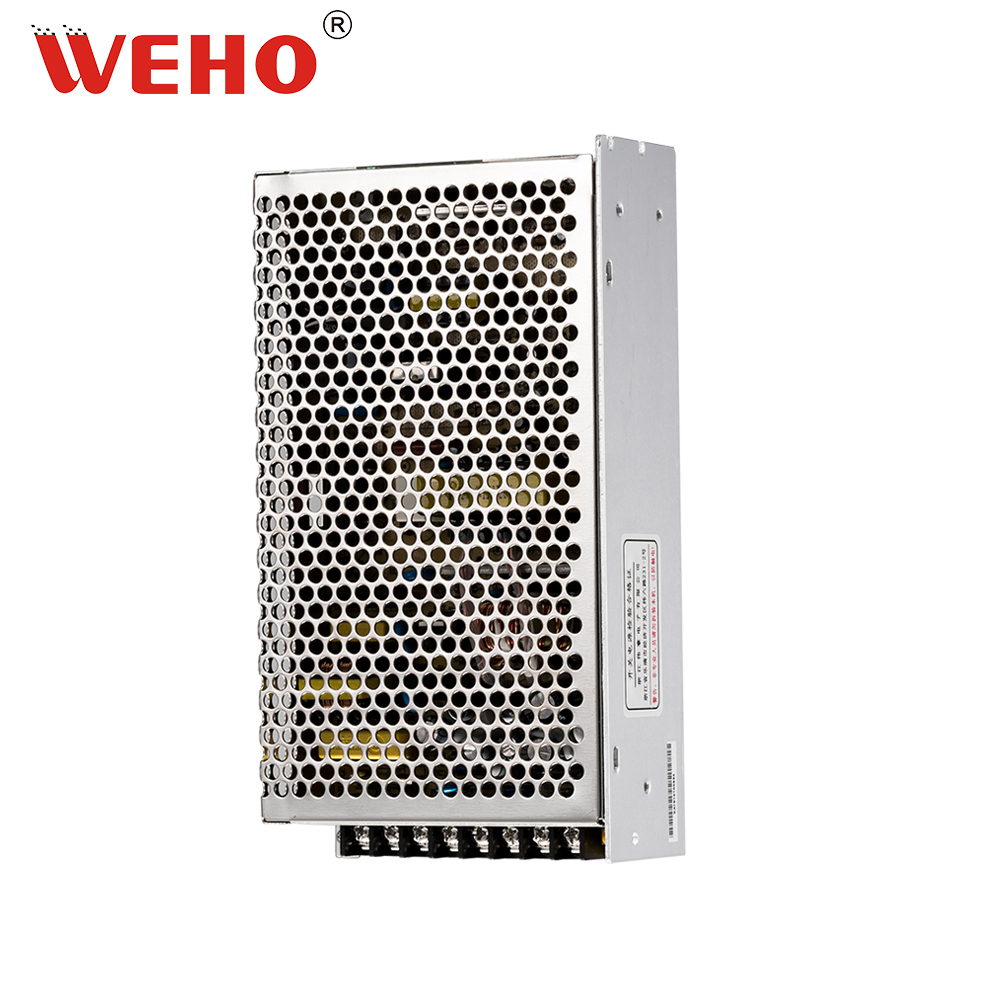

CE approved 120W Quad output switching power supply
WeHo’s  Q-120 Series is a AC/DC multi-output Power supplies  which  standard models that offer.
Q-120  that are available multiple output supply that can be configured into  many combinations and up to  4 outputs.
WeHo  focus on producing high quality power adapters, stable output.
They are highly flexible and compact, fanless power supplies ideal it offers extreme flexibility
OEM/ODM available; customized soulution is what we wiling to do
We have tight copperation with FEDEX, UPS, TNT,DHL, EMS
Protections: Short circuit / Overload / Over voltage
High efficiency and low operation temperature
Serivices of Logo OEM printing on the labels
Cooling by free air convection
Output Ripple Noise: 100MV
100% full load burn-in test
