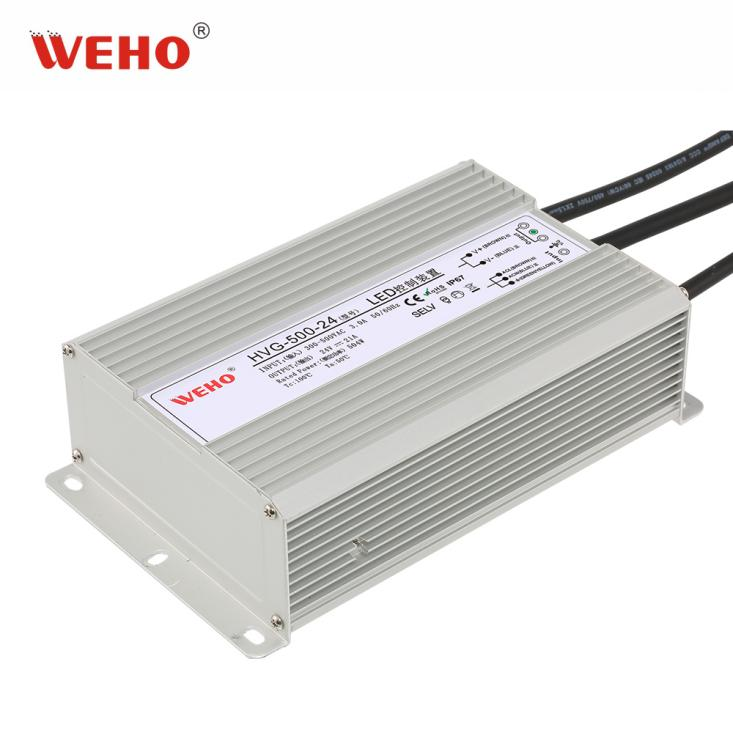

HVG 500W 300~500VAC AC to DC Waterproof Power Supply
HVG-500 series is a 500W single-output waterproof power supply with a 20512056mm design. Adopting the wide range 300-500VAC input, the entire series provides an output voltage line of 24V, 36V, 48V, and 60V. In addition to the high efficiency of up to 94.5%, the robust casing enhances reliability, and the whole series operates from -30°C through 60°C.
If you have any questions, please do not hesitate to contact us at Email: [email protected]
- Description
General Specification
| Model | HVG-500-24 | HVG-500-36 | HVG-500-48 | HVG-500-60 |
| DC output voltage¤t | 24V 0~21A | 36V 0~14A | 48V 0~10.5A | 60V 0~8.5A |
| Ripple &noise | 300mVp-p | 300mVp-p | 350mVp-p | 400mVp-p |
| Voltage accuracy | ±2% | ±1.5% | ±1.5% | ±1.5% |
| Line regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Start-up,rise,hold-up time | 200ms,30ms,24ms/380VAC At full load | |||
| Input voltage range | 300~500VAC | |||
| Frequency range | 47~63Hz | |||
| AC input current | 3A/380VAC | |||
| Power factor | 0.5~0.78 | |||
| Efficiency | 92% | 92.5% | 93.5% | 94.5% |
| Inrush current | Cold Start Inrush Current 30A/380VAC | |||
| Leakage current | <1mA/380VAC | |||
| Overcurrent protection | Current triggers overcurrent limitation,which can automatically recover after abnormal conditions are removed | |||
| Short circuit protection | Protection method:Isolation mode,can automatically restore normal output after removing abnormal conditions | |||
| Overvoltage protection | Over-voitage protection activates at 115%~135%of rated output voltage. Protecion mode: hiccup mode;auto-recovery after fault condition is removed | |||
| Over-temperature protection | 105℃±5℃ Protection method:Turn off the output voltage and automatically restore normal output after the temperature drops | |||
| Operating temperature &humidity | -30℃~+60℃ 20%~90%RH, no condensation | |||
| Storage temperature &humidity | -40℃~+85℃;10%~95%RH No condensation | |||
| Withstand voltage | Input/output space(V/P~O/P):1.5KVAC input to ground(I/P~FG):1.5KVAC output to ground(O/P~FG):0.5KVAC | |||
| Insulation resistance | Input/output(VP~O/P),input to ground(i/P~FG),output to ground(O/P~FG):100M Ohms/500VDC/25℃/70%RH | |||
| Dimensions | 205×120×56mm (L*W*H) | |||
| Packaging | 2.05kg/10pcs/21.5kg/0.033m³ | |||
