Waterproof IP67 LED driver AC 110v/220v to constant DC output 100W power supply

LPV-100 series from WeHo are single-output power supplies designed specifically for LED lighting or LED-related applications.

With fully encapsulated IP67 protection the LPV unit can be used with indoor or outdoor projects such as outdoor signage or street lighting.

Metal case enclosure makes the LPV series a highly reliant and durable power supply that is highly efficient and long-lasting.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model LPV-100-12 LPV-100-15 LPV-100-24 LPV-100-48
DC Output Voltage 12V 15V 24V 48V
Rated Output Current 8.5A 6.6A 4.5A 2.1A
Output Current Rage 0~8.5A 0~6.6A 0~4.5A 0~2.1A
Rated Power 102W 99W 108W 100.8W
Wave And Noise 100mVp-p 150mVp-p 150mVp-p 150mVp-p
Efficiency 81.00% 83.00% 83.00% 84.00%
AC Input Voltage Range AC85~264V 47~63Hz; 254~373VDC
Input Current 2.2A/115A
AC INnrush Current Cold-start 30A/230V
Overload Protection 105%~150% Protection type: Hiccup mode,
Recovers automatically after the condition recovered
Protection Protection type: Shut down o/p voltage, re-power on to recover
Setup Rise Time 100ms, 60ms/230VAC at full load
Withstand Voltage I/P-O/P: 1.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/ 500VDC /25°C/70%RH
Working Temperature -10~ +50

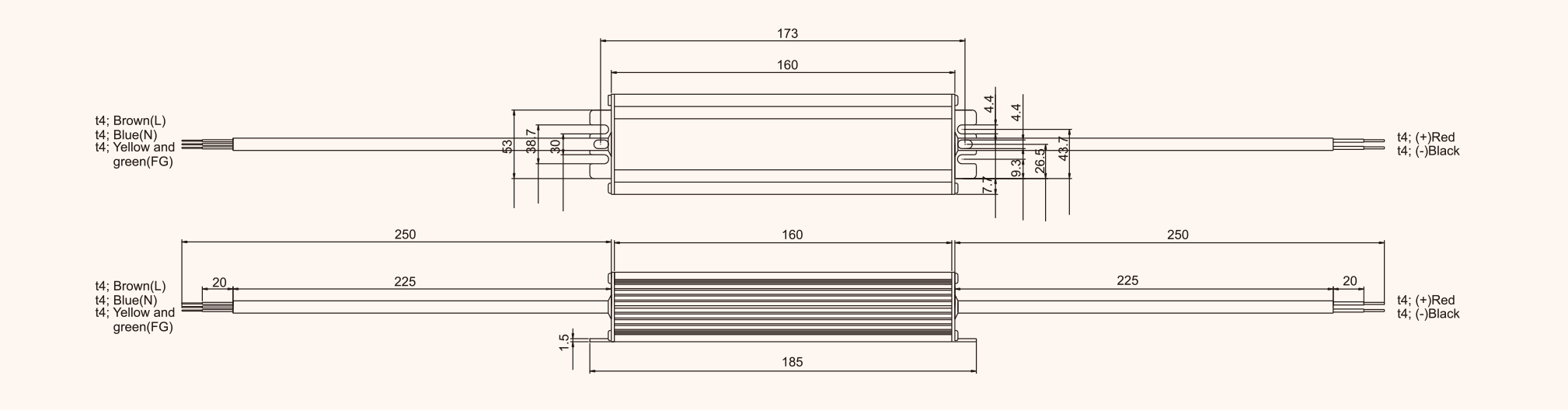

Overall Dimension 185*69*43mm
EMC Standards Meet EN55022, EN61000-3-2, EN61000-3-3, EN55024 GB9254 Class B
Weight 0.9Kgs

Our products have a long lifespan, are highly reliable, and are very efficient.

This product has a full range input voltage of 85-264VAC.

This product is fully encapsulated to IP67.

The product has completed the 100% full load aging test.

This product is designed for constant voltage.
