MS series mini 5V/12V/24VDC output 150w switching power supply

WeHo’s MS-150 series Power supply is a mini type enclosed power supply which serves as a high price-to-performance power supply solution for various industrial applications.

In addition to the high efficiency up to 80%,the design of metallic mesh case enhances the heat dissipation of MS that the whole series operates from -10℃ through 50℃ under air convection without a fan.

White cap over the connectors for security setting of dust-proof protection for electrical shock

And we make transformers and power inductors by pure coppers all by ourselves,

weho Stocks each month: common models 150000 sets, quick delivery;

Cooling by free air convection

Output Ripple Noise: 100MV

100% full load burn-in test

Power matching: 80%-85%

Voltage Adjustment: ±10%

Size: 159*98*38mm (L * W * H)

SPEC MODEL MS-150-12 MS-150-15 MS-150-24 MS-150-27 MS-150-48 MS-150-36
Output DC Voltage 12V 15V 24V 27V 48V 36V
Rated current 12.5A 10A 6.25A 5.5A 3.2A 4.17A
Current range 0-12.5A 0-10A 0-6.25A 0-5.5A 0-3.2A 0-4.17A
DC power 150W 150W 150W 150W 150W 150W
Voltage ADJ.range ±10% ±10% ±10% ±10% ±10% ±10%
Voltage tolerance ±1% ±1% ±1% ±1% ±1%
Ripple and noise 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p
Intet stability ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load stability ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Intput AC voltage range 90~132VAC/180~264VAC 47~63Hz ; 254~370VDC
Current 15A/115V 30A/230V
Efficiency 83% 84% 86% 86% 86% 86%
AC Inrush current Cold-start current 18A/115V 36A/230V
Leakage current < 1mA/240VAC
Protection Overload 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
Over voltage 13.8~16.2V 27.6~32.4V 55.2~64.81
200ms,50ms,20ms
Safety Setup,rise, 200ms,50ms,20ms
hold up time
Vibration 10~500Hz,2G 10min,/1 cycle
Withstand voltage Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc
Isolation resistance Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
W T Temperature ±0.03%/°C (0~50°C )
coeffi cient
Working -10°C ~+50°C,20%~90%RH
temperature
and humidity
Store temperature -20°C ~+85°C,10%~95%RH
 and humidity

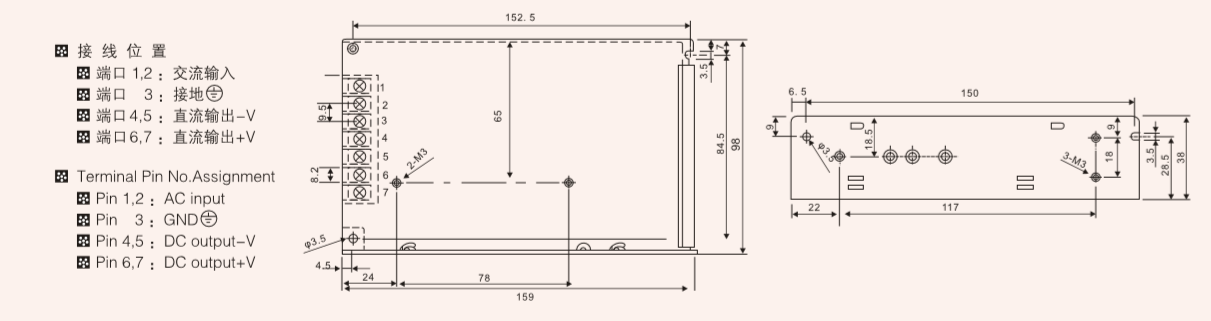

Overall dimension 159×98×38mm  30PCS/CARTON
Other Weight 0.55Kg
