| Model | T-60A | T-60B | T-60C | ||||||
| CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | |
| DC Output Voltage | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V |
| Output Voltage Range(Note:2) | ±2% | ±6% | ±8% | ±2% | ±6% | ±8% | ±2% | ±6% | ±8% |
| Rated Output Current | 5A | 2.5A | 0.5A | 5A | 2.5A | 0.5A | 5A | 2A | 0.5A |
| Output Current Range | 0.5-7A | 0.2-3.5A | 0-0.1A | 0.5-7A | 0.2-3.5A | 0-1A | 0.5-7A | 0.2-3A | 0-0.1A |
| Wave And Noise(Note:3) | 100mVp-p | 120mVp-p | 100mVp-p | 100mVp-p | 120mVp-p | 120mVp-p | 100mVp-p | 120mVp-p | 120mVp-p |
| Inlet Stability(Note:4) | ±0.5% | ±1% | ±1% | ±0.5% | ±1% | ±1% | ±0.5% | ±1% | ±1% |
| Load Stability(Note:5) | ±0.5% | ±4% | ±6% | ±0.5% | ±4% | ±6% | ±0.5% | ±4% | ±4% |
| DC Output Power | 57.5W | 61W | 62.5W | ||||||
| Efficiency | 72% | 72% | 72% | ||||||
| Adjustable Range For DC Voltage | CH1; +10, -5% | CH1; +10, -5% | CH1; +10, -5% | ||||||
| Input Current | 2A/115V 1A/230V | ||||||||
| AC Inrush Current | Cold-start current 30A/115V 60A/230V | ||||||||
| Leakage Current | <1mA/240VAC | ||||||||
| Overload Protection | 105%~150% Type: pulsing hiccup shutdown Reset: auto-recovery | ||||||||
| Over-Voltage Protection | CH1: 5.75~6.75V | ||||||||
| Temperature Coefficient | ±0.03%/°c(0~50°c)ON+5V | ||||||||
| Setup, Rise, Hold Up Time | 1.6ms, 50ms, 16ms/115VAC 800ms, 50ms, 60ms/230VAC |
||||||||
| Vibration | 10~500Hz, 2G 10min/1cycle, Period for 60min, Each axes | ||||||||
| Withstand Voltage | Input and output internal: Input and enclosure: 1.5KvAC Output and enclosure: 0.5KvAC |
||||||||
| Isolation Resistance | Input and output internal: Input and enclosure, Output and enclosure: 500VDC/100MΩ |
||||||||
| Working Temperature And Humidity | -10°c ~ +60°c(Refer to output derating curve), 20%~90%RH | ||||||||

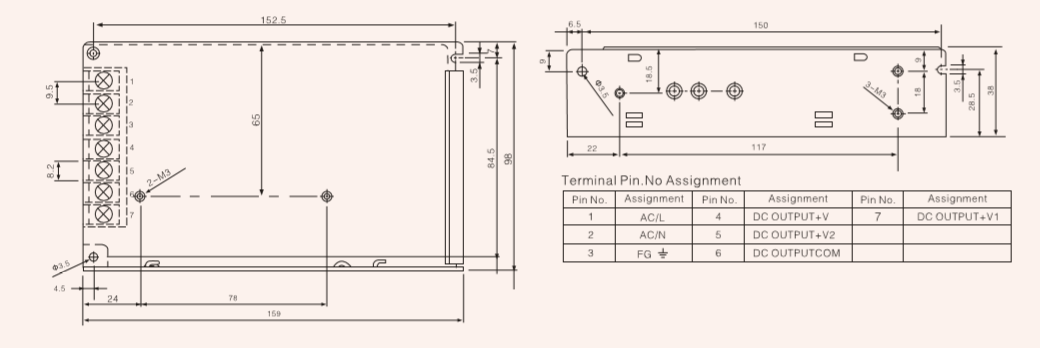

| Overall Dimension | 159×97×38mm | ||||||||
| Weight | 0.56Kgs | ||||||||
| Safety Standards | CSA international mark approved (CSA950, UL 1950, IEC950, EN60950) | ||||||||
| EMC Standards | CISPR22(EN55022), IEC801-2, -3, -4, IEC555-2 Verification | ||||||||
Original WEHO 60W Triple output 5v 12v 24v switching power supply
WeHo’s T-60 Series is an AC/DC multi-output Power supply that standard models offer the most cost-effective option when multiple voltages are required.
Input Voltage of T-60: 85-264 AC Full range.
T-60 is a reliable switching power supply with high-quality material, durable, and safe to use.
If you have any questions, please do not hesitate to contact us at Email: [email protected].
- Description
Withstand voltage: Input and output internal: Input and enclosure: 1.5KvAC, Output, and enclosure: 0.5KvAC.
Product setup, rise, hold time: 1.6ms, 50ms, 16ms/115VAC 800ms, 50ms, 60ms/230VAC.
This product is ideal for a number of LED lighting and mobile signage purposes.
This product meets global LED lighting safety standards.
The product’s operating temperature range is -10’C ~ +50’C.
Our partners can cooperate with us in OEM or ODM.
Leakage current of this product: <1mA/240VAC.
This product has a protection level of IP20.
