SP-6000 High Power Switching Power Supply
SP-6000 is a 6KW single output chassis type AC to DC power supply.
Built-in multiple functions such as output voltage,Current adjustable, current sharing, remote on/off control, 485 communication control, auxiliary power supply and other functions provide a variety of flexible designs.Can be used in industrial control or automation devices, laser-related machines, UV curing equipment, charging equipment, test and measurement instruments, and aging equipment.If you have any questions, please do not hesitate to contact us atEmail: [email protected]
- Description Company
Features
1、Voltage input range: 95-265VAC
2、Protection type: short circuit/overcurrent/overvoltage/overtemperature
3、Power factor PF≧0.99
4、Working efficiency up to 93%
5、485 communication control
Technical Parameters
| Model | SP-6000-24 | SP-6000-36 | SP-6000-48 | SP-6000-60 | SP-6000-110 | SP-6000-220 | |
| Output | DC voltage | 24V | 36V | 48V | 60V | 110V | 220V |
| Rated current | 250A | 166.6A | 125A | 100A | 54.5A | 27.2A | |
| Current range | 0 – 250A | 0 – 166.6A | 0 – 125A | 0 – 100A | 0 – 54.5A | 0 – 27.2A | |
| Rated Power | 6000W | ||||||
| Ripple | 500mV | 500mV | 600mV | 600mV | 1000mV | 1500mV | |
| Constant current optimum range | 12 – 24V | 18 – 36V | 24 – 48V | 30 – 60V | 55 – 110V | 110 – 220V | |
| Rated voltage accuracy | ± 1.0% | ||||||
| Line Regulation | ± 1.0% | ||||||
| Load Regulation | ± 1.0% | ||||||
| Startup & Rise Time | 1500mS，700mS/230VAC(Fully loaded） | ||||||
| Input | Voltage range | 95-190VAC(Output Current 50%),195-265VAC(Output Current 100%) | |||||
| Frequency range | 45Hz – 65Hz | ||||||
| Power Factor | PF≧0.99/230VAC(Fully loaded) | ||||||
| Efficiency(MAX) | 90 % | 91.5 % | 92 % | 92 % | 92.5 % | 93 % | |
| Ac Current | ＜56A | ||||||
| Leakage Current | ＜3.0mA / 240VAC | ||||||
| Protect | Short Circuit | When the constant current is entered and the voltage is lower than 10% of the rated voltage, the output is shut down and locked after 1 second, and recovers after restarting. | |||||
| Overcurrent | The user can set the over-current value to delay the output for 5 seconds and then shut down the output, and then resume after restarting. | ||||||
| Overpressure | Users can set the overvoltage value to shut down the output voltage, and restore after restart | ||||||
| Over temperature | Shut down the output, automatically recover or restart after the temperature drops | ||||||
| Function | Output voltage adjustment | 0 – 26.4V | 0 – 39.6V | 0 – 52.8V | 0 – 66V | 0 – 121V | 0 – 242V |
| Output constant current adjustment | 0 – 250A | 0 – 166.6A | 0 – 125A | 0 – 100A | 0 – 54.5A | 0 – 27.2A | |
| 485 Communications | MODBUS Communication Protocol | ||||||
| Isolated auxiliary power supply | 12V 0.5A (Need customization) | ||||||
| Output remote switch | Default power on, high level power off （5V-12V） (Need customization) | ||||||
| Alarm signal output | Power Good Signal (Dry Contact≦ 36V,0.1A)(Need customization) | ||||||
| Environment | Operating temperature | -20 – +60℃ | |||||
| Operating humidity | -20 – 90% RH No condensation | ||||||
| Storage temperature and humidity | -40 – +85℃, 10 – 95% RH No condensation | ||||||
| Vibration resistance | 10 – 500Hz, 2G 10 Min/Cycle, X、Y、Z 60 Min | ||||||
| Safety Regulations | Insulation resistance | Input to Output:100Mhms/500VDC/25℃/70%RH | |||||
| Pressure resistance | I/P-O/P :2KVAC I/P-FG :2KVAC O/P-FG :0.5KVAC | ||||||
| Other | Size | 432*179*242mm（L*W*H） | |||||
| Net Weight | 9 KG | ||||||
| Remark | 1. All parameters are measured at 230VAC input voltage, rated load and 25℃ unless otherwise specified. 2. Ripple and noise voltage are measured with a 20MHz bandwidth oscilloscope with 0.1μ and 47μ capacitors added to the end of a 12-inch twisted pair, and measured at 20MHZ bandwidth. 3. Accuracy: includes setting error, linear regulation rate and load regulation rate. 4. Output must be derated for low input voltage conditions, please refer to the static characteristic curve for details. 5. Startup time is measured under cold start, and frequent switching may increase the startup time. | ||||||

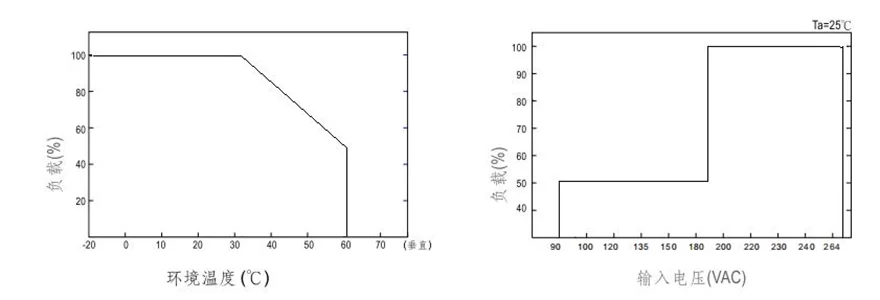

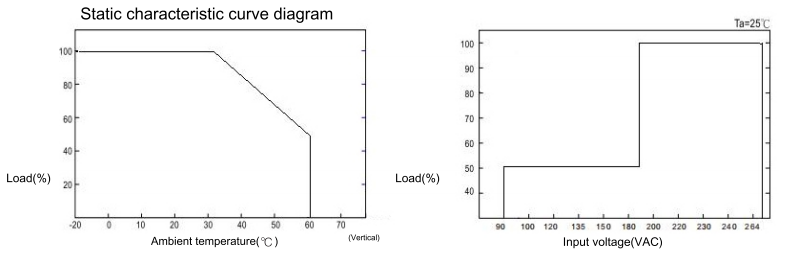

Static characteristic curve
FAQs
Q1. What type of project suits a 6,000W SP-series unit?
High-power loads such as industrial equipment, testing racks, stage systems, large LED screens and battery-related systems fall within this class. The load profile should be verified against the datasheet.
Q2. Does the SP-6000 include power factor correction?
The SP series is listed with PFC (power factor correction), which improves input power quality and reduces reactive load on the supply side.
Q3. What input specification applies to the SP series?
The series is listed with 90–132VAC/180–264VAC input and 120–370VDC compatibility. The SP-6000 datasheet confirms the exact range for this model.
Q4. How does the SP series handle heat at high power?
Models above 200W use a built-in fan for heat dissipation. Adequate airflow around the unit is part of the installation requirement.
Q5. Are larger SP models available if capacity needs grow?
The series continues from SP-3000 through SP-9000, SP-12000, SP-15000 and SP-18000, so one platform can scale with project requirements.
