Waterproof IP67 LED driver AC 110v/220v to constant DC output 60W power supply

LPV-60 is a fantastic AC-to-DC converter for delivering constant voltage in wet and dusty environments.

This 20-100W LED power supply operates off-line voltage (90-264VAC) and delivers constant voltages from 5-48VDC depending on your selection.

The 20 to 60 Watt models qualify as Class 2 power units offered in a slim, butter stick design.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model LPV-60-12 LPV-60-15 LPV-60-24 LPV-60-48
DC Output Voltage 12V 15V 24V 48V
Rated Output Current 5A 4A 2.5A 1.3A
Output Current Rage 0~5A 0~4A 0~2.5A 0~1.3A
Rated  Power 60W 60W 60W 62.4W
Wave And Noise 100mVp-p 150mVp-p 150mVp-p 150mVp-p
Efficiency 81.00% 83.00% 83.00% 84.00%
AC Input Voltage Range AC85~264V 47~63Hz; 254~373VDC
Input Current 1.6A/115V
AC INnrush Current Cold-start 30A/230V
Overload Protection 105%~150% Protection type: Hiccup mode, recovers automatically after the condition recovered
Protection type: Shut down o/p voltage, re-power on to recover
Setup Rise Time 500ms, 20ms/230VAC 500ms, 20ms/115VAC at full load
Hold Up Time 24ms/230VAC, 24ms/115VAC at full load
Withstand Voltage I/P-O/P: 1.5KVAC
Isolation Resistance  I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/ 500VDC /25°C/70%RH
Working Temperature -10°C ~ +50°C

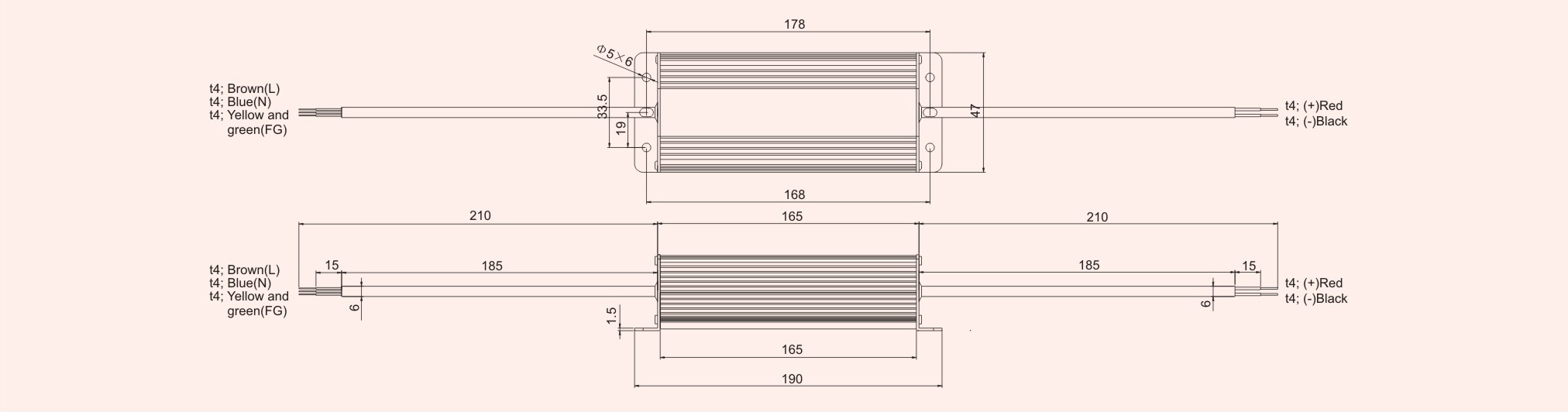

Overall Dimension 190*48*38mm
EMC Standards Meet EN55022, EN61000-3-2, EN61000-3-3, EN55024 GB9254 Class B
Weight 0.78Kgs

Our products have CE ROHS certification to ensure quality.

This product is suitable for LED-related lamps or appliances.

This product is fully encapsulated to IP67.

This product has a universal AC input that is full range.

The product has completed the 100% full load aging test.
