Waterproof IP67 LED driver AC 110v/220v to constant DC output 30W power supply

LPV-30 is a dedicated LED driving device that delivers a constant current/voltage or generates an adjustable current controlled by an external dimmer to LEDs.

Depending on its types or design concept, some of them not only have PFC capability but also can be located in harsh environments such as dusty, humid places.

LED power supplies include metal cases, plastic cases, and PCB types.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model LPV-30-12 LPV-30-24
DC Output Voltage 12V 24V
Output Voltage Error ±1% ±1%
Rated Output Current 2.5A 1.25
Output Current Range 0-3A 0-1.5A
Wave And Noise 100mVp-p 100mVp-p
Inlet Stability ±0.5% ±0.5%
Load Stability ±0.5% ±0.5%
DC Output Power 30W 30W
Efficiency 86% 87%
AC Input Voltage Range 85-264VAC
Input Current 0.5A/115V 0.25A/230V
AC Impulse Current Cold-start current 13A/115V 26A/230V
Leakage Current <0.5mA/240VAC
Over Load Protection 105%~150% rated output power
Protection: Hiccup mode
Over Voltage Protection 13~16V 28~32V
Protection: Shut down the output voltage
Short Circuit Protection Protection: Hiccup mode
Temperature Coefficient ±0.03%(050)
Setup Rise Hold-Up Time 200ms, 100ms, 30ms
Vibration 10~500Hz, 2G 10min./1cycle, Period for 60min, Each axes
Withstand Voltage I/P-O/P: 2.5KVAC
Isolation Resistance I/P-O/P: 100M Ohms / 500VDC / 25 / 65% RH
Working Temperature And Humidity -10°C ~ +60°C, 20%~90%RH
Store Temperature And Humidity -20°C ~ +85°C, 10%~95%RH

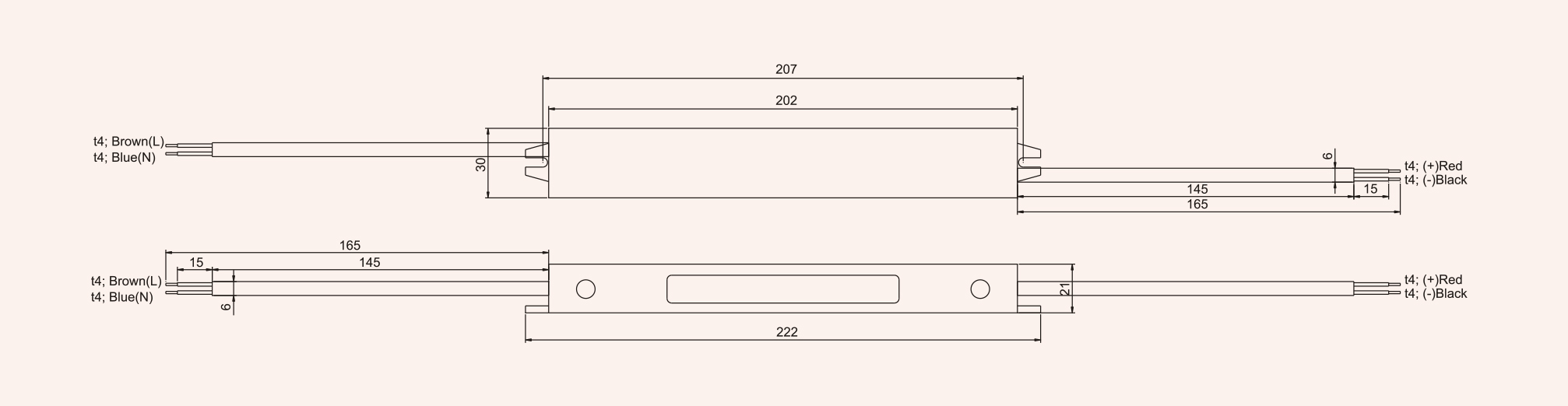

Overall Dimension 220×20×30mm
Weight 0.25Kgs
Safety Standards Design refer to UL1012, EN60950-1, EN61347-1, EN-61347-2 approved
EMC EN55015, EN55022, EN55024, EN61000-2, EN61000-3, EN61547

Our products have a long lifespan, are highly reliable, and are very efficient.

Our products have CE ROHS certification to ensure quality.

This product has a universal AC input that is full range.

This product is designed for constant voltage.

This product is small and compact in size.
