Waterproof IP67 LED driver AC 110v/220v to constant DC output 200W power supply

Specifications&Model

Model	LPV-200-12	LPV-200-15	LPV-200-24	LPV-200-48
DC Output Voltage	12V	15V	24V	48V
Rated Output Current	16.5A	13A	8.3A	4.2A
Output Current Rage	0~16.5A	0~13A	0~8.3A	0~4.2A
Rated  Power	198W	195W	199.2W	201.6W
Wave And Noise	150mVp-p	240mVp-p	240mVp-p	240mVp-p
Efficiency	81.00%	83.00%	83.00%	84.00%
AC Input Voltage Range	AC180~264V 47~63Hz; 254~373VDC
Input Current	2.6A/230V
AC INnrush Current	Cold-start  30A/230V
Overload Protection	105%~150% Protection type: Hiccup mode, recovers automatically after the condition recovered
	Protection type: Shut down o/p voltage, re-power on to recover
Setup Rise Time	1000ms, 30ms/230VAC at full load
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/ 500VDC /25°C/70%RH
Working Temperature	-10°C ~ +50°C
Overall Dimension	245*69*43mm
EMC Standards	Meet EN55022, EN61000-3-2, EN61000-3-3, EN55024 GB9254 Class B
Weight	1.4Kgs

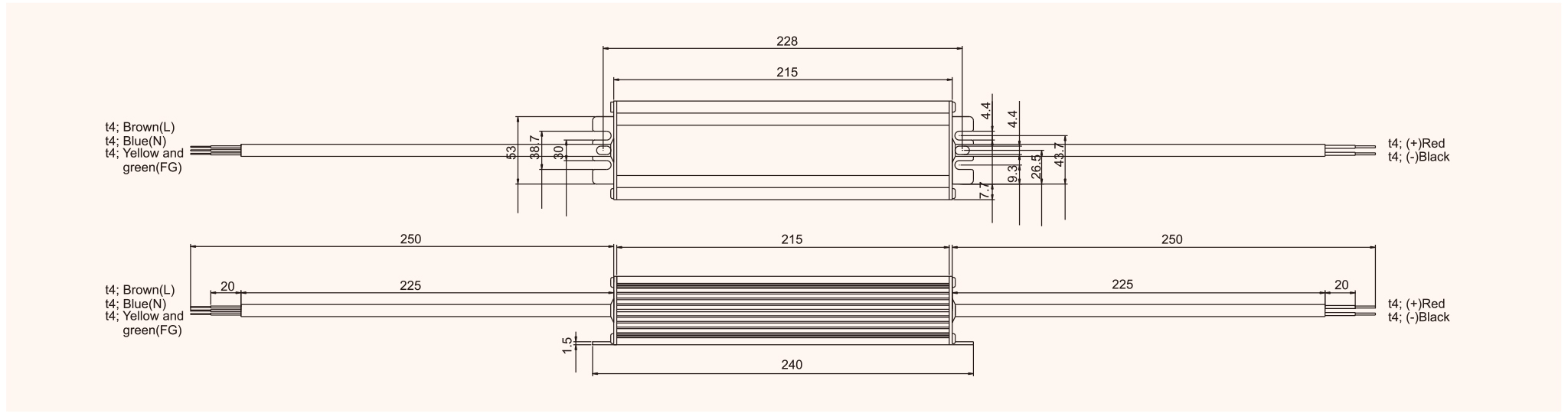

Design

Features

This product is suitable for LED-related lamps or appliances.

This product is fully encapsulated to IP67.

We are 100% responsible for quality.

The product can be cooled by convection of natural air.

This product size is small and compact type.

FAQs

Q1: How do I choose the right LPV-200W LED switching power supply?

Confirm the required DC output voltage and calculate the total wattage of the connected LED load. The total load should remain below the 200W rated capacity, with sufficient power margin for continuous operation. The IP67 enclosure also makes the power supply suitable for installations where moisture and dust protection are required.

Q2: Where can an IP67 waterproof 200W power supply be installed?

An IP67 power supply can be used in outdoor LED lighting, signage, architectural lighting, industrial lighting, and other environments where dust and moisture may be present. Installation should still follow local electrical requirements and avoid conditions beyond the product’s specified operating limits.

Q3: What is the advantage of an IP67 LED power supply?

The IP67 rating provides stronger protection against dust and water exposure than open-frame or IP20 power supplies. This makes the LPV-200W more suitable for outdoor or demanding environments while still providing efficient AC-to-DC power conversion.

Q4: How do I calculate the LED load for a 200W switching power supply?

Add the rated wattage of all LED modules or fixtures connected to the power supply. The total should remain below the power supply’s rated output. Additional margin is recommended to account for startup conditions, temperature, wiring losses, and long-term operation.

Q5: Can the LPV-200W power supply be used outdoors?

Its IP67 enclosure makes it suitable for many outdoor and moisture-prone applications. However, buyers should still consider temperature range, installation position, wiring protection, local electrical regulations, and whether the complete system requires additional enclosure protection.
