Waterproof IP67 LED driver AC 110v/220v to constant DC output 50W power supply

LPV-50 is a dedicated LED driving device that delivers a constant current/voltage or generates an adjustable current controlled by an external dimmer to LEDs.

Depending on its types or design concept, some of them not only have PFC capability but also can be located in harsh environments such as dusty, humid places.

LED power supplies include metal cases, plastic cases, and PCB types.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Download Request A Quote

Description

Specifications&Model

Model		LPV-50-12	LPV-50-24	LPV-50-36
Output	DC Voltage	12V	24V	36V
	Voltage Tolerance	±1%	±1%	±1%
	Rated Current	4.2A	2.1A	1.4A
	Current Range	0~4.2A	0~2.1A	0~1.4A
	Rated Power	50.4W	50.4W	50.4W
	Ripple&Noise	100mvp-p	150mvp-p	180mvp-p
Input	Voltage Range	170~264VAC, 235~373VDC
	Frequency	47~63HZ
	AC Current	0.65A/230VAC
	Efficiency	82%	84%	85%
	Inrush Current	Cold start current 35A/230VAC
	Leakage Current	<1mA/240VAC
Protection	Over Load	Rated output power 115%~150% start overload protection
		Protection type: hiccup mode, auto-recovery after fault condition is removed
	Over Voltage	15.6~17.8V	30.6~33.2V	42.6~44.2V
		Protection type: hiccup mode,auto-recovery after fault condition is removed
	Over Temperature	Shell temp≥85°C, start over temperature protection
		Protection mode: cutoff output,auto-recovery after temperature becomes normal
Environment	Working Temp, Humidity	-10°C ~ +60°C, 20%~90%RH
	Storage Temp, Humidity	-20°C ~ +85°C, 10%~95%RH non condensing
	Withstand Vibration	10~500HZ, 2G 10min/1cycle, period for 60minutes, each axes
Safety	Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Isolated Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC
Fits	Safety Standard	Fit UL1012, IP67 protect level
Standard	EMC Standard	Fit EN55022, CLASS

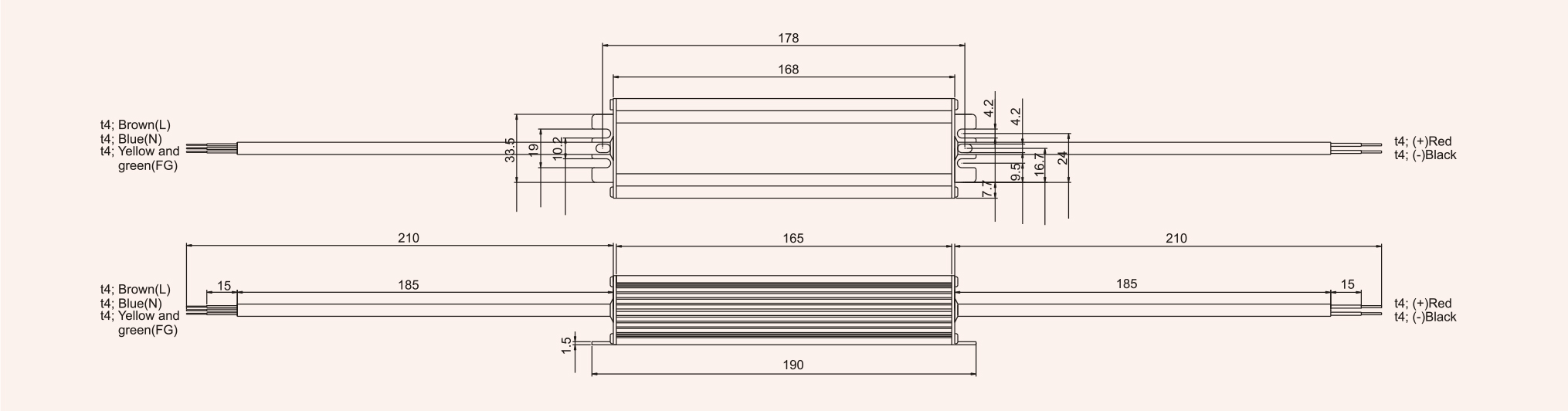

Others	Dimension	1904934mm (LWH)
	Weight/Packing	0.78kg/30pcs/25kg/0.025 m³/0.87CUFT
