Waterproof IP67 LED driver AC 110v/220v to constant DC output 150W power supply

LPV-150 series from WeHo are single-output power supplies designed specifically for LED lighting or LED-related applications.

With fully encapsulated IP67 protection the LPV unit can be used with indoor or outdoor projects such as outdoor signage or street lighting.

Metal case enclosure makes the LPV series a highly reliant and durable power supply that is highly efficient and long-lasting.

If you have any questions, please do not hesitate to contact us at Email: [email protected].

Model LPV-150-12 LPV-150-15 LPV-150-24 LPV-150-48
DC Output Voltage 12V 15V 24V 48V
Rated Output Current 12.5A 10A 6.5A 3.3A
Output Current Rage 0-12.5A 0-10A 0-6.5A 0-3.3A
Rated  Power 150W 150W 156W 158.4W
Wave And Noise 150mVp-p 240mVp-p 240mVp-p 240mVp-p
Efficiency 81.00% 83.00% 83.00% 84.00%
AC Input Voltage Range AC180~264V 47~63Hz; 254~373VDC
Input Current 2.1A/230V
AC INnrush Current Cold-start 30A/230V
Overload Protection 105%~150% Protection type: Hiccup mode, recovers automatically after the condition recovered
Protection type: Shut down o/p voltage, re-power on to recover
Setup Rise Time 1000ms, 30ms/230VAC at full load
Withstand Voltage I/P-O/P: 1.5KVAC
Isolation Resistance  I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/ 500VDC /25°C/70%RH
Working Temperature -10°C~+50°C

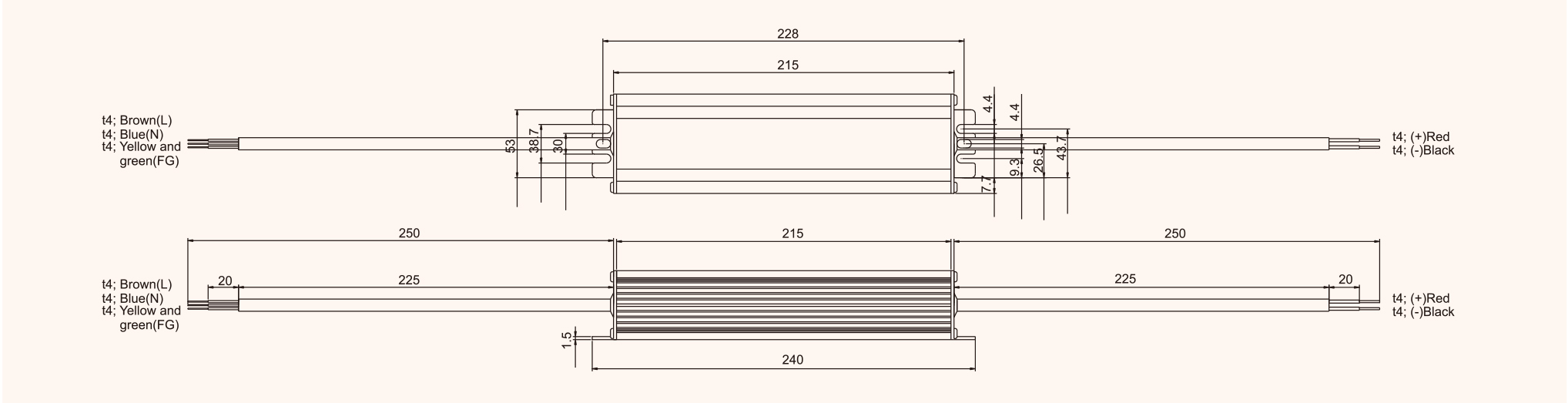

Overall Dimension 245*69*43mm
EMC Standards Meet EN55022, EN61000-3-2, EN61000-3-3, EN55024 GB9254 Class B
Weight 1.4Kgs

This product is fully encapsulated to IP67.

The input voltage of this product is 90-132/180-264VAC.

The product can be cooled by convection of natural air.

This product is both low-cost and reliable.

This product size is small and compact type.
